P2716

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: P2716: Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

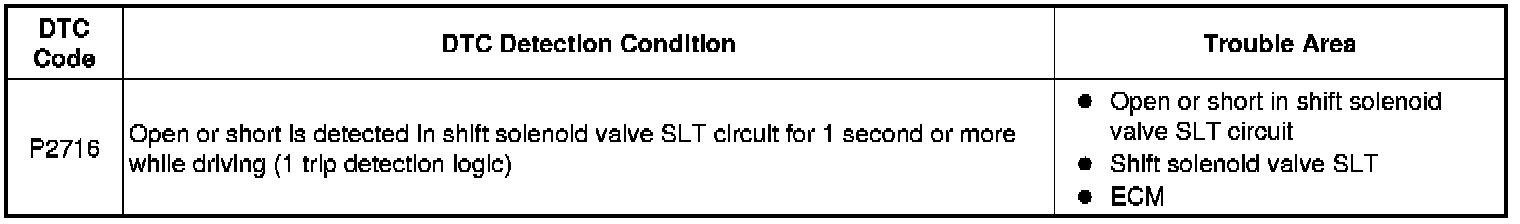

P2716 - Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

DESCRIPTION

Refer to DTC P0894 P0894.

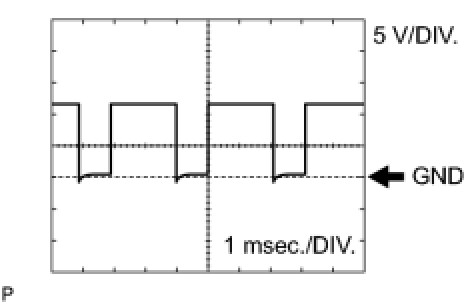

Inspect using an oscilloscope:

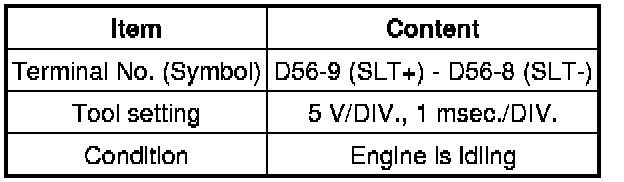

Check the waveform of the ECM connector.





Standard:

Refer to the illustration.





MONITOR DESCRIPTION

When an open or short in the shift solenoid valve SLT circuit is detected, the ECM interprets this as a fault. The ECM will turn on the MIL and store the DTC.

MONITOR STRATEGY

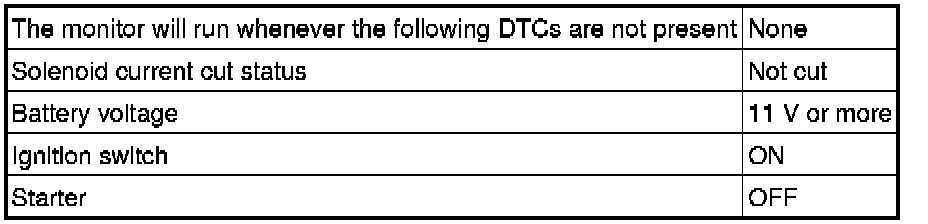

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE

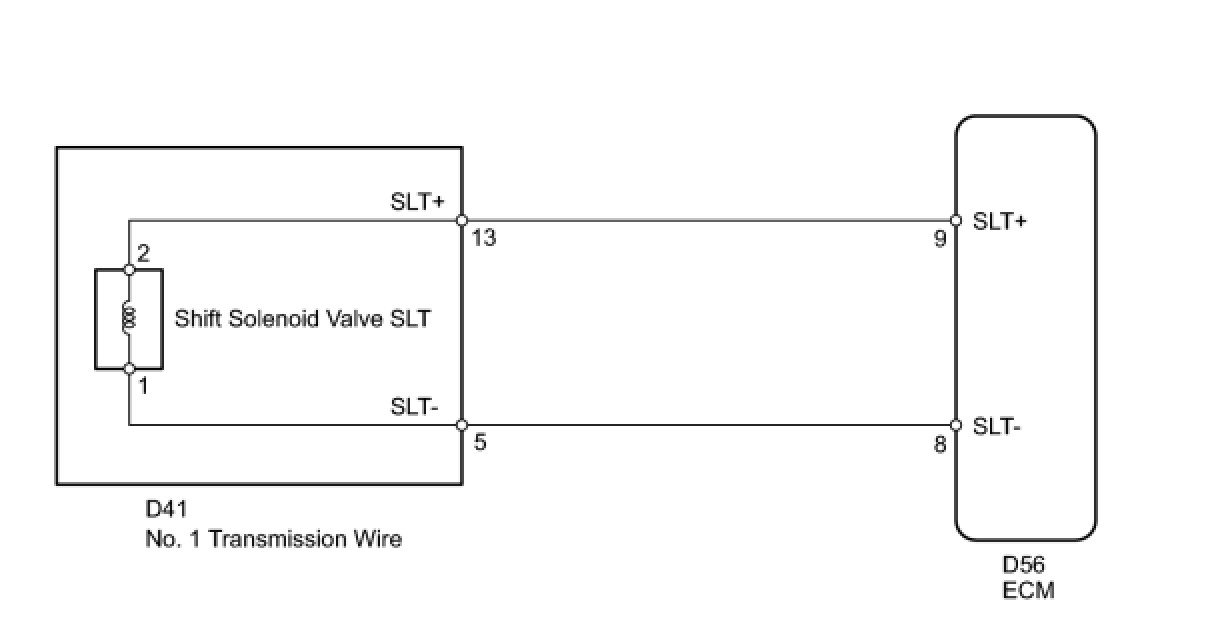

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs DTC Check / Clear.

PROCEDURE

1. INSPECT NO. 1 TRANSMISSION WIRE (SHIFT SOLENOID VALVE SLT)

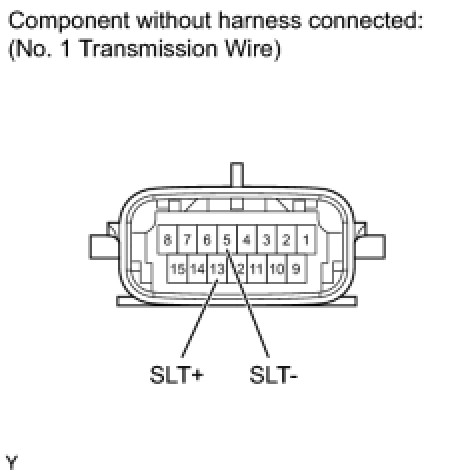

(a) Disconnect the D41 No. 1 transmission wire connector.

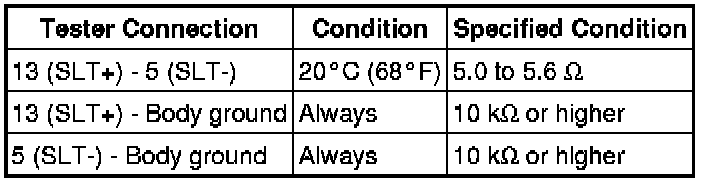

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- INSPECT SHIFT SOLENOID VALVE SLT
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (NO. 1 TRANSMISSION WIRE - ECM)

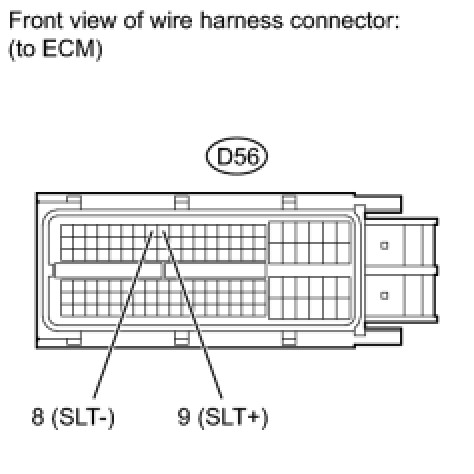

(a) Disconnect the D56 ECM connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

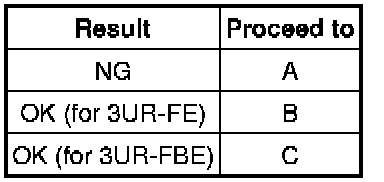

Result





C -- REPLACE ECM Removal

B -- REPLACE ECM Removal

A -- REPAIR OR REPLACE HARNESS OR CONNECTOR

3. INSPECT SHIFT SOLENOID VALVE SLT

(a) Remove the shift solenoid valve SLT.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Connect the battery positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes an operating noise.

NG -- REPLACE SHIFT SOLENOID VALVE SLT

OK -- REPAIR OR REPLACE NO. 1 TRANSMISSION WIRE Removal
