Power Seat Control Module: Locations

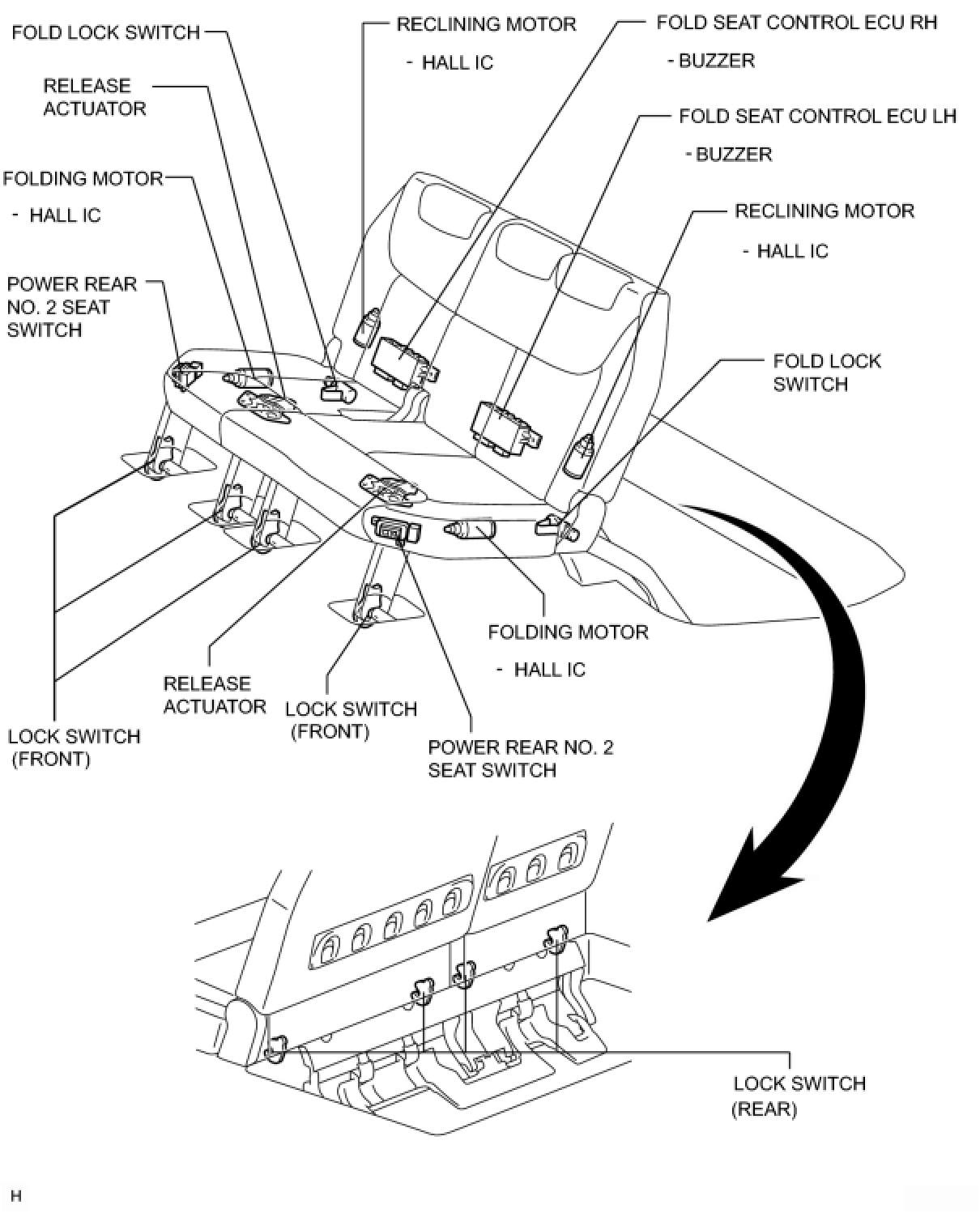

SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Power Stowing Function): PARTS LOCATION

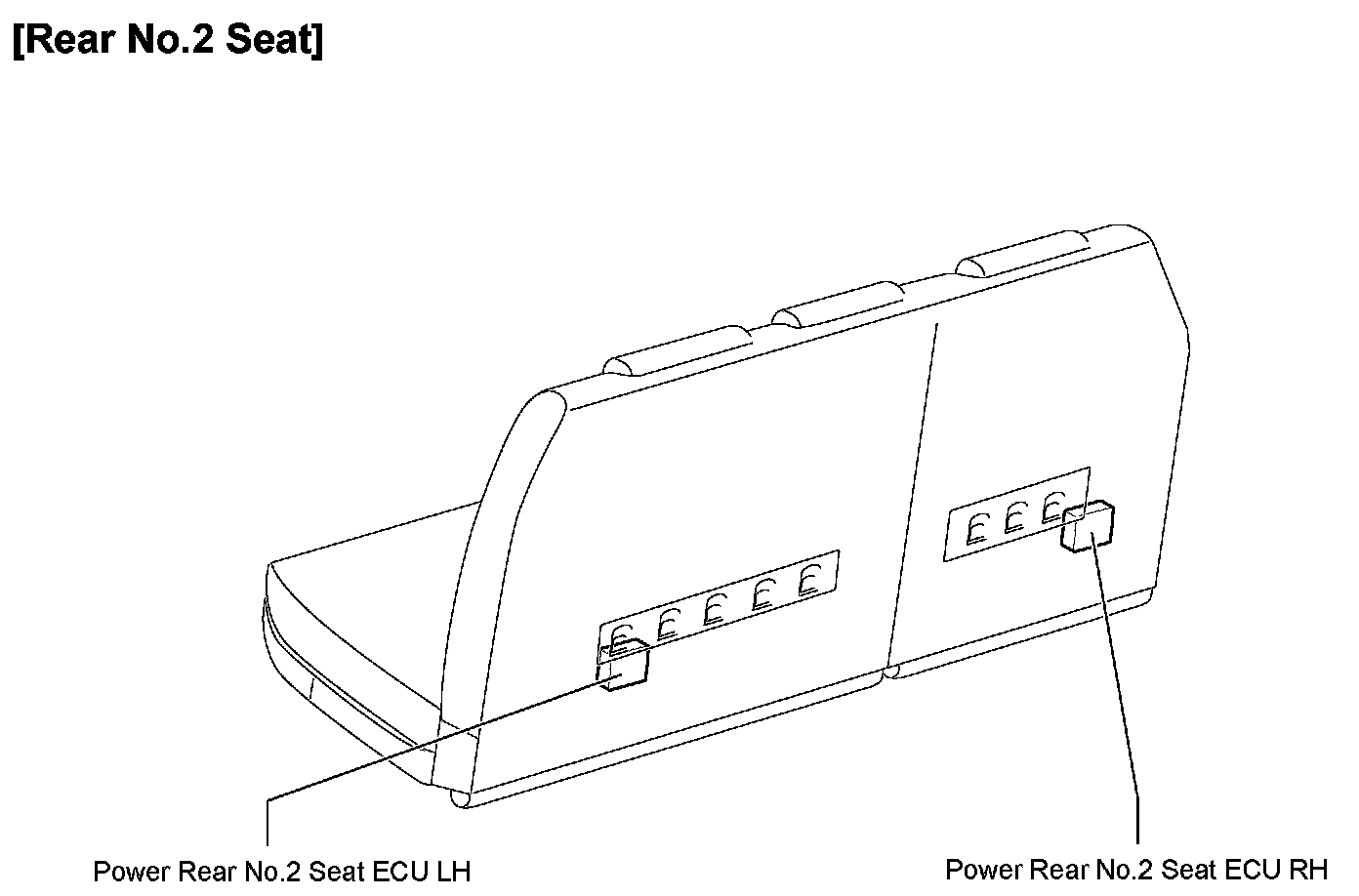

Rear No.2 Seat:
Rear No.2 Seat:
