Washer Signal Circuit

CRUISE CONTROL: DYNAMIC LASER CRUISE CONTROL SYSTEM: Washer Signal Circuit
- Washer Signal Circuit

DESCRIPTION

The distance control ECU detects washer operation. The cruise control will be cancelled by the distance control ECU if the windshield wipers operate in the HI or LO mode. By detecting washer operation, the distance control ECU allows the cruise control to continue even when the windshield wipers operate in the HI or LO mode.

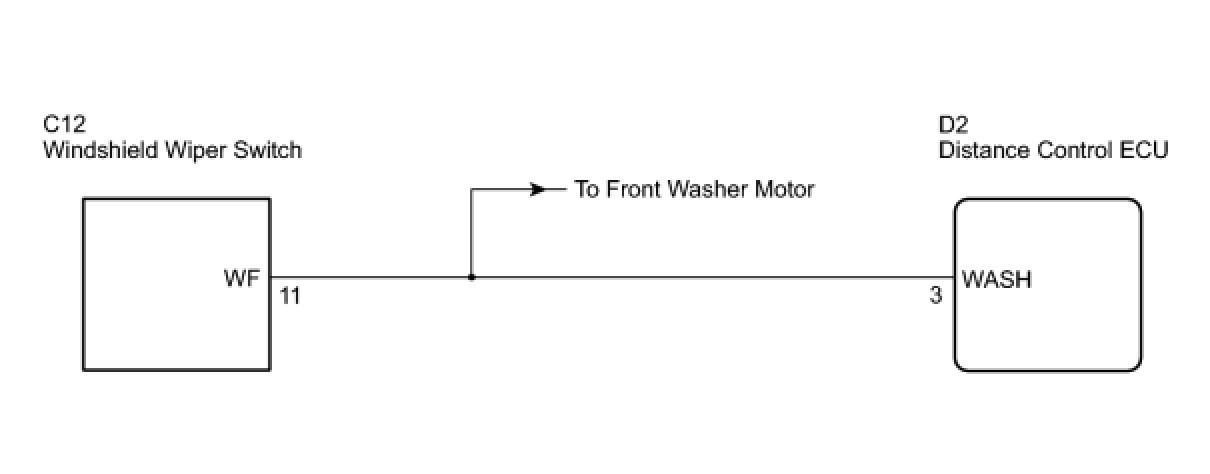

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT WASHER SYSTEM

(a) Check that the front washer operates.

OK:

Washer function is normal.

NG -- GO TO WIPER AND WASHER SYSTEM (Front washer motor does not operate.) Testing and Inspection
OK -- Continue to next step.

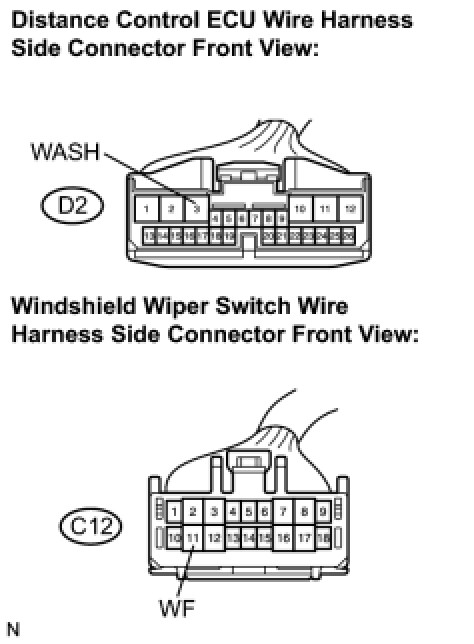

2. CHECK HARNESS AND CONNECTOR (DISTANCE CONTROL ECU - WINDSHIELD WIPER SWITCH)

(a) Disconnect the distance control ECU connector and windshield wiper switch connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Dynamic Laser Cruise Control System
