Dynamic Laser Cruise Control

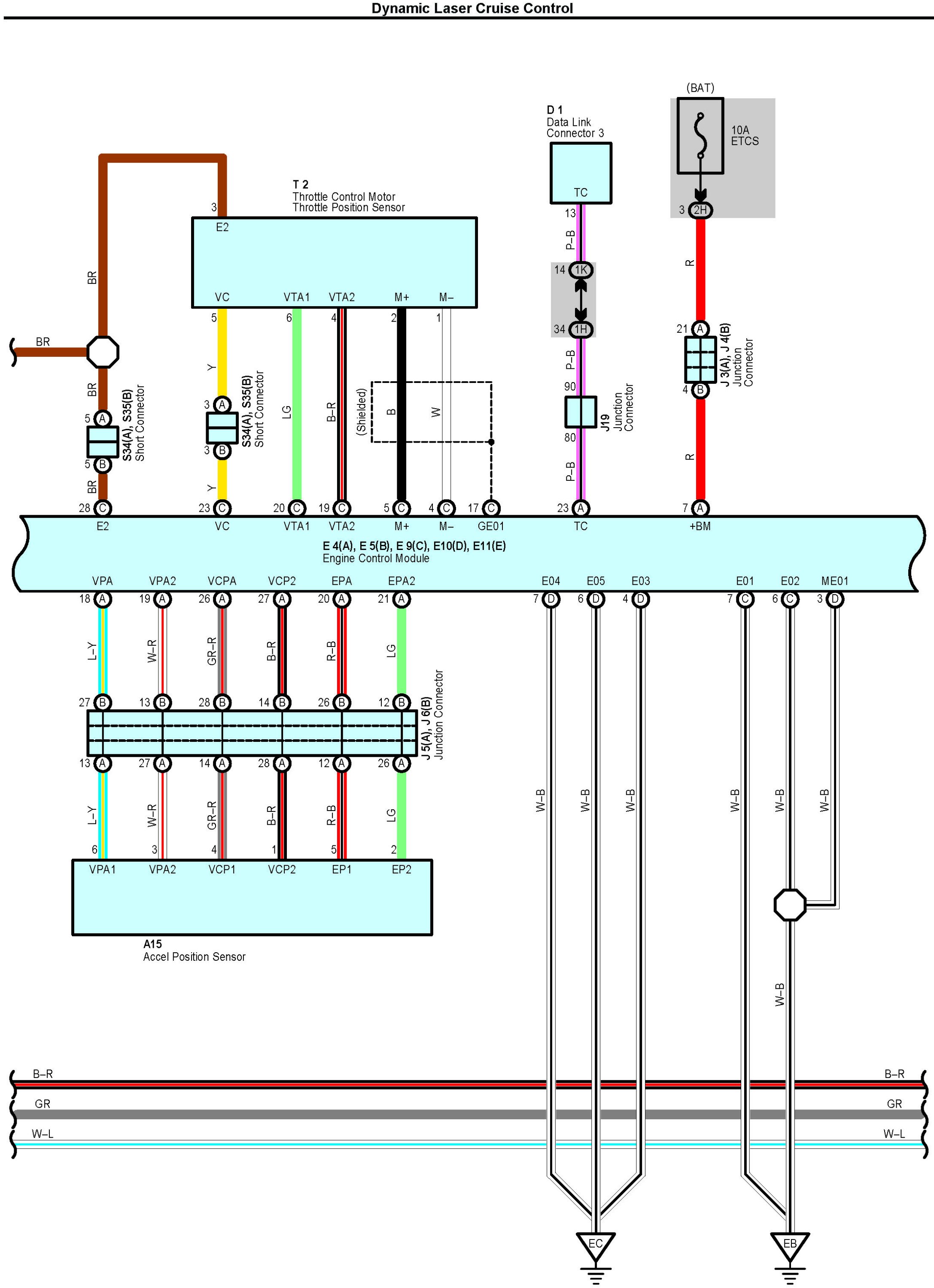

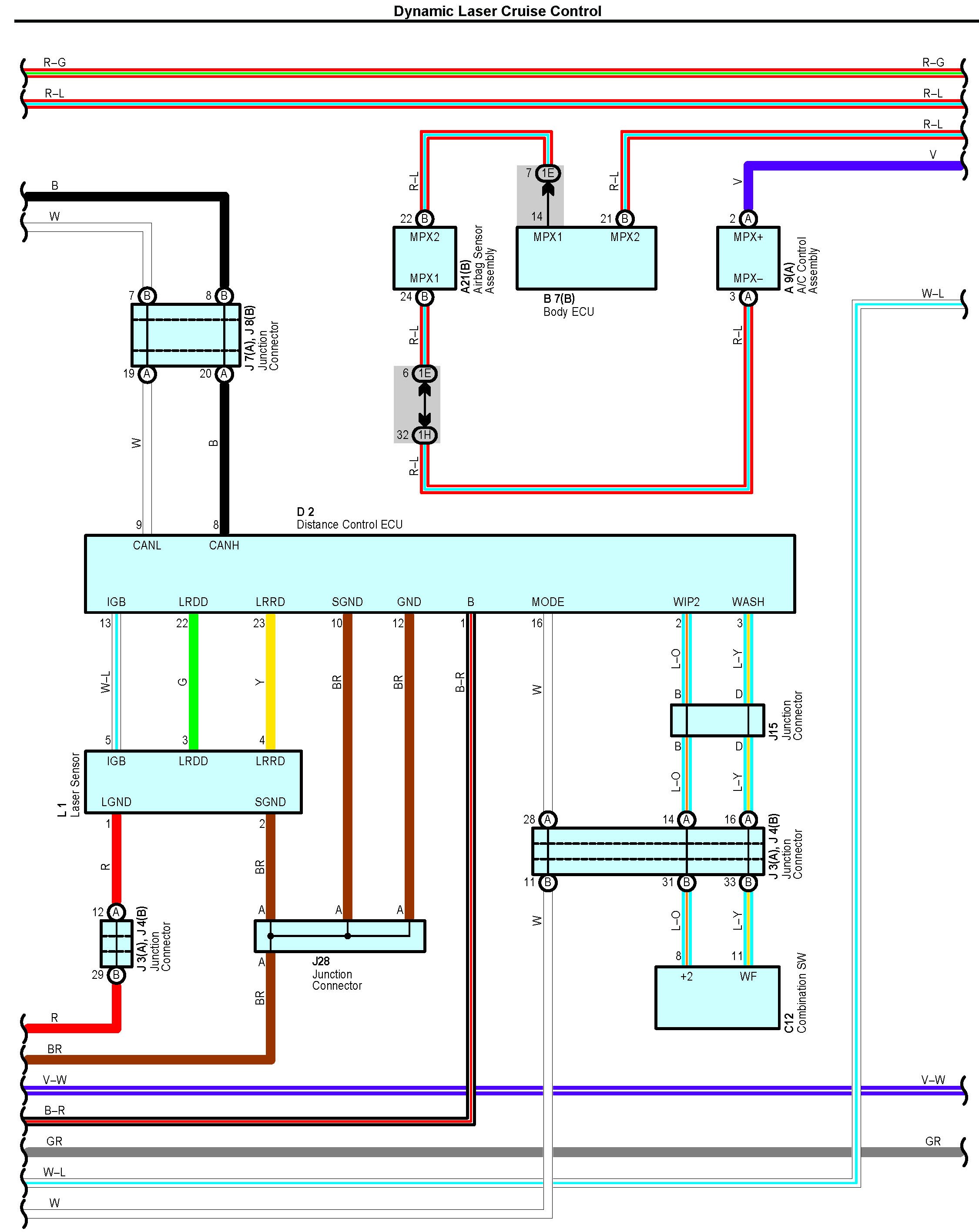

Dynamic Laser Cruise Control Part 1:

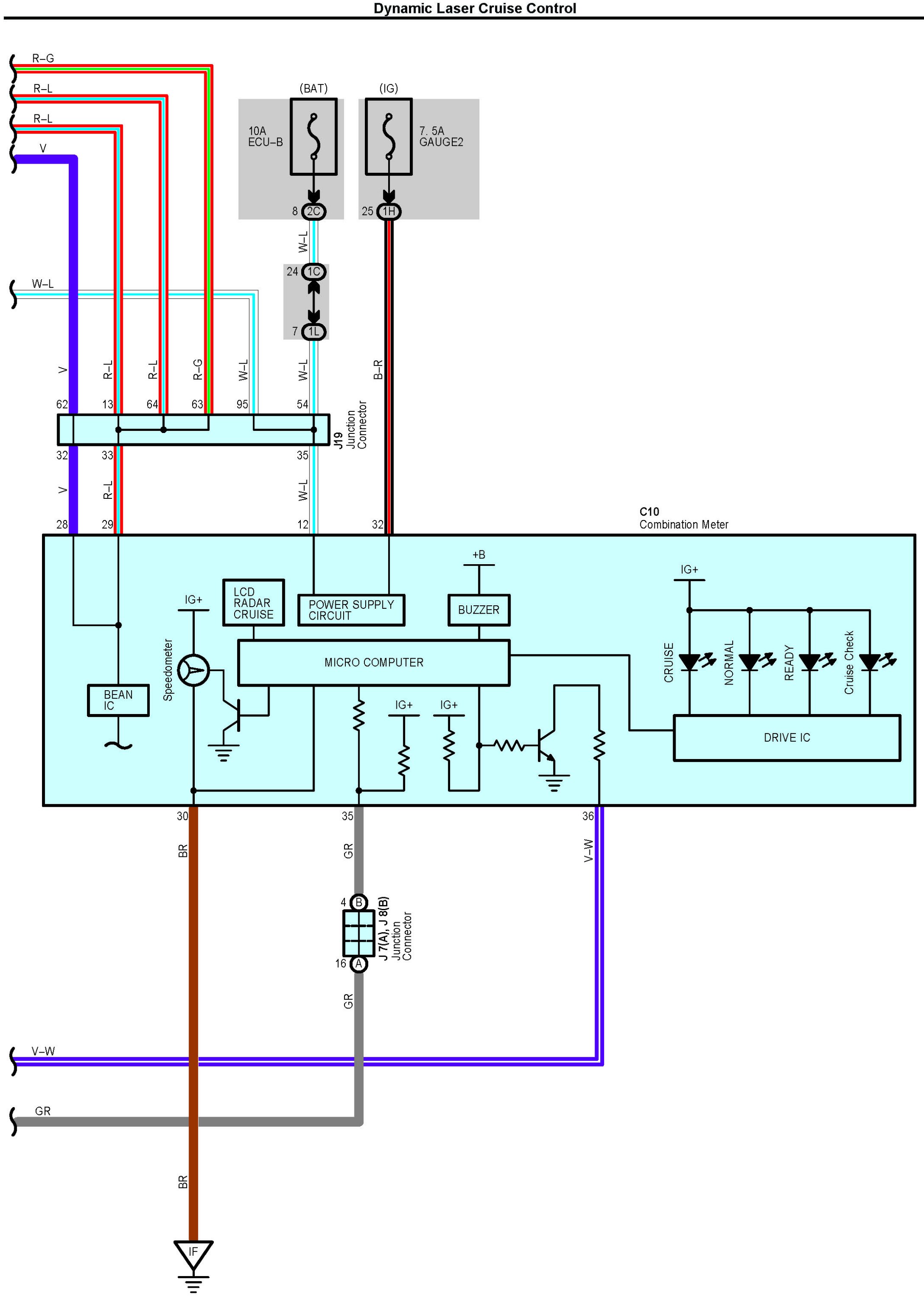

Dynamic Laser Cruise Control Part 2:

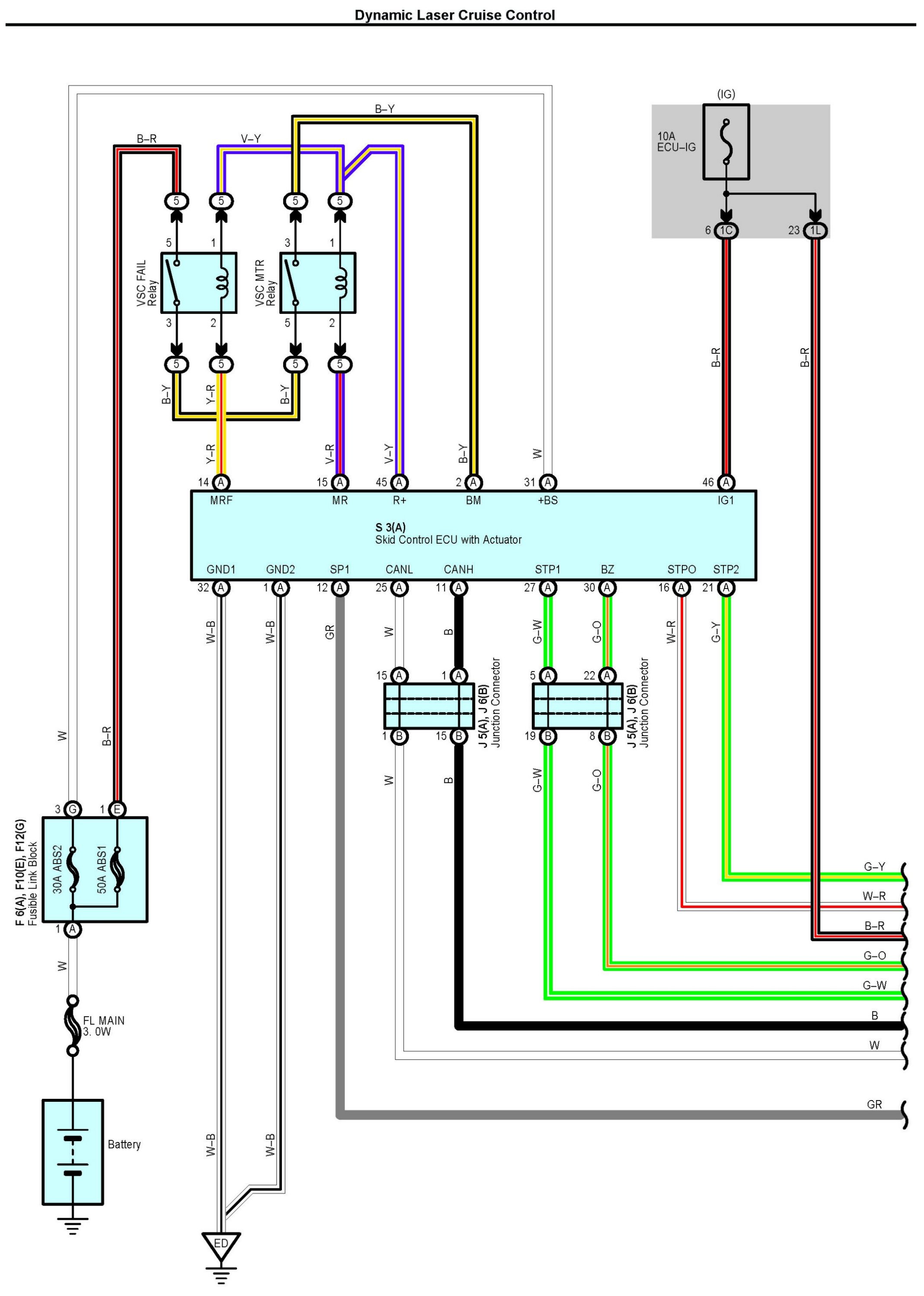

Dynamic Laser Cruise Control Part 3:

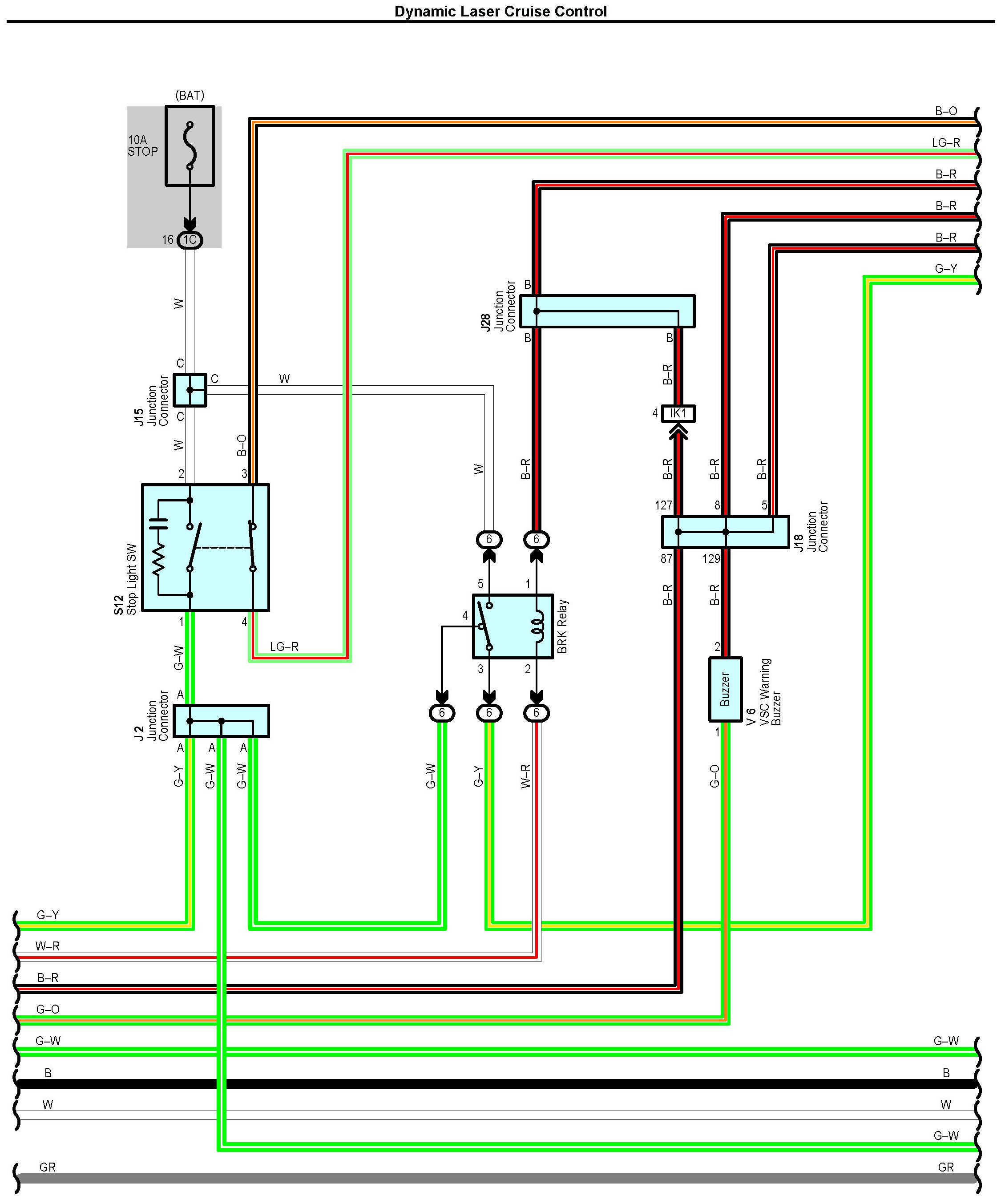

Dynamic Laser Cruise Control Part 4:

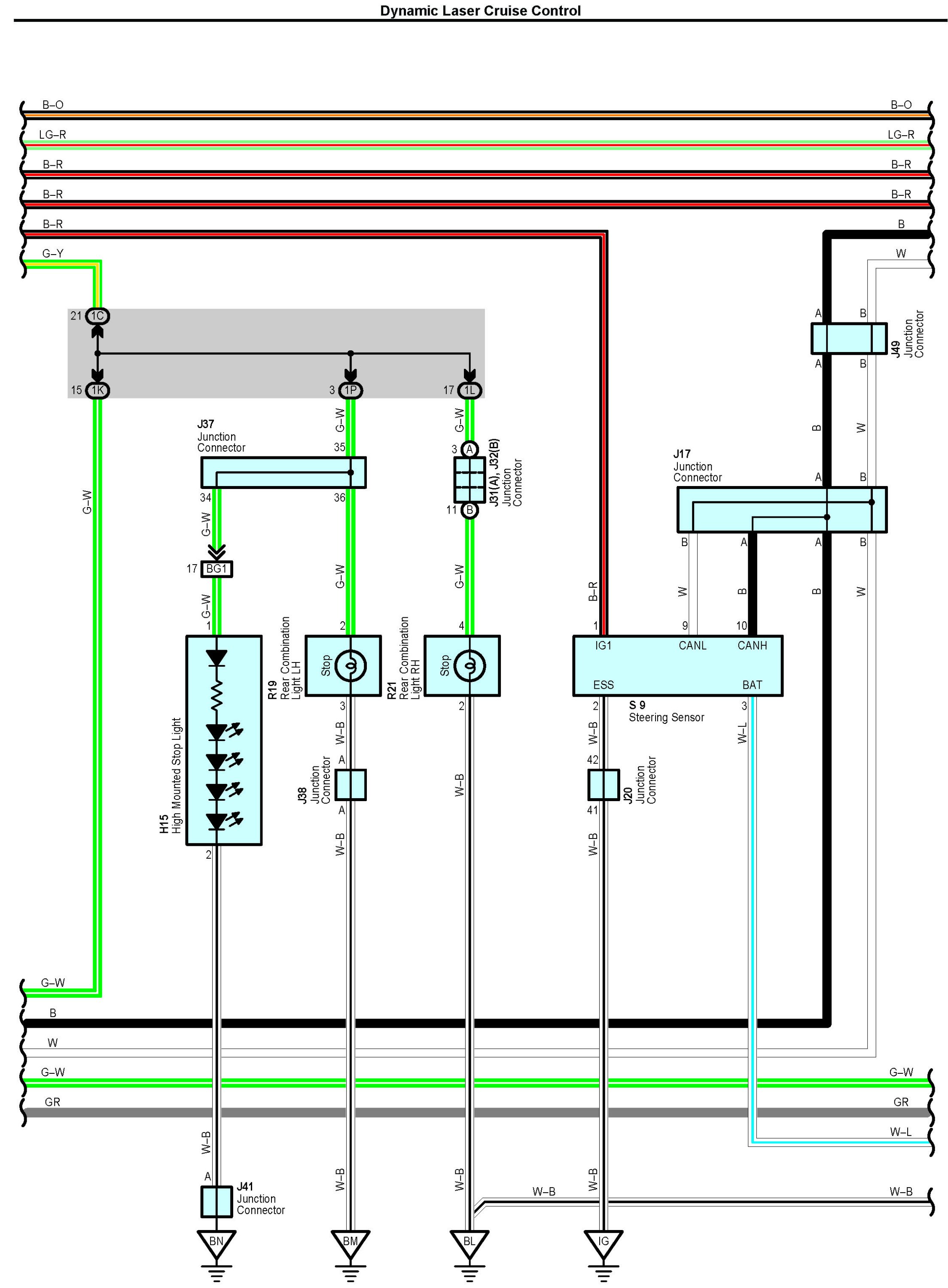

Dynamic Laser Cruise Control Part 5:

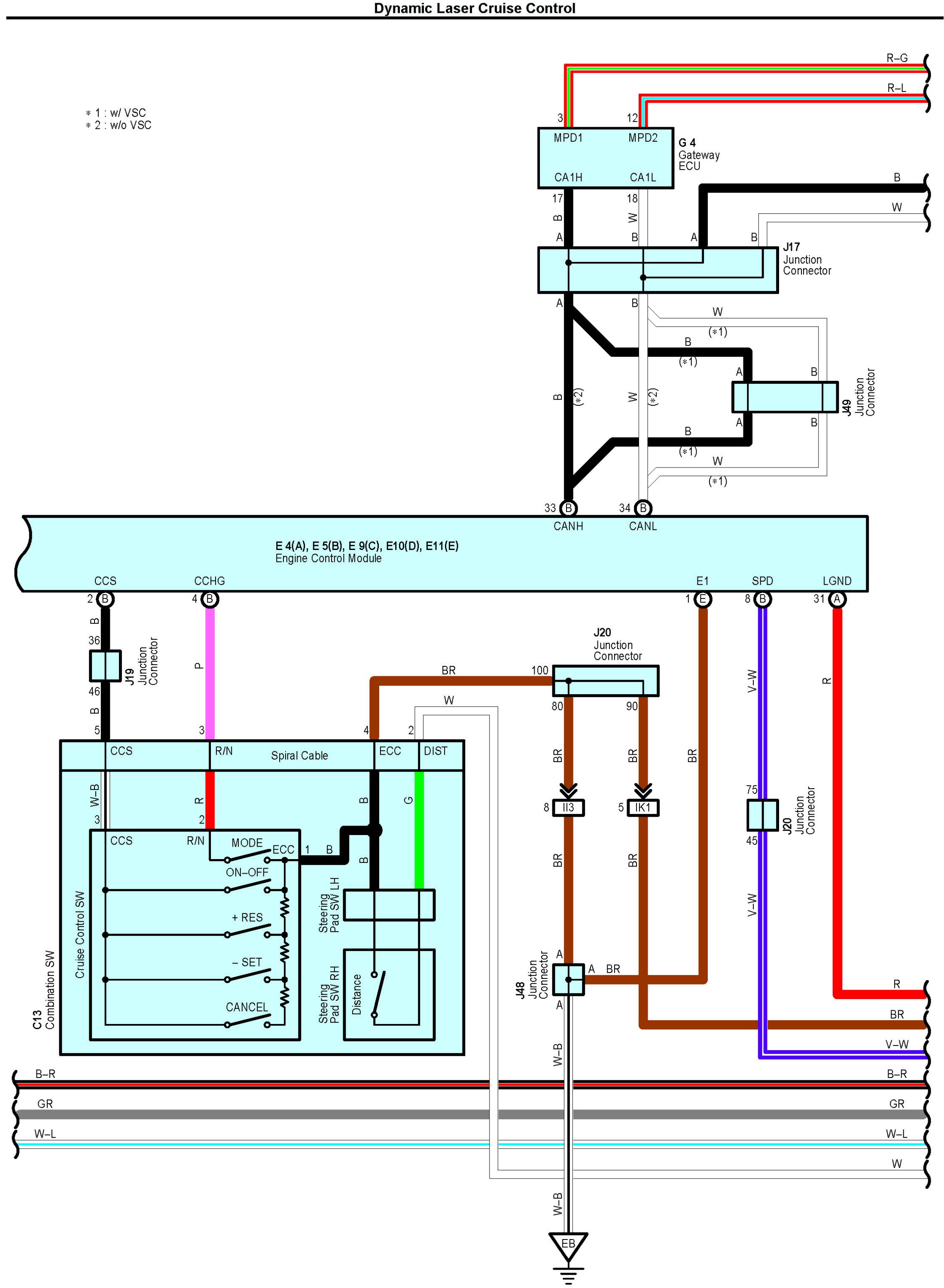

Dynamic Laser Cruise Control Part 6:

Dynamic Laser Cruise Control Part 7:

Dynamic Laser Cruise Control Part 8:

Dynamic Laser Cruise Control Part 9:

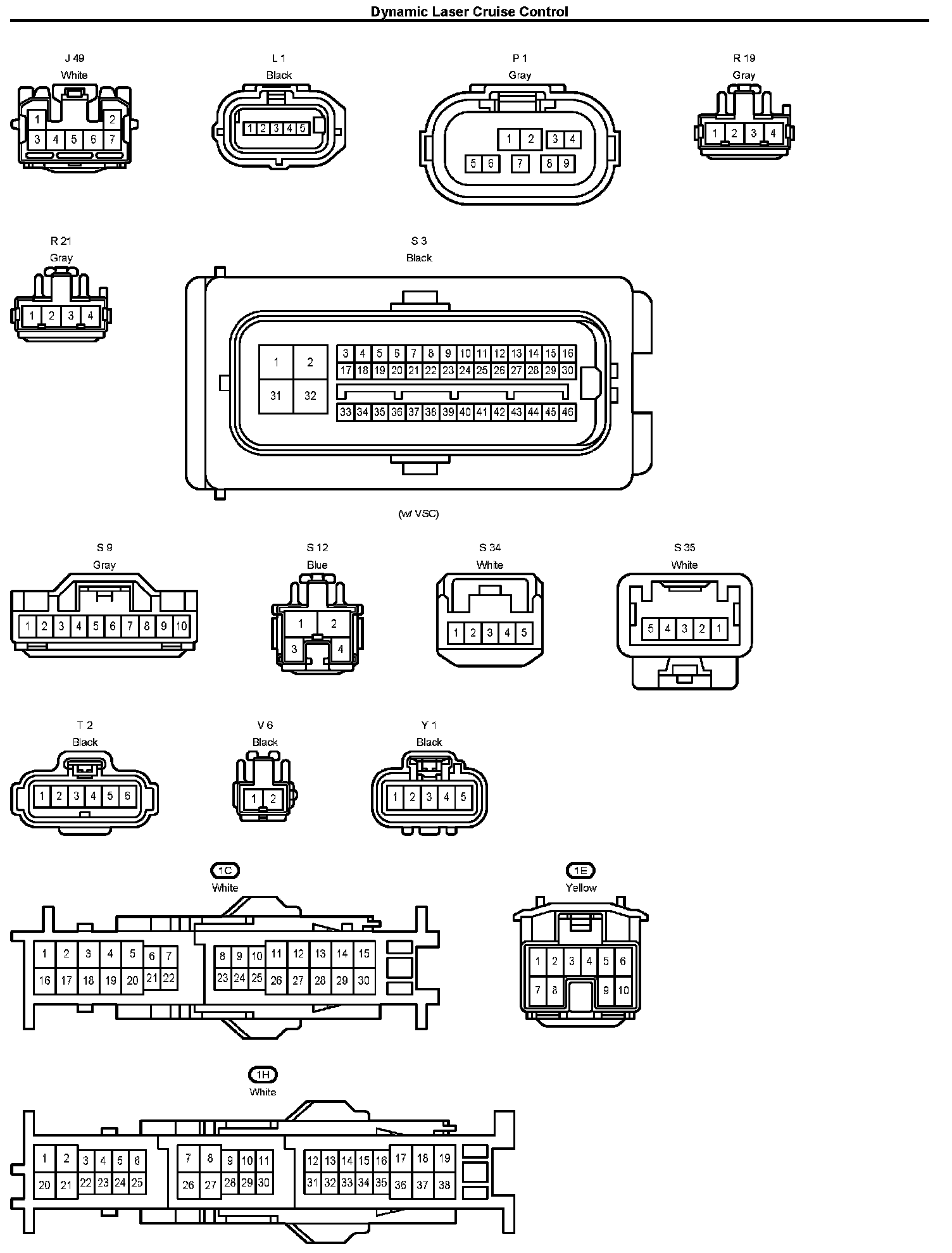

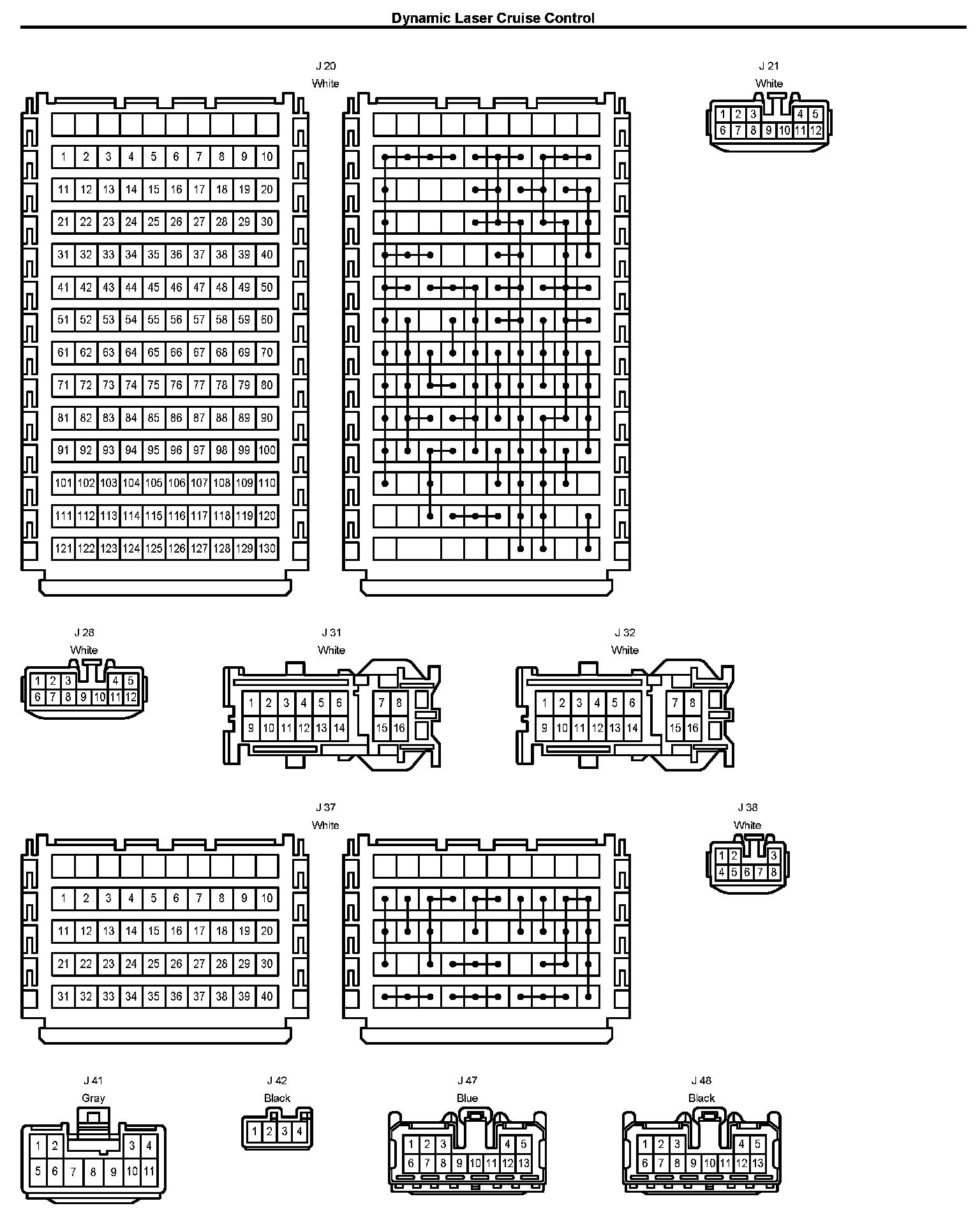

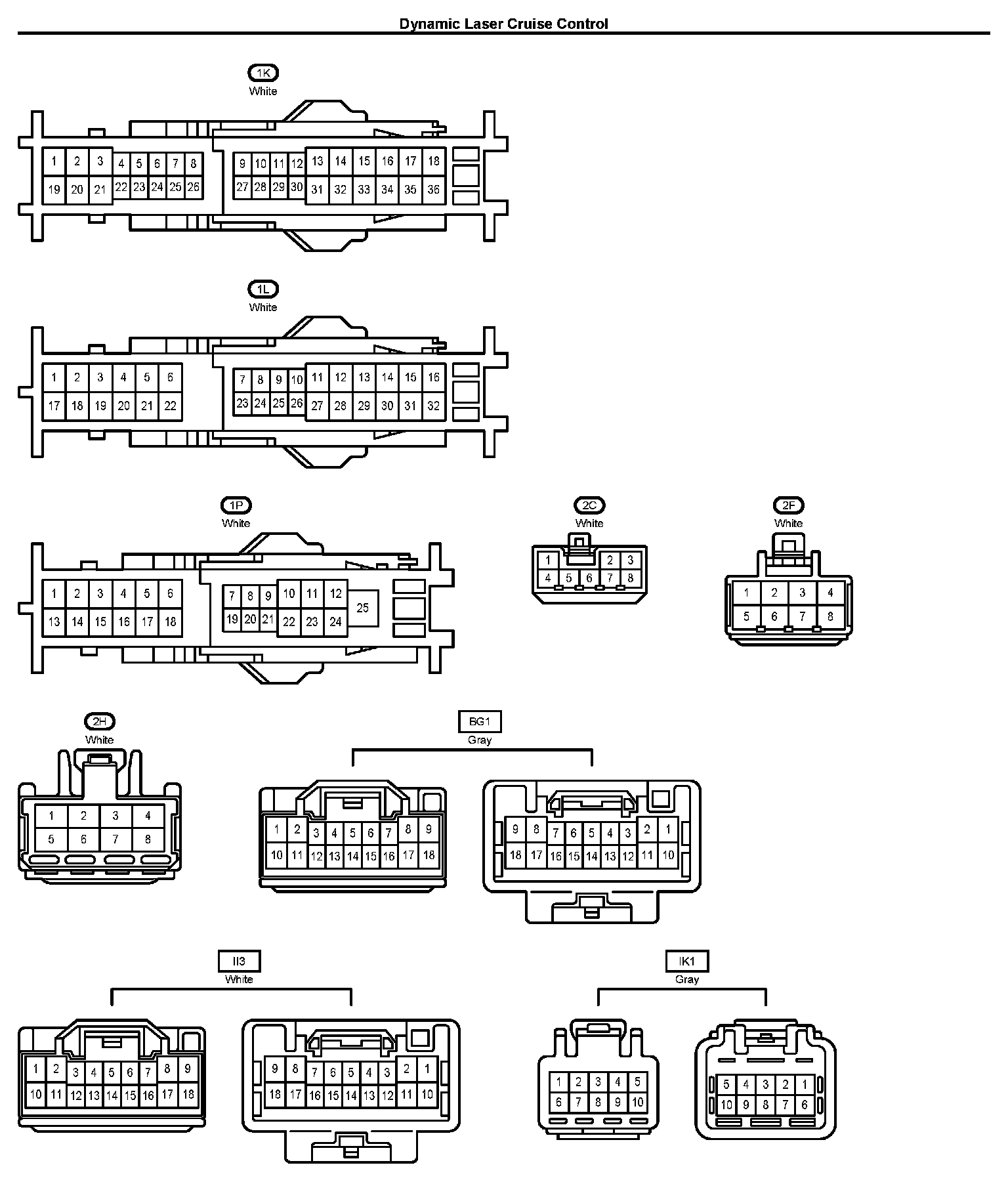

Connectors Part 1:

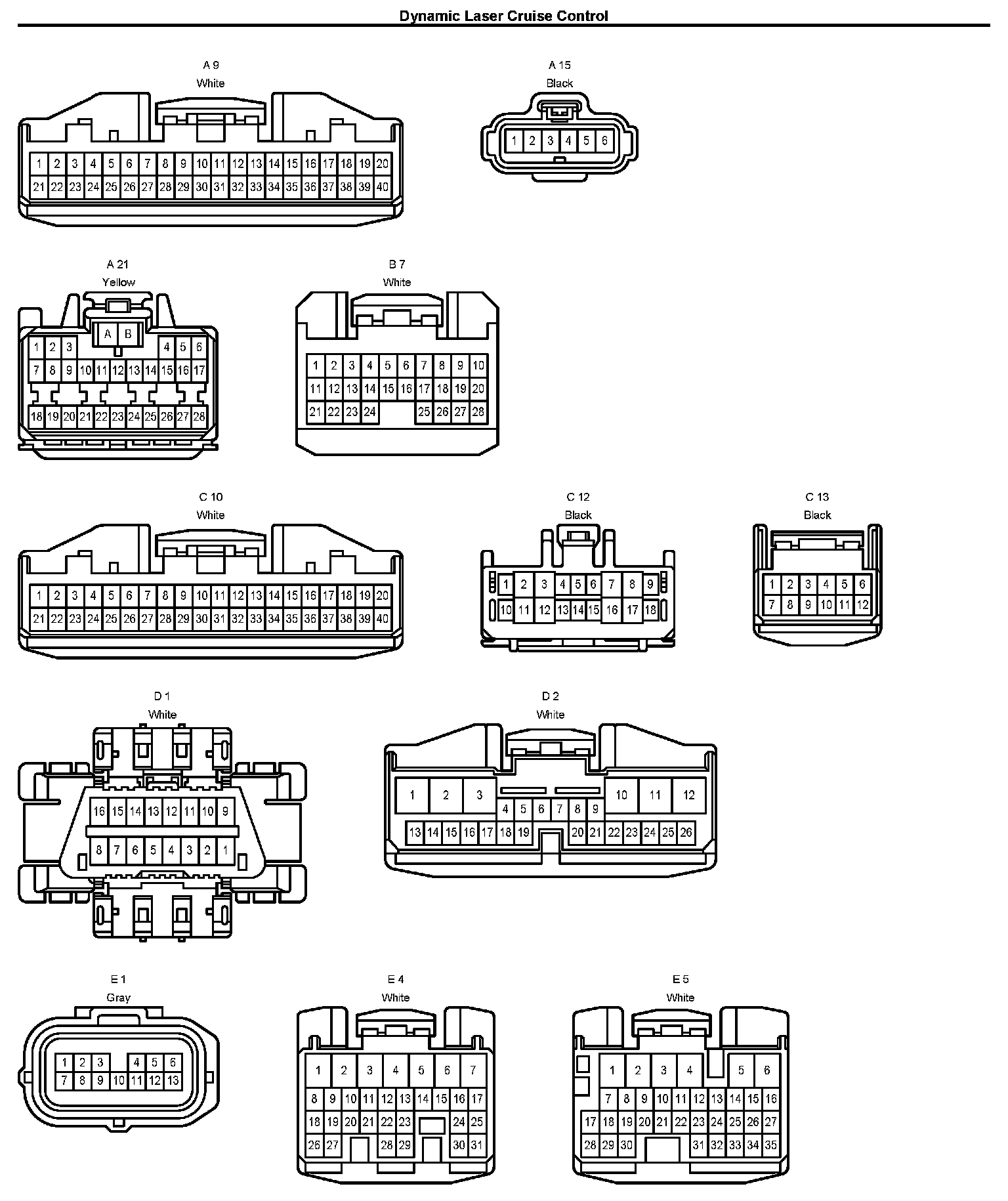

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
