Alignment: Specifications

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

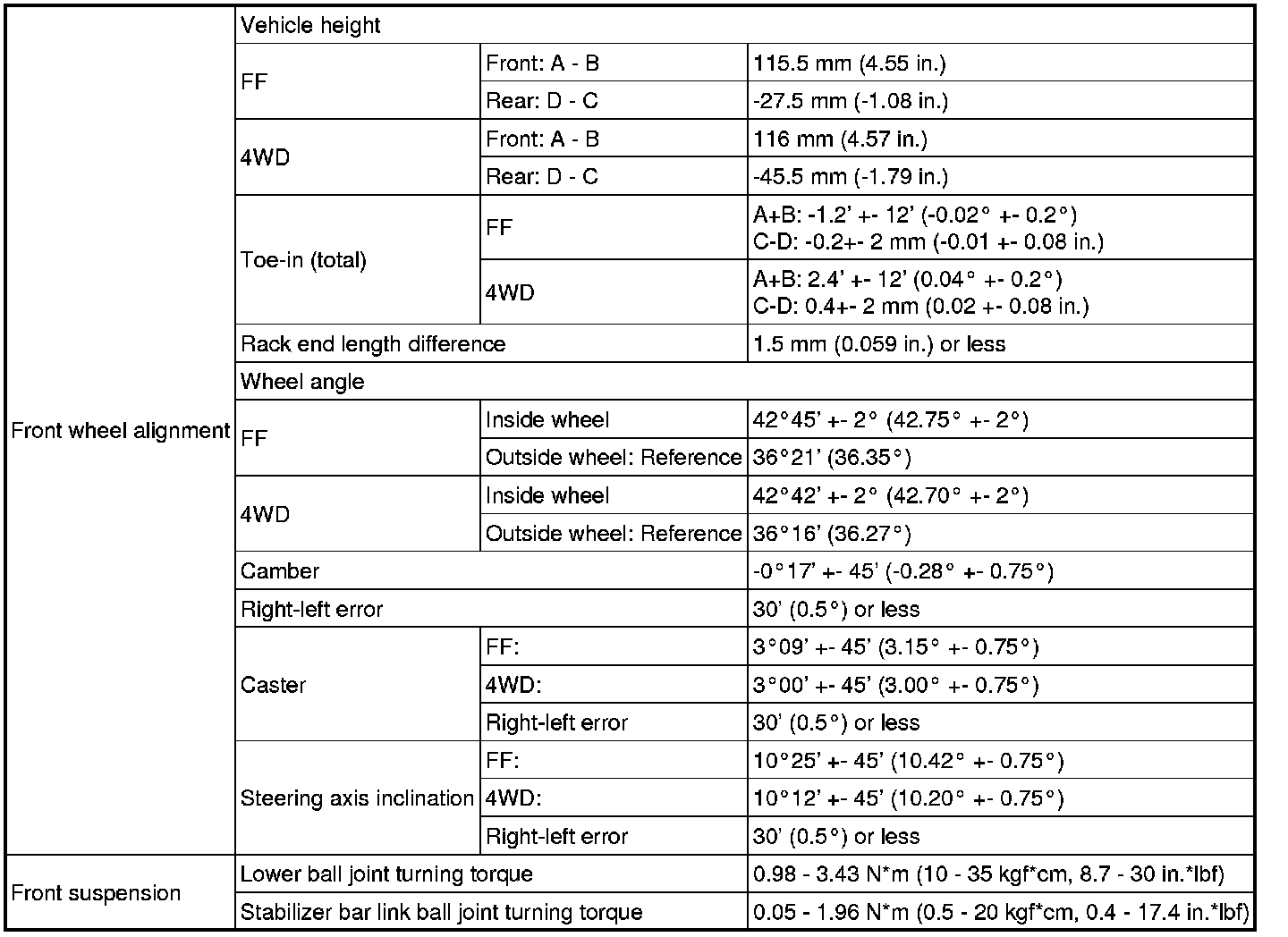

Front Wheel Alignment

Front Wheel Alignment:

A: Ground clearance of front wheel center

B: Ground clearance of lower suspension arm No. 2 set bolt center

C: Ground clearance of rear axle carrier bush set bolt center

D: Ground clearance of rear wheel center

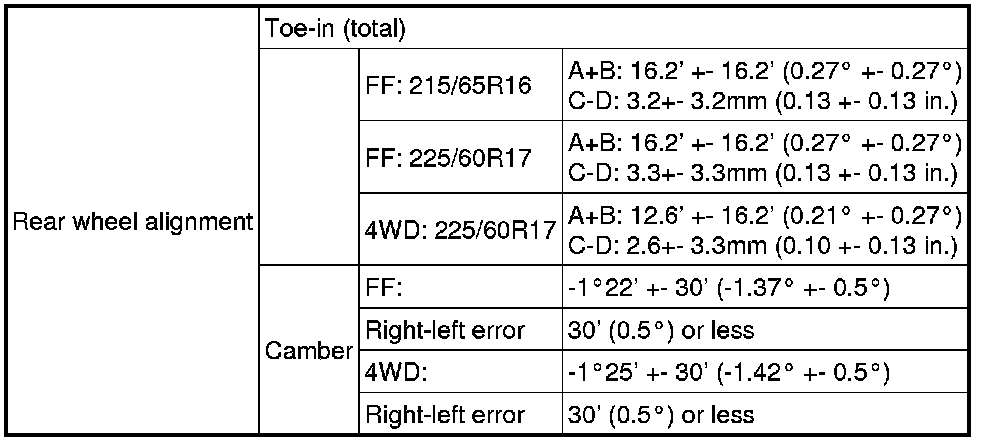

Rear Wheel Alignment

Rear Wheel Alignment:

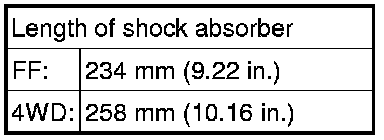

Length Of Shock Absorber:
