Removal

OTHER SYSTEM: VOLTAGE INVERTER: REMOVAL

1. REMOVE REAR DOOR SCUFF PLATE LH Removal

2. REMOVE REAR DOOR WEATHERSTRIP LH Removal

3. REMOVE BACK DOOR WEATHERSTRIP

4. REMOVE BACK DOOR SCUFF PLATE Removal

5. REMOVE QUARTER TRIM FRONT PANEL ASSEMBLY LH Removal

6. REMOVE VOLTAGE INVERTER ASSEMBLY

(a) Disconnect the connector.

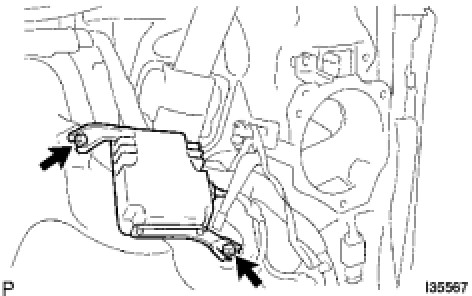

(b) Remove the 2 bolts and the voltage inverter assembly.
