Engine Temperature Sensor: Testing and Inspection

2GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSPECTION

1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

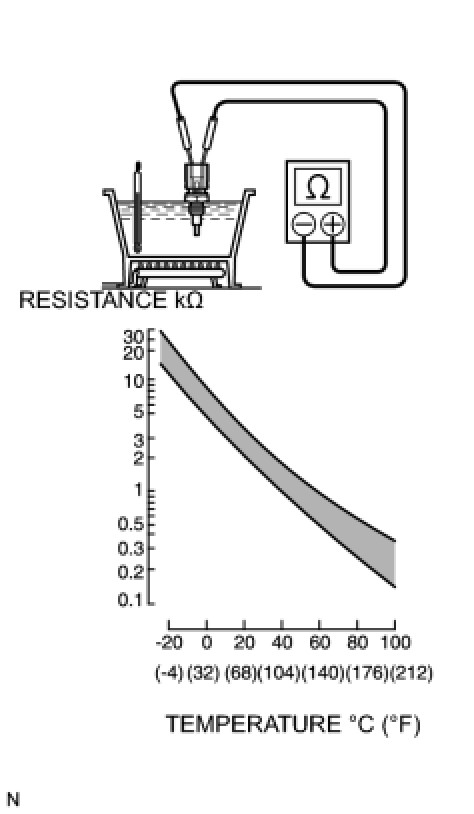

(a) Using an ohmmeter, measure the resistance between the terminals.

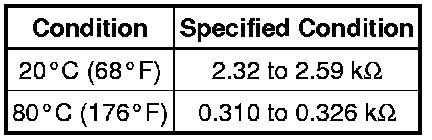

Standard resistance:





* If the result is as specified, do not replace the engine coolant temperature sensor.

* If the result is not as specified, replace the engine coolant temperature sensor.

NOTICE:
In case of checking the engine coolant temperature sensor in water, do not allow water to go into the terminals. After checking, dry the engine coolant temperature sensor.
