Knock Sensor: Testing and Inspection

2GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSPECTION

1. KNOCK CONTROL SENSOR

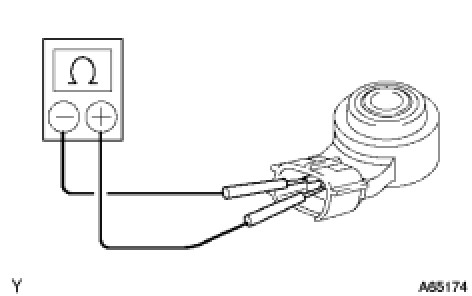

(a) Using an ohmmeter, measure the resistance between the terminals.





Resistance:

120 to 280 kOhms at 20°C (68°F)

(b) If the resistance is not specified, replace the knock control sensor.
