Body - Power Back Door Initialization Procedure

T-SB-0135-09

April 28, 2009

Initialization of Power Back Door During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

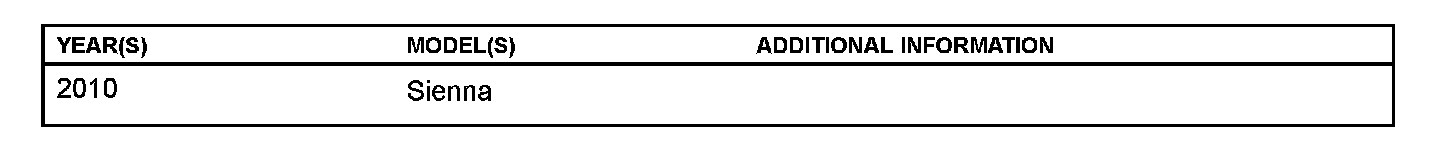

Applicability

Introduction

As a result of the removal of the Short Pin, the "automatic open and close" and "jam protection" functions of the power back door will be inoperative due to loss of the power back door position.

Initialize the power back door after installing the Short Pin in its original location during Pre-Delivery Service (PDS).

NOTE

Any time the battery terminal has been disconnected, the power back door MUST be re-initialized.

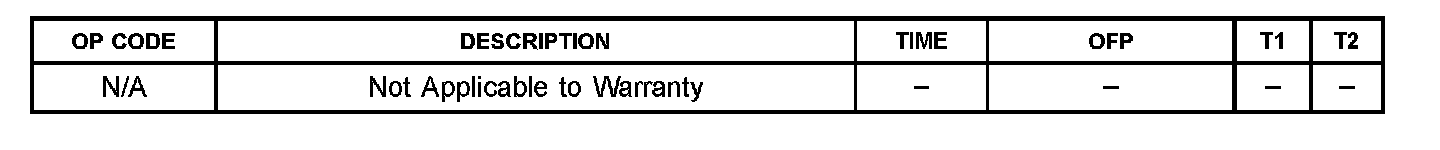

Warranty Information





Overview

Initialization Procedure

1. Fully close the power back door if open.





2. Check that the power back door will fully open and fully close.

A. Unlock the power back door using the transmitter switch or the door control switch.

B. Cycle the ignition switch to the "IG-OFF" position.

C. Check that the power back door main switch is in the "ON" position.

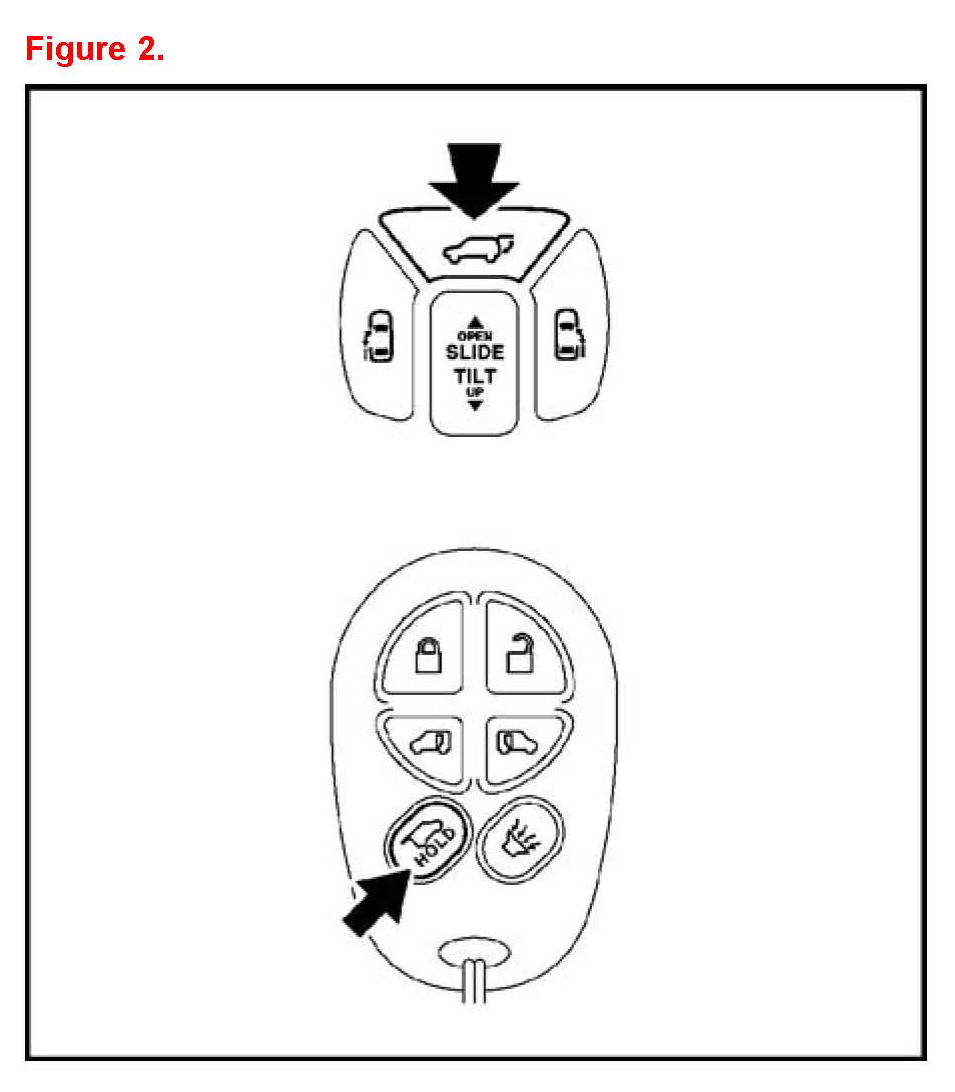

D. Check that the back door will fully open and fully close by pushing the power back door satellite switch or PBD button briefly.

NOTE

Jam protection function becomes enabled through the above initialization procedure.
