Ignition Switch: Testing and Inspection

2GR-FE STARTING: IGNITION SWITCH: INSPECTION

1. INSPECT IGNITION SWITCH ASSEMBLY

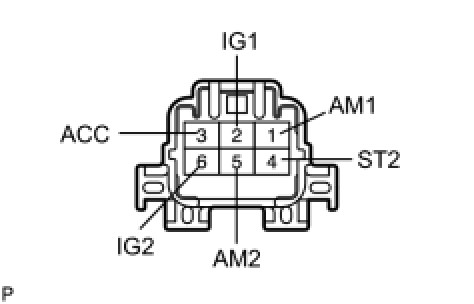

(a) Measure the resistance of the switch.

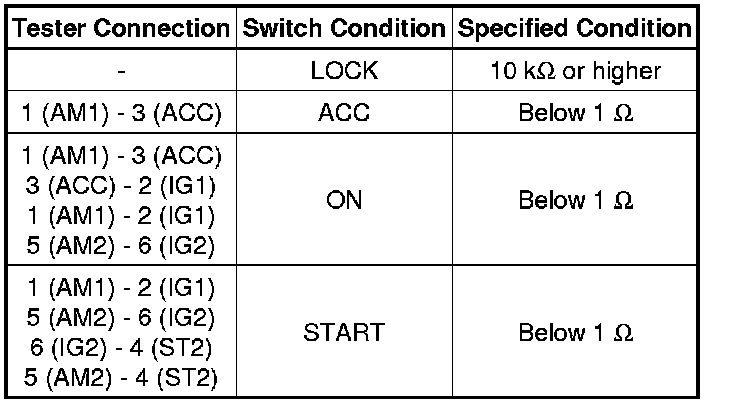

Standard resistance:





(b) If the result is not as specified, replace the switch assembly.
