Installation

U151F AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSTALLATION

1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Install the park/neutral position switch to the manual valve shaft.

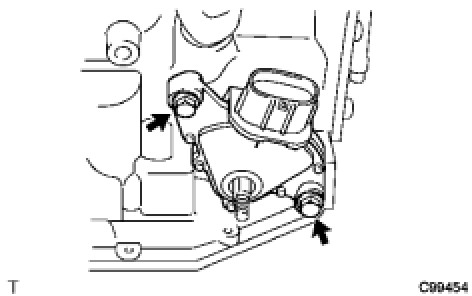

(b) Temporarily install the 2 bolts.

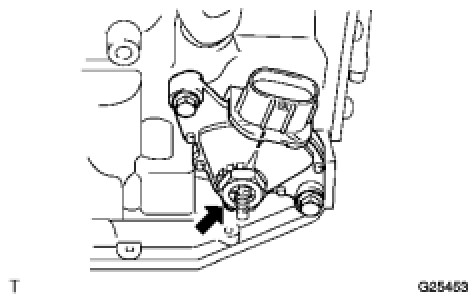

(c) Place a new lock plate and tighten the nut.





Torque : 6.9 Nm (70 kgf-cm, 61 in-lbf)

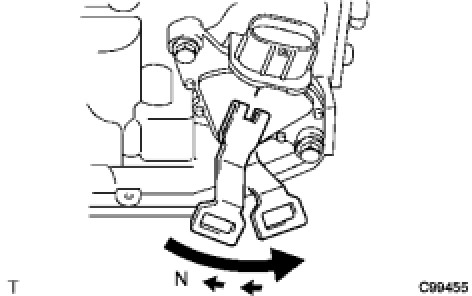

(d) Temporarily install the control shaft lever.

(e) Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.





(f) Remove the control shaft lever.

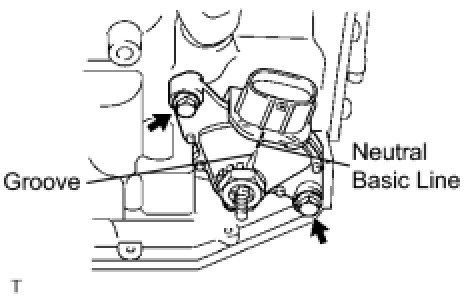

(g) Align the groove with the neutral basic line.





(h) Hold the switch in position and tighten the 2 bolts.

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

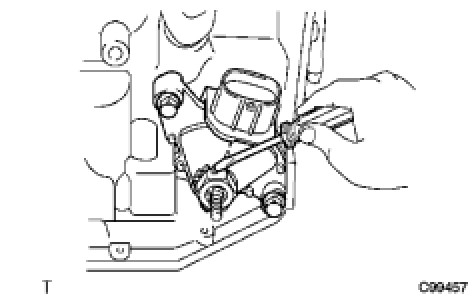

(i) Using a screwdriver, bend the tabs of the lock plate.

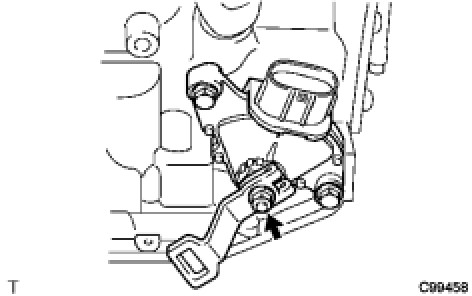

(j) Install the control shaft lever, washer and the nut.





Torque : 13 Nm (130 kgf-cm, 9 ft-lbf)

(k) Connect the park/neutral position switch connector.





2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

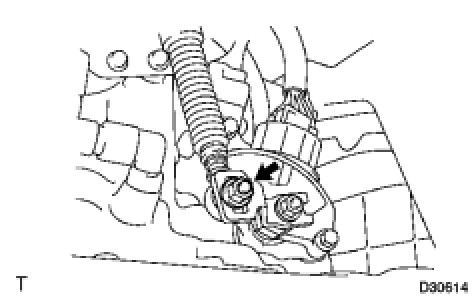

(a) Connect the control cable to the control shaft lever with the nut.





Torque : 13 Nm (133 kgf-cm, 10 ft-lbf)

(b) Install the control cable with a new clip to the bracket.





3. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY Adjustments

4. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY OPERATION Testing and Inspection

5. INSPECT SHIFT LEVER POSITION Adjustments

6. ADJUST SHIFT LEVER POSITION Adjustments

7. INSTALL AIR CLEANER ASSEMBLY

HINT
Installation

8. INSTALL BATTERY
