Body - Driver's Power Window Initialization Procedure
T-SB-0143-09April 29, 2009
Initialization of Driver's Door Power Window During PDS
Service Category
General
Section
Pre-Delivery Service
Market
USA

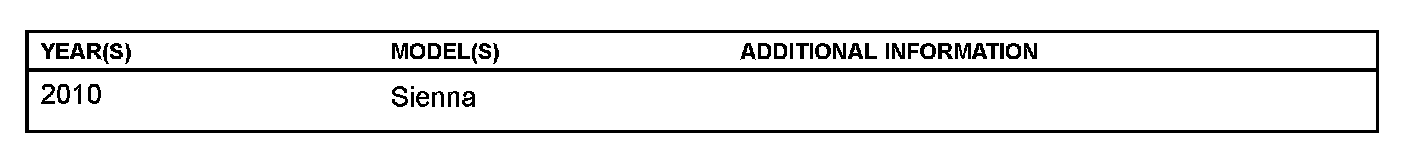

Applicability
Introduction
As a result of the removal of the Short Pin, the "one-touch open and close" and 'lam protection" functions of the driver's door power window will be inoperative due to loss of the driver's door window position memory. Initialize the driver's door power window after installing the Short Pin in its original location during Pre-Delivery Service (PDS).
NOTE
Any time the battery terminal has been disconnected, the driver's door power window MUST be re-initialized.

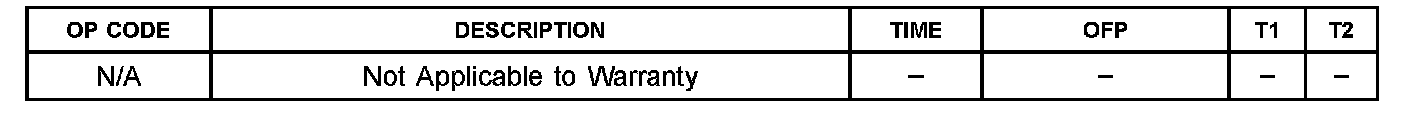

Warranty Information
Initialization Procedure
1. Cycle the ignition switch to the "IG-ON" position.

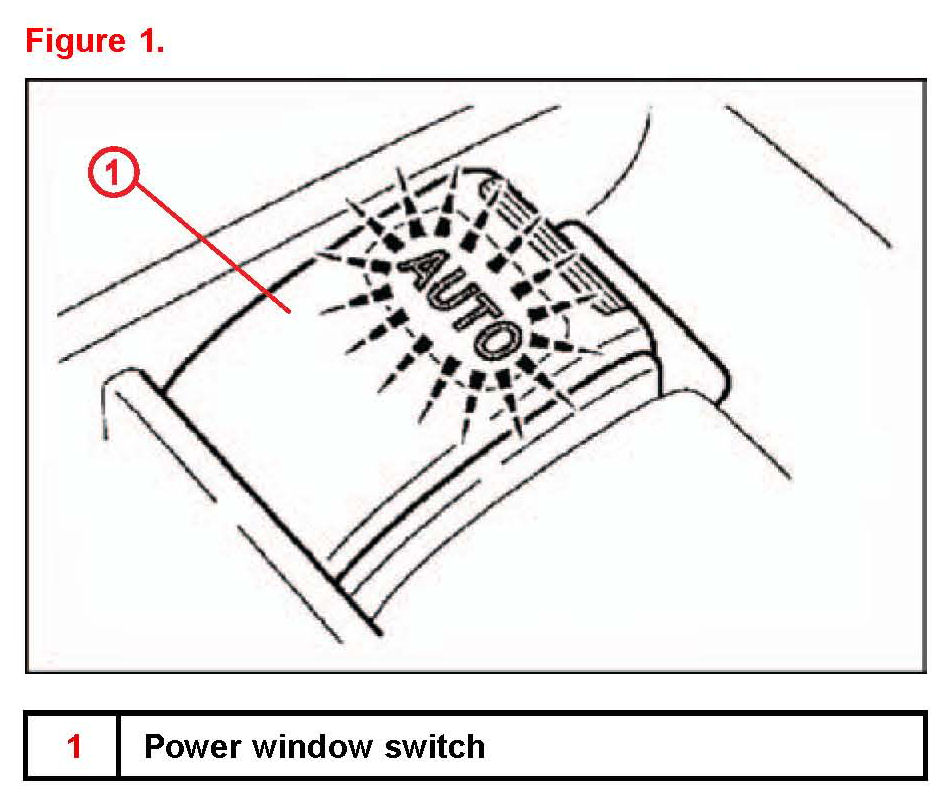

When not initialized, the power window switch for the driver's door power window will blink.
2. Push the driver's door power window switch "DOWN" to open the window.

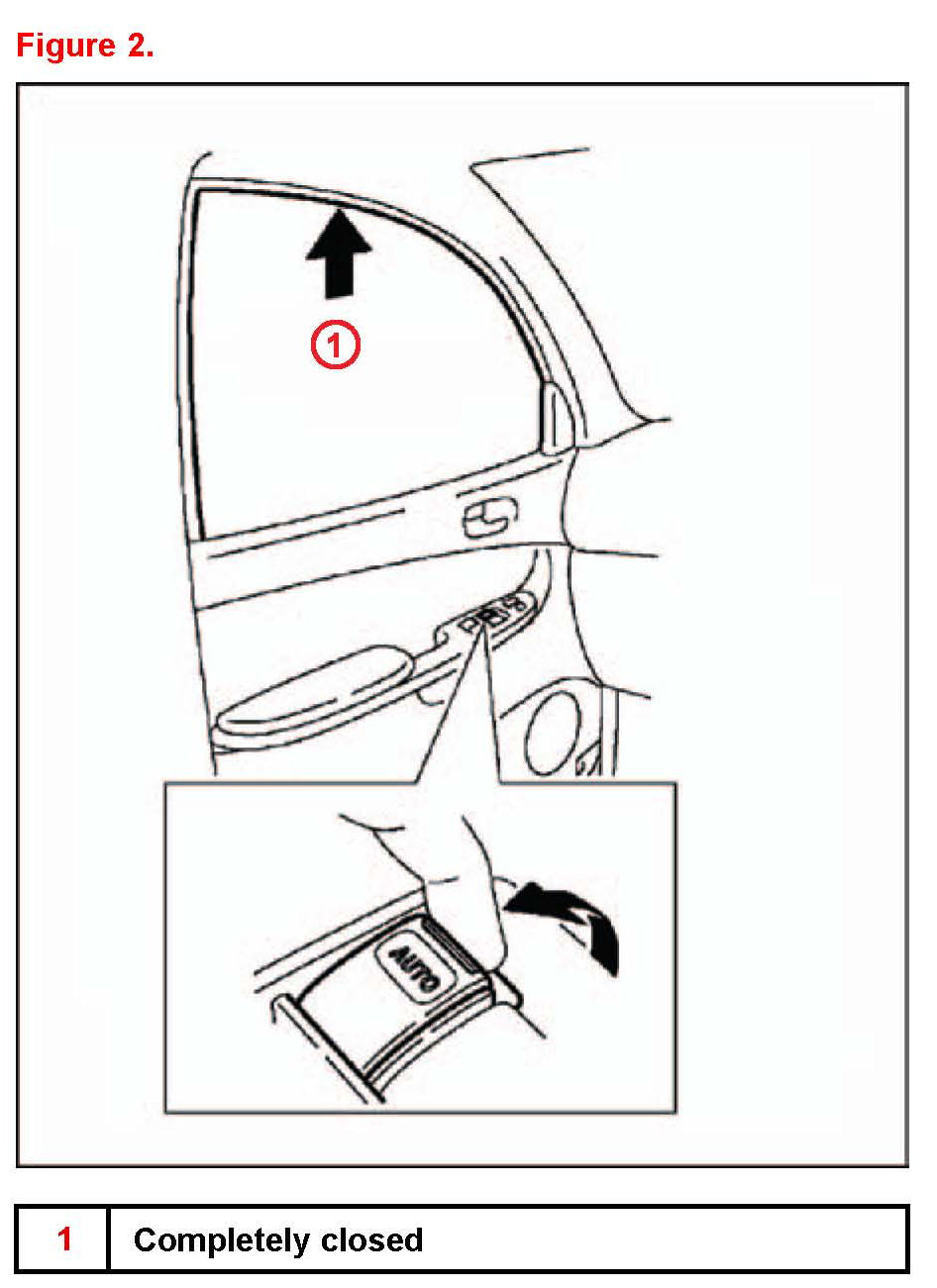

3. Pull "UP" the driver's door power window switch until the window closes, and continue holding it for approximately one second until the switch stops blinking and remains illuminated.
4. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.
NOTE
Jam protection function becomes effective through the above initialization procedure.
