Power Window Master Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: INSPECTION

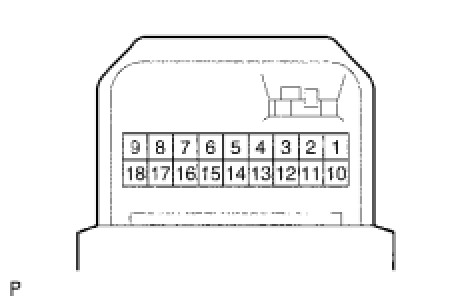

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (w/ Jam Protection Function)

(a) Check the resistance between the terminals of the switch when the switch is operated.





Standard:

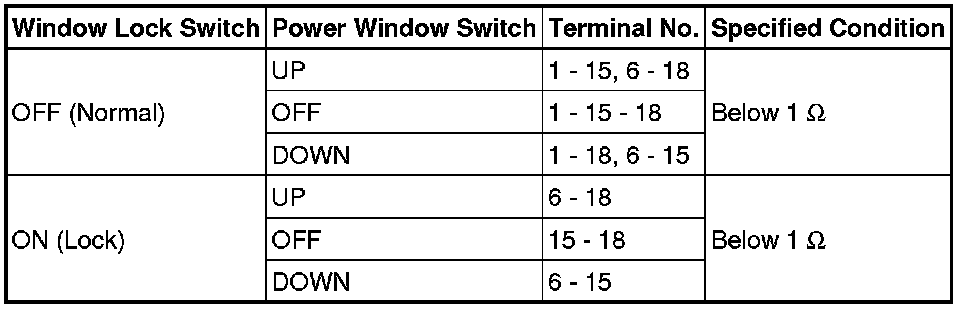

AUTO (driver side) switch

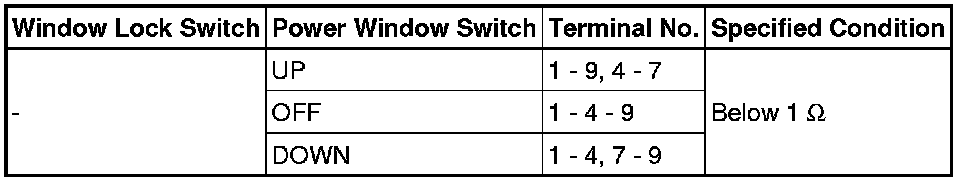

Passenger side switch






Rear LH switch






Rear RH switch





(b) If the result is not as specified, replace the switch assembly.

2. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (w/o Jam Protection Function)

(a) Check the resistance between the terminals of the switch when the switch is operated.





Standard:

AUTO (driver side) switch






Passenger side switch






Rear LH switch






Rear RH switch





(b) If the result is not as specified, replace the switch assembly.
