Window Regulator: Testing and Inspection

WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATOR MOTOR: INSPECTION

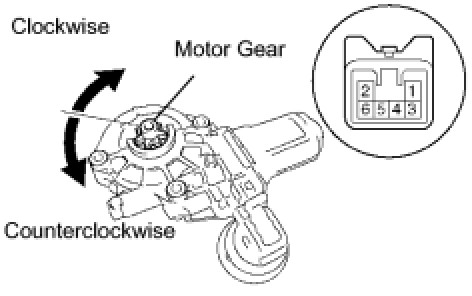

1. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT RH)

(a) Remove the power window regulator motor.





(b) Apply battery voltage to the motor connector according to the table below.

NOTICE:
Do not apply battery to any terminals except terminals 1 and 2.

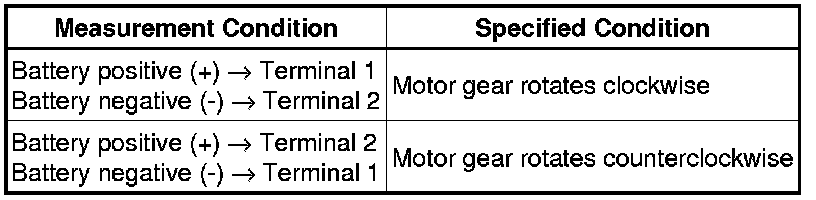

Standard:

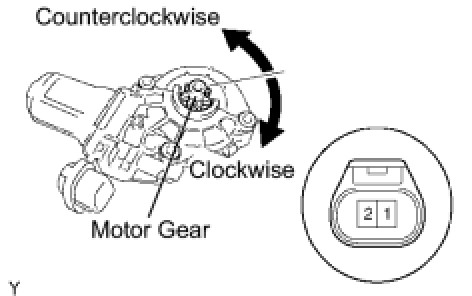

2. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT LH)

(a) Remove the power window regulator motor.





(b) Apply battery voltage to the motor connector according to the table below.

NOTICE:
Do not apply battery to any terminals except terminals 1 and 2.

Standard:





3. INSPECT POWER WINDOW REGULATOR MOTOR (REAR RH)

(a) Remove the power window regulator motor.





(b) Apply battery voltage to the motor connector according to the table below.

NOTICE:
Do not apply battery to any terminals except terminals 1 and 2.

Standard:





4. INSPECT POWER WINDOW REGULATOR MOTOR (REAR LH)

(a) Remove the power window regulator motor.





(b) Apply battery voltage to the motor connector according to the table below.

NOTICE:
Do not apply battery to any terminals except terminals 1 and 2.

Standard:
