Installation

2GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR: INSTALLATION

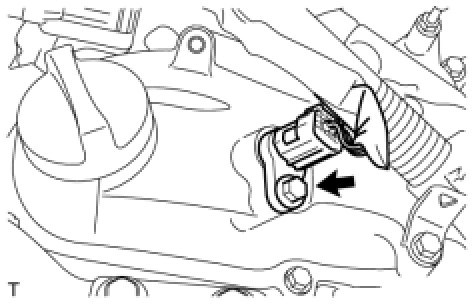

1. INSTALL VVT SENSOR (for Bank 2 Exhaust Side)

(a) Install the VVT sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the VVT sensor connector.

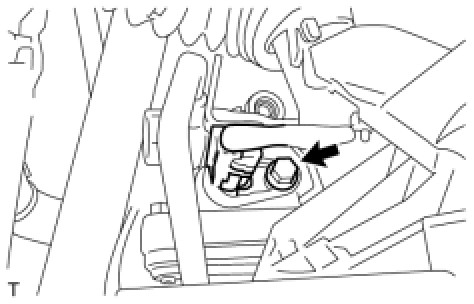

2. INSTALL VVT SENSOR (for Bank 2 Intake Side)

(a) Install the VVT sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the VVT sensor connector.

3. INSTALL VVT SENSOR (for Bank 1 Exhaust Side)

(a) Install the VVT sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the VVT sensor connector.

4. INSTALL VVT SENSOR (for Bank 1 Intake Side)

(a) Install the VVT sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the VVT sensor connector.

5. INSTALL INTAKE AIR SURGE TANK ASSEMBLY Installation

6. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

7. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

8. INSTALL NO. 1 AIR CLEANER INLET Installation

9. INSTALL NO. 2 AIR CLEANER INLET Installation

10. ADD ENGINE COOLANT Service and Repair

11. INSPECT FOR ENGINE COOLANT LEAK Testing and Inspection

12. INSPECT FOR ENGINE OIL LEAK Replacement

13. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

14. INSTALL FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY Installation

15. INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY

HINT
Installation
