Connecting Rod, Engine
PISTON SUB-ASSEMBLY WITH CONNECTING RODUsing SST, tighten the bolts alternately to the specified torque.
Torque 25 Nm (250 kgf-cm, 18 ft-lbf)
Mark the front side of the each connecting cap bolt with paint.
Retighten the cap bolts 90° as shown.
Check that the crankshaft turns smoothly.

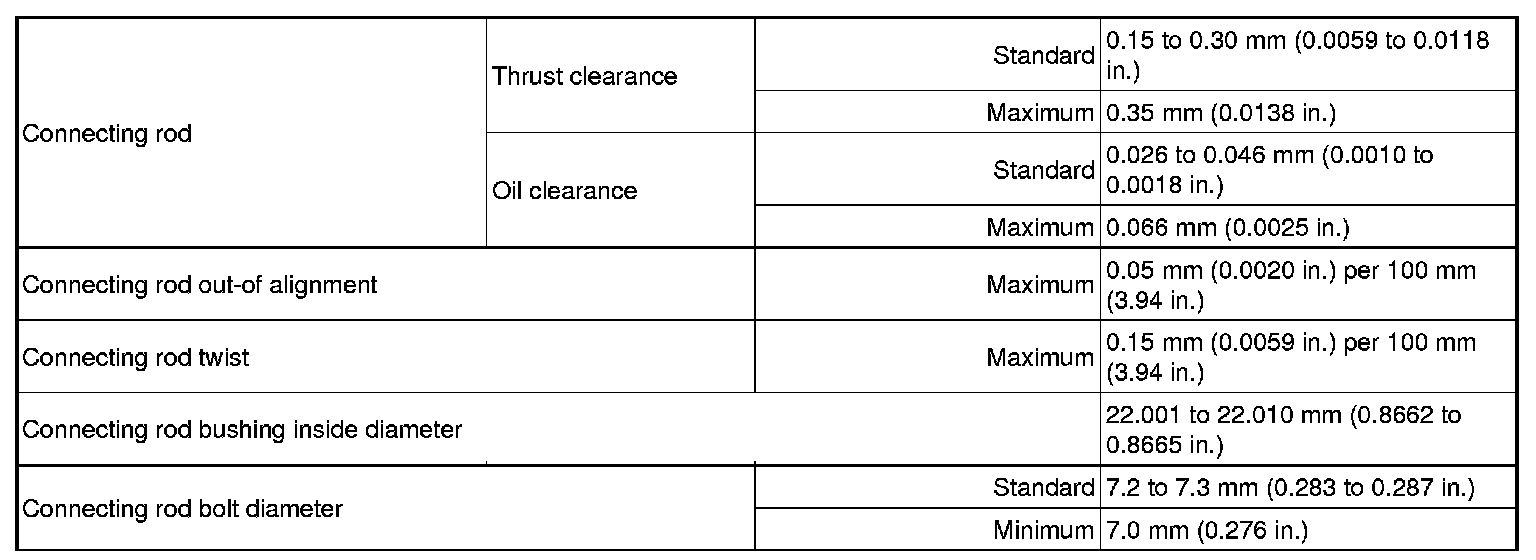

Connecting Rod Side Clearance, Out-of-Round and Diameter
