Transmission Control Systems

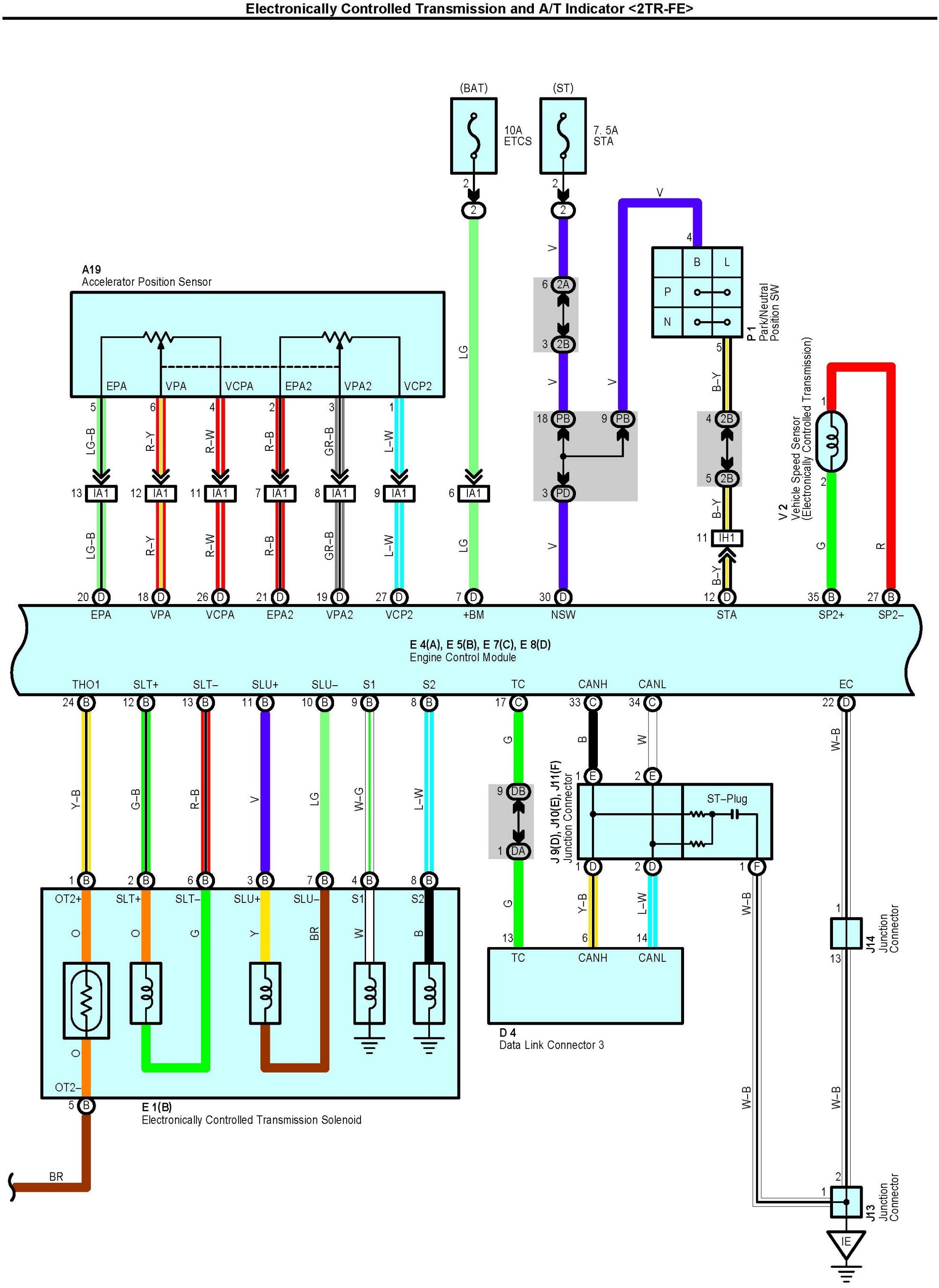

Electronically Controlled Transmission and A/T Indicator Part 1:

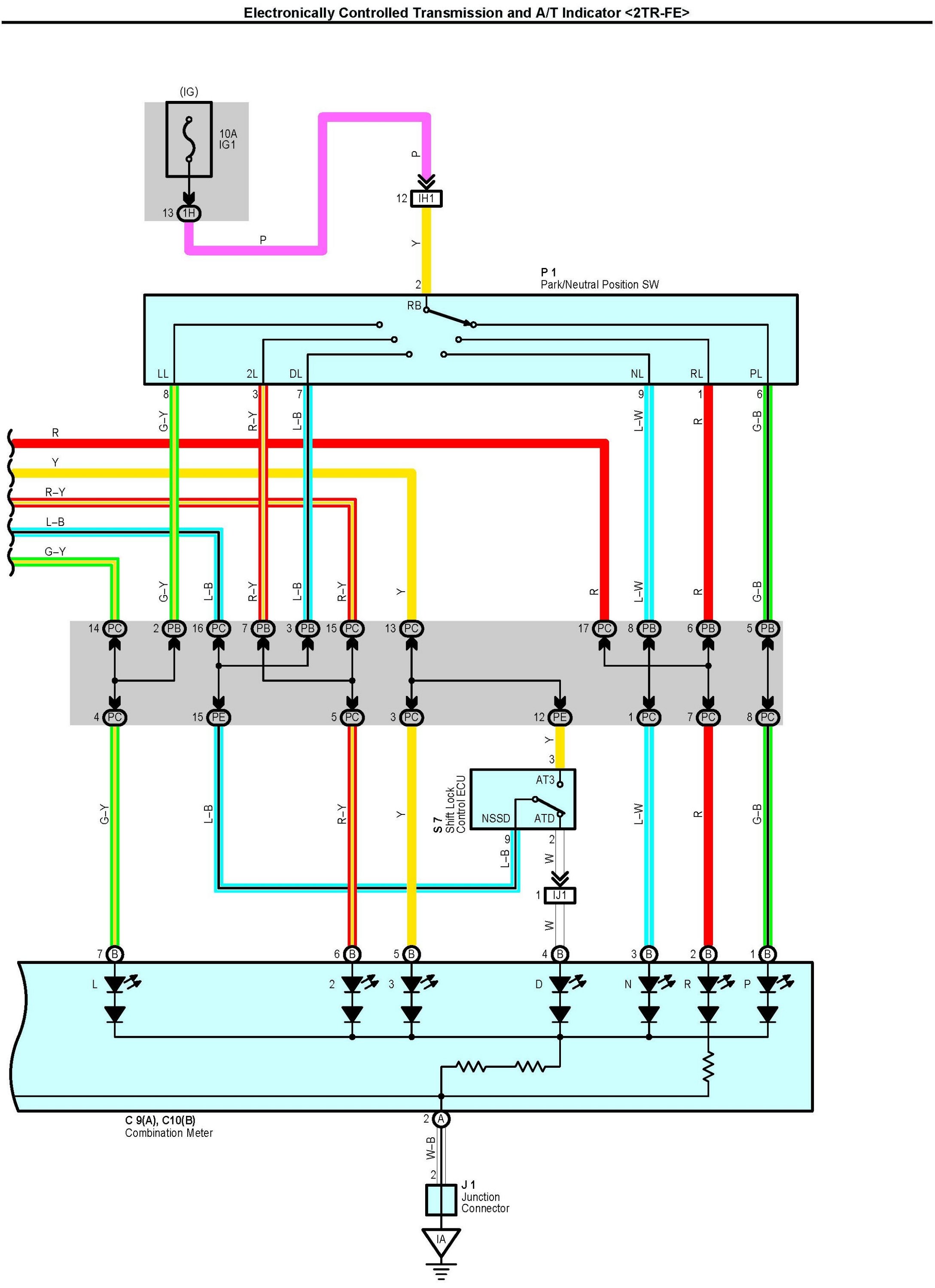

Electronically Controlled Transmission and A/T Indicator Part 2:

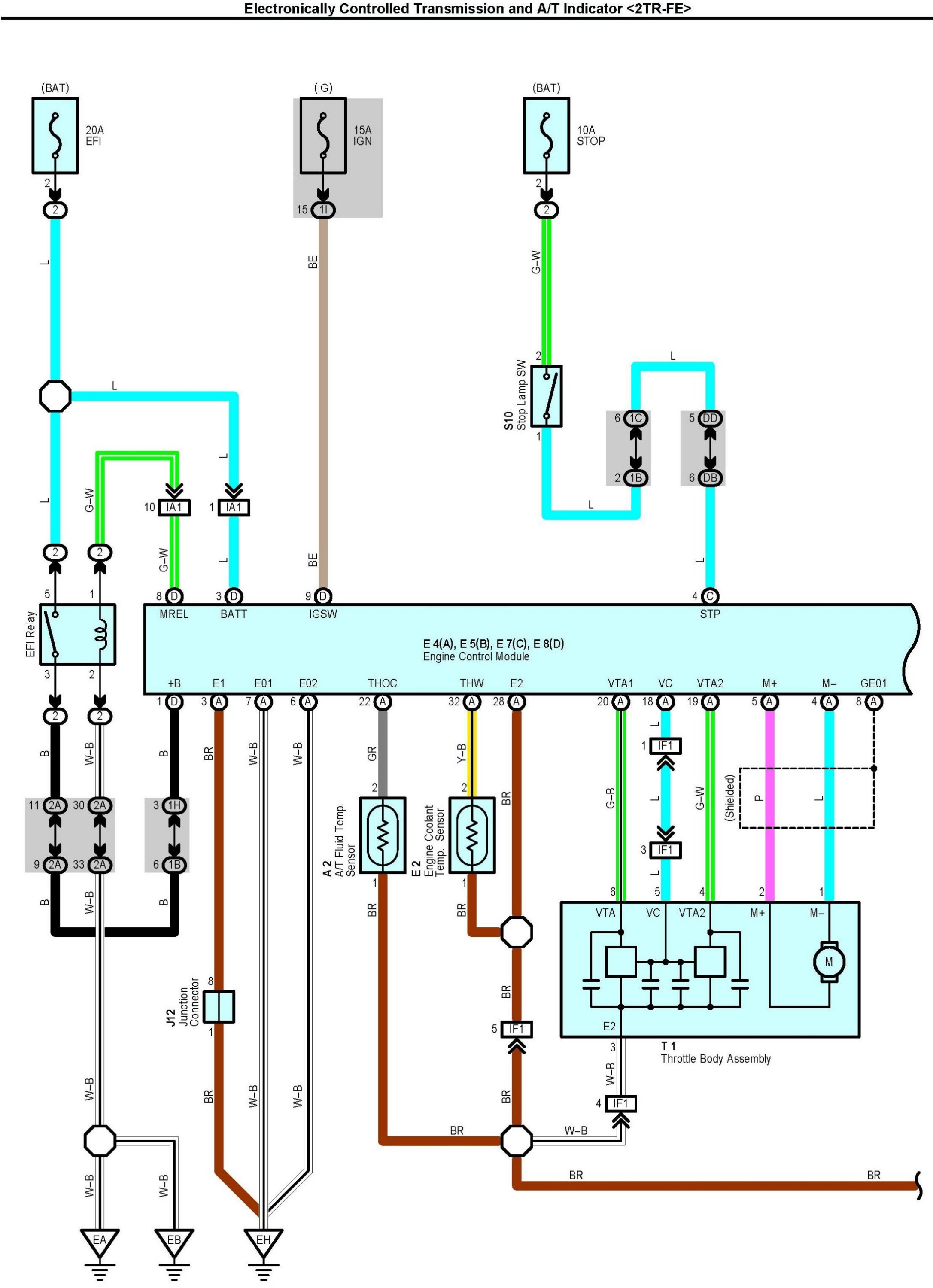

Electronically Controlled Transmission and A/T Indicator Part 3:

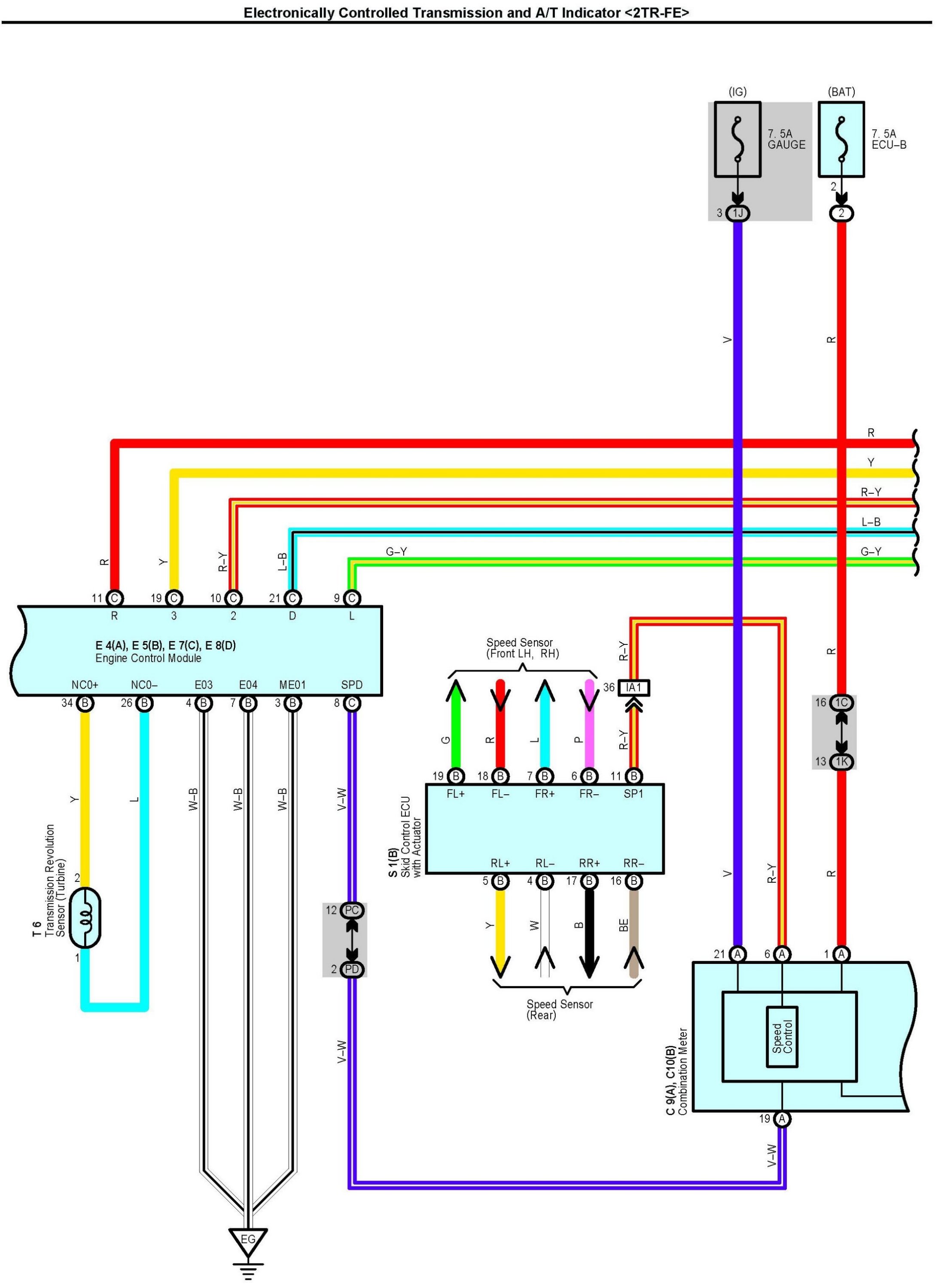

Electronically Controlled Transmission and A/T Indicator Part 4:

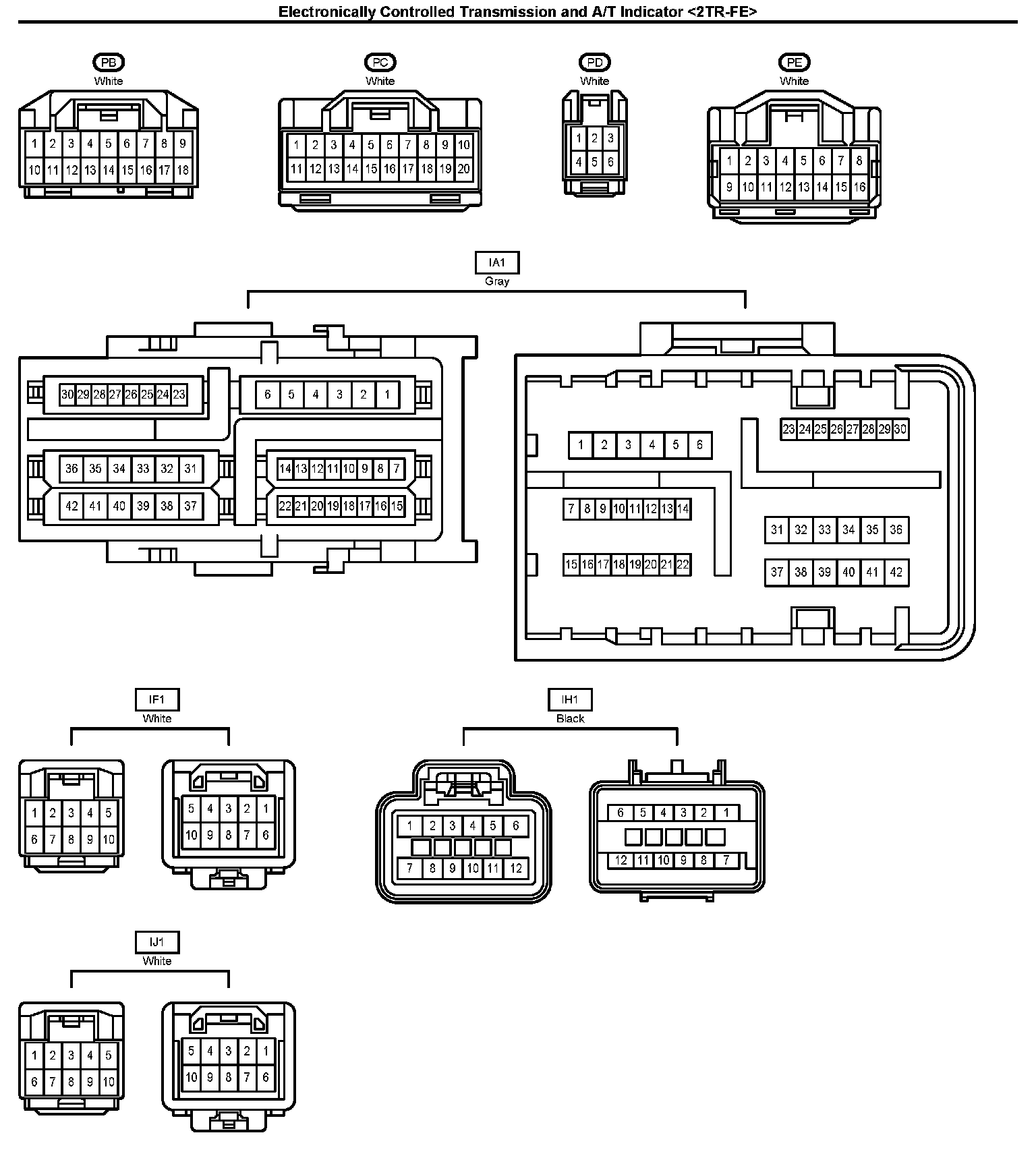

Connectors Part 1:

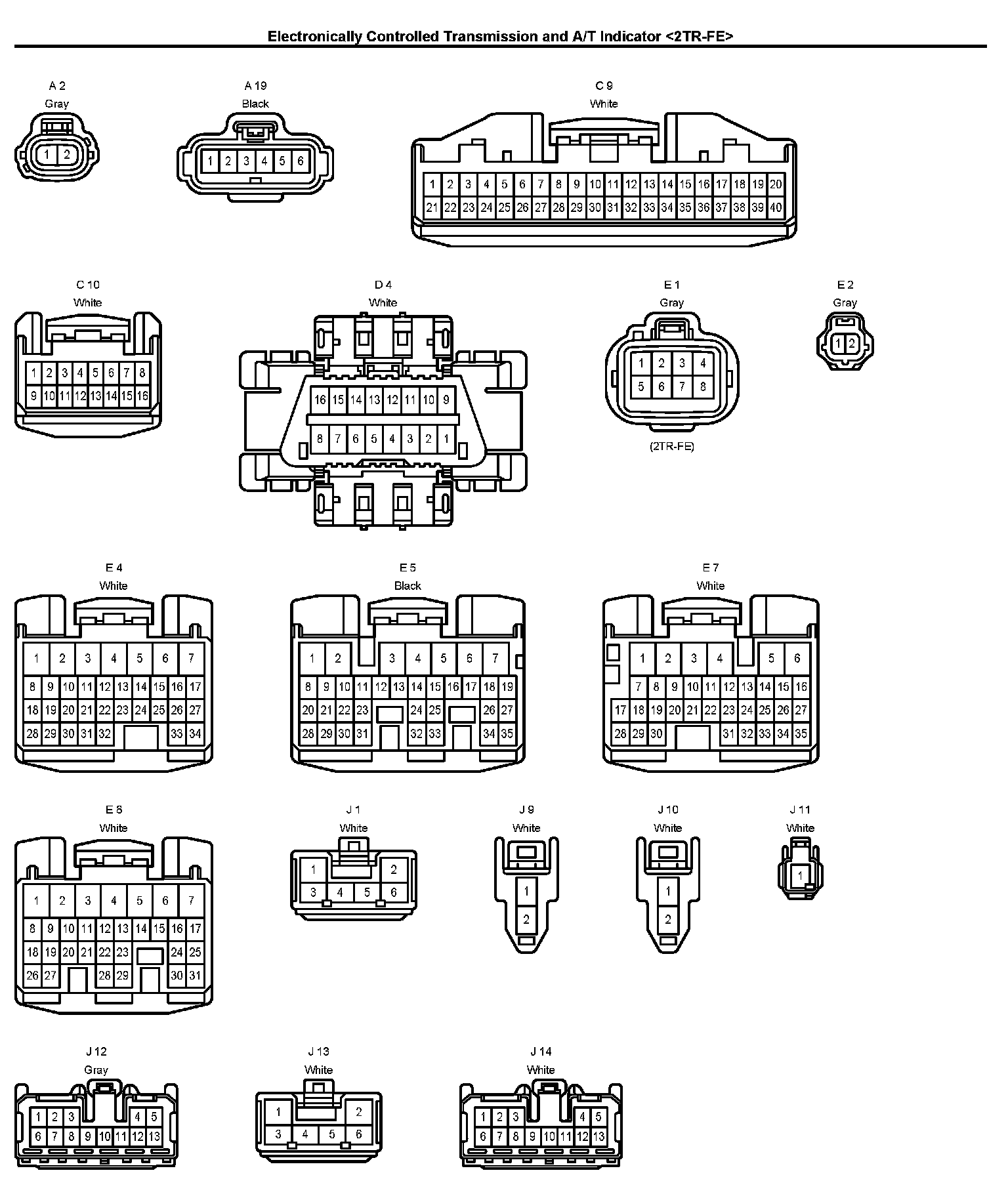

Connectors Part 2:

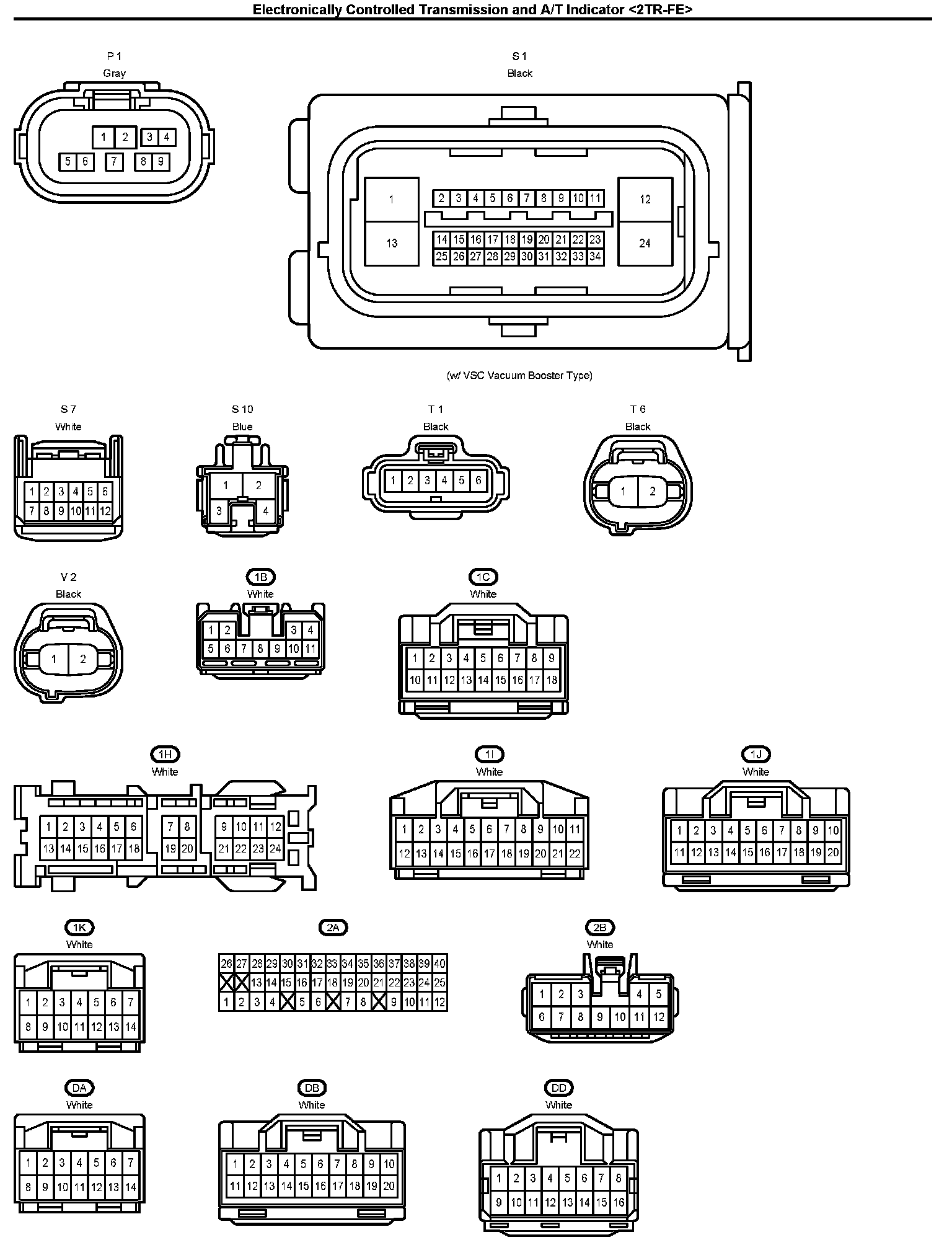

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
