Electrical Diagrams

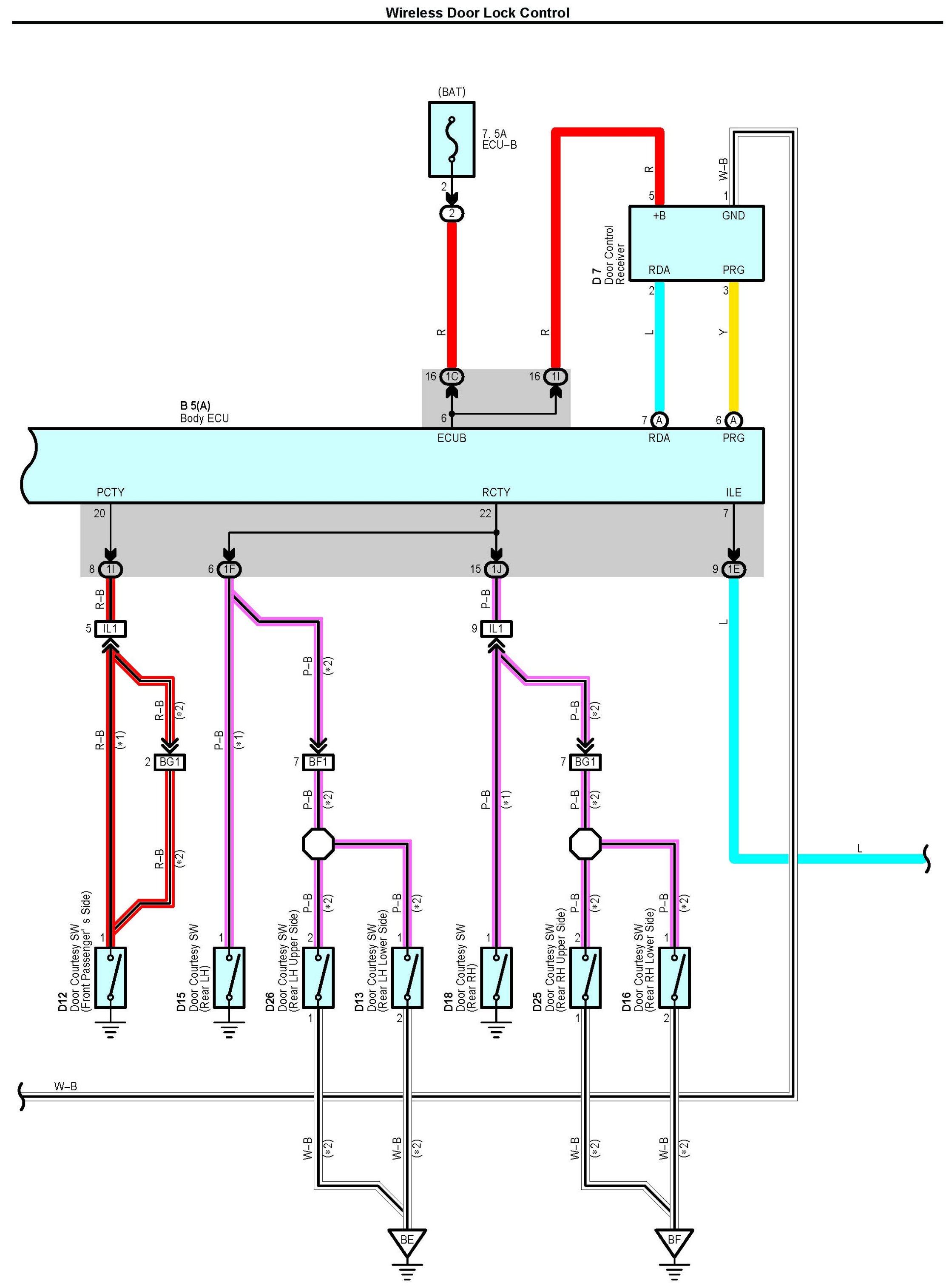

Wireless Door Lock Control Part 1:

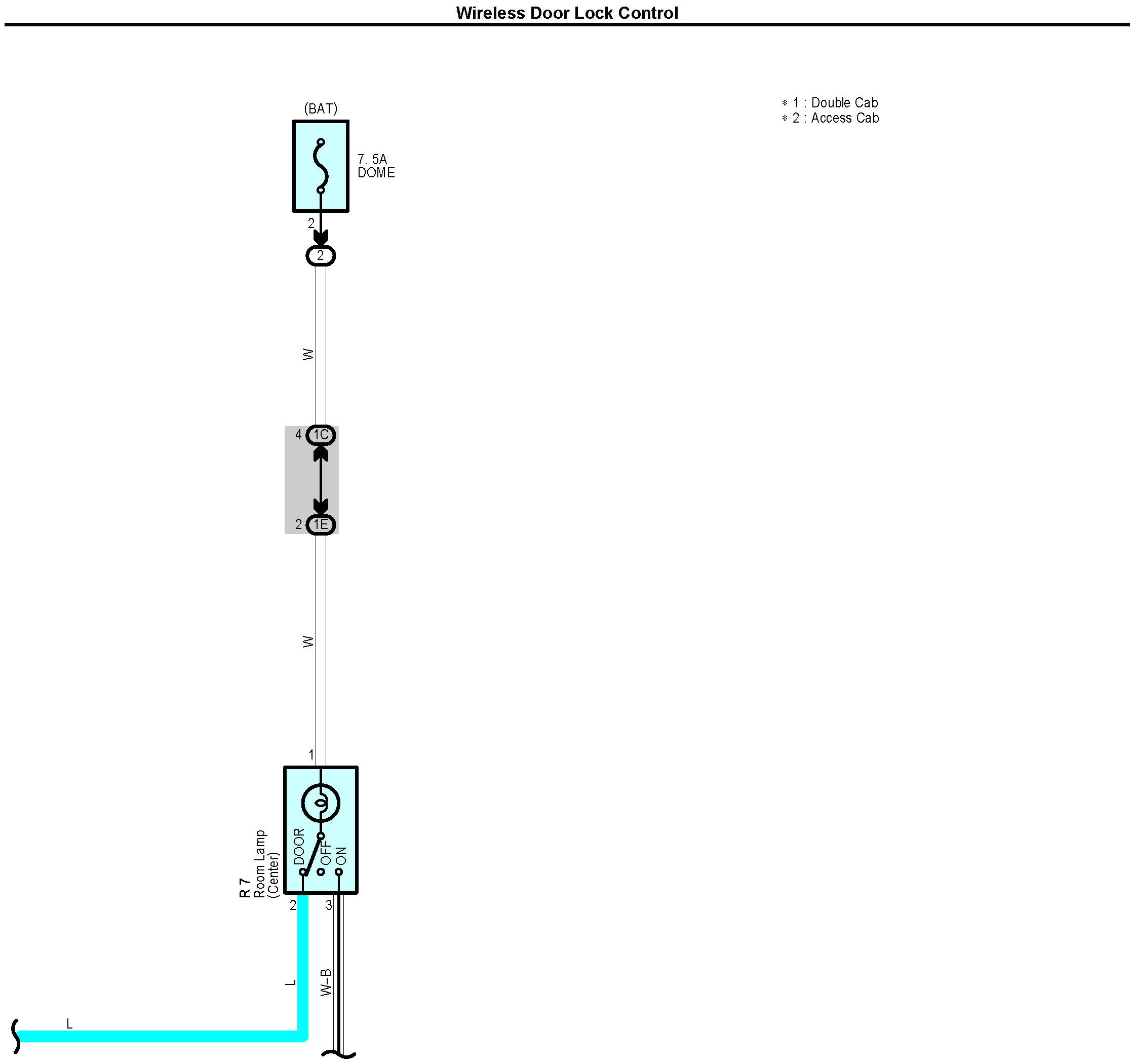

Wireless Door Lock Control Part 2:

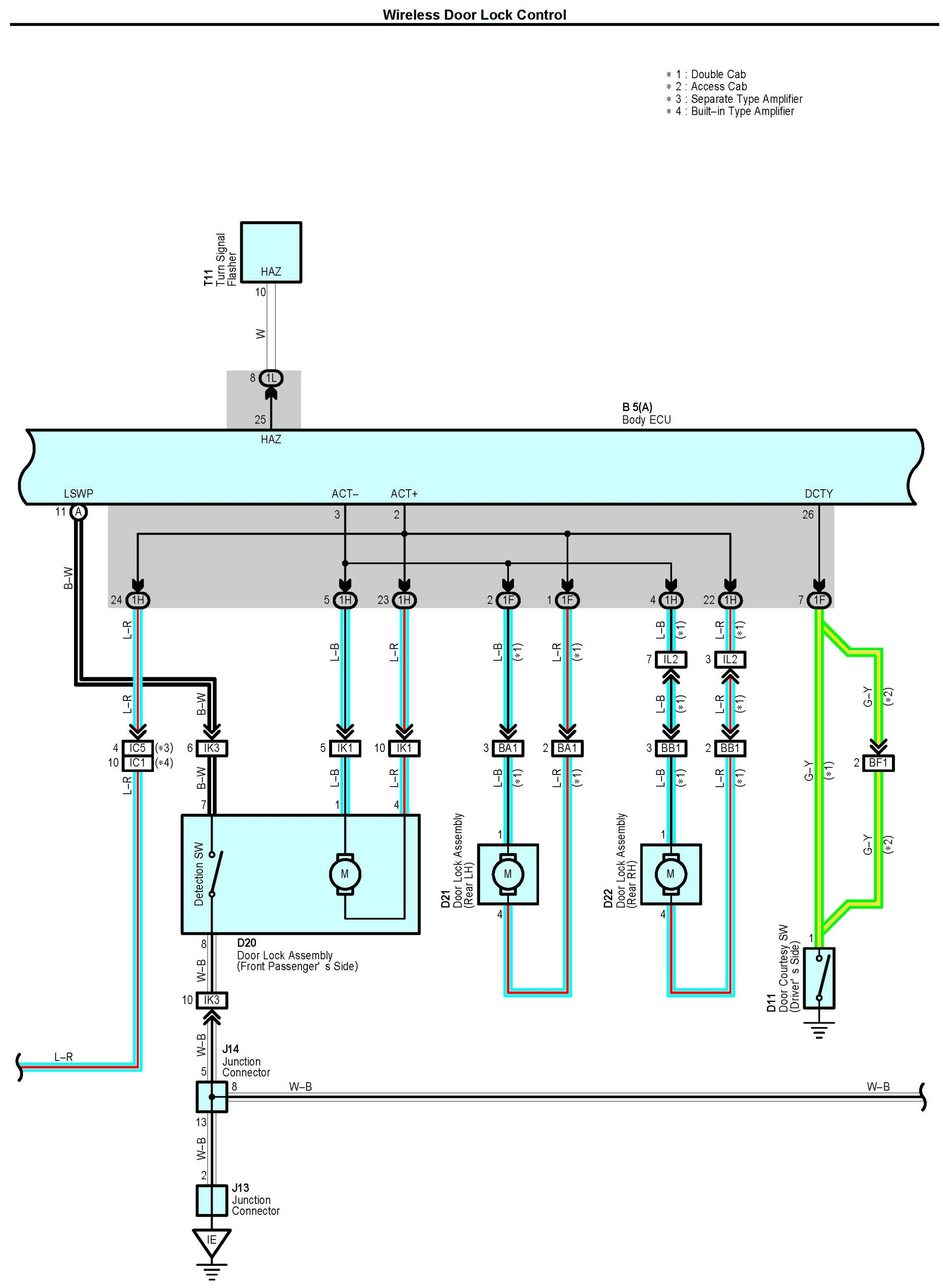

Wireless Door Lock Control Part 3:

Wireless Door Lock Control Part 4:

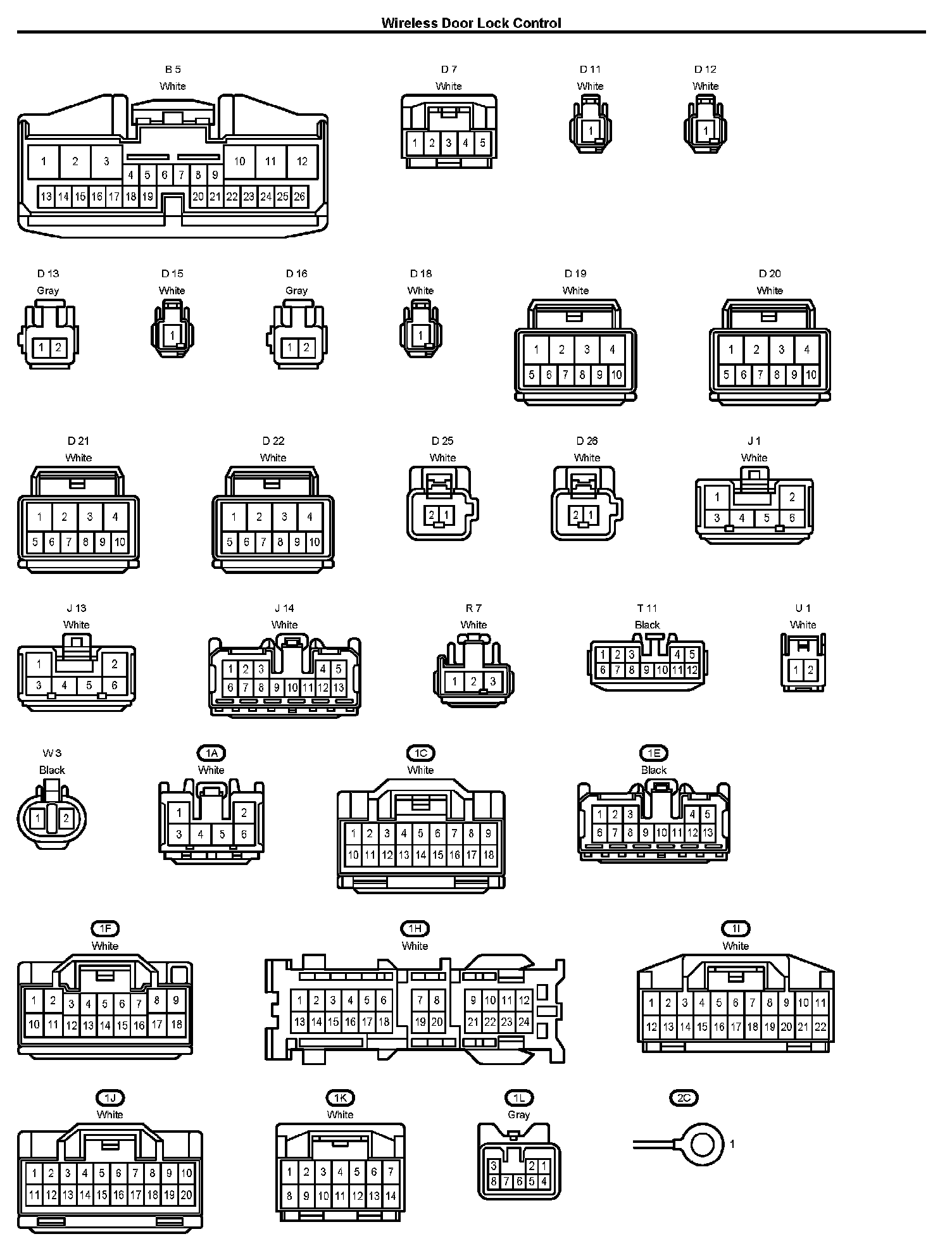

Connectors Part 1:

Connectors Part 2:

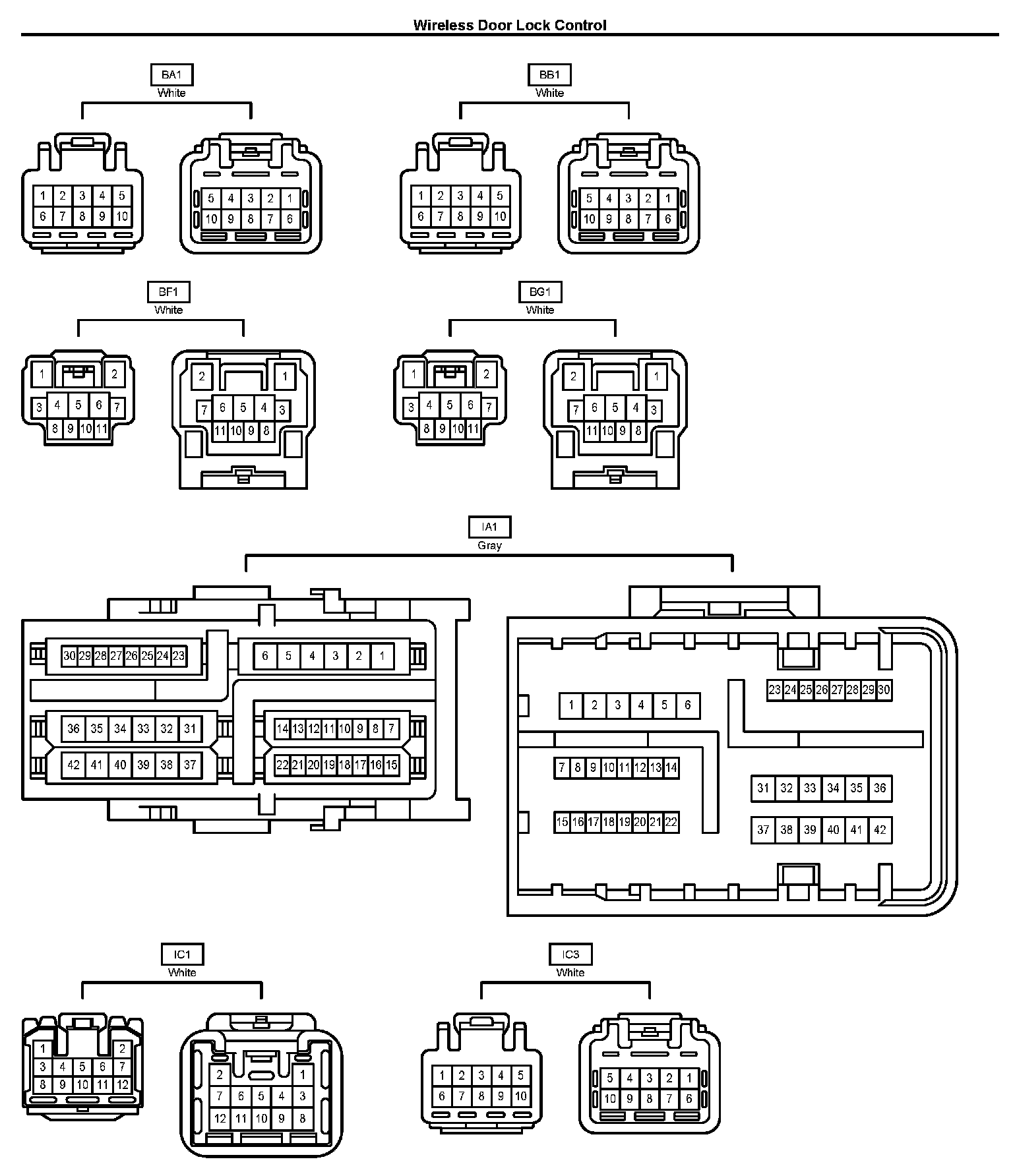

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
