Lighting - DRL/Turn Signal Lens Bubbled/Distorted
T-SB-0129-11September 7, 2011
Headlamp Assembly Appearance Concern
Service Category
Vehicle Exterior
Section
Lighting (ext)
Market
USA

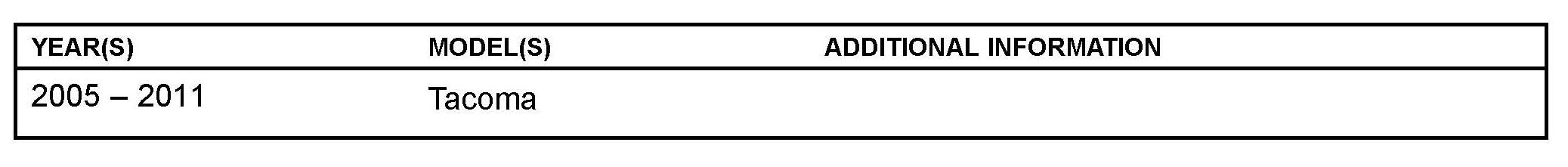

Applicability
Introduction
Some vehicles may experience a condition where the inner Daytime Running Light/Turn Signal lens becomes distorted and bubbled in appearance. In addition the inner lens may appear cracked or separated.
NOTE
This condition should not be confused with normal yellow-orange color that occurs over time as the inner lens ages. Additionally this TSB does NOT address conditions with the outer headlamp lens.
Updated headlight assemblies have been developed to address this condition. The updated headlight assemblies have cosmetic changes so it is recommended to replace both the left and right assemblies together.

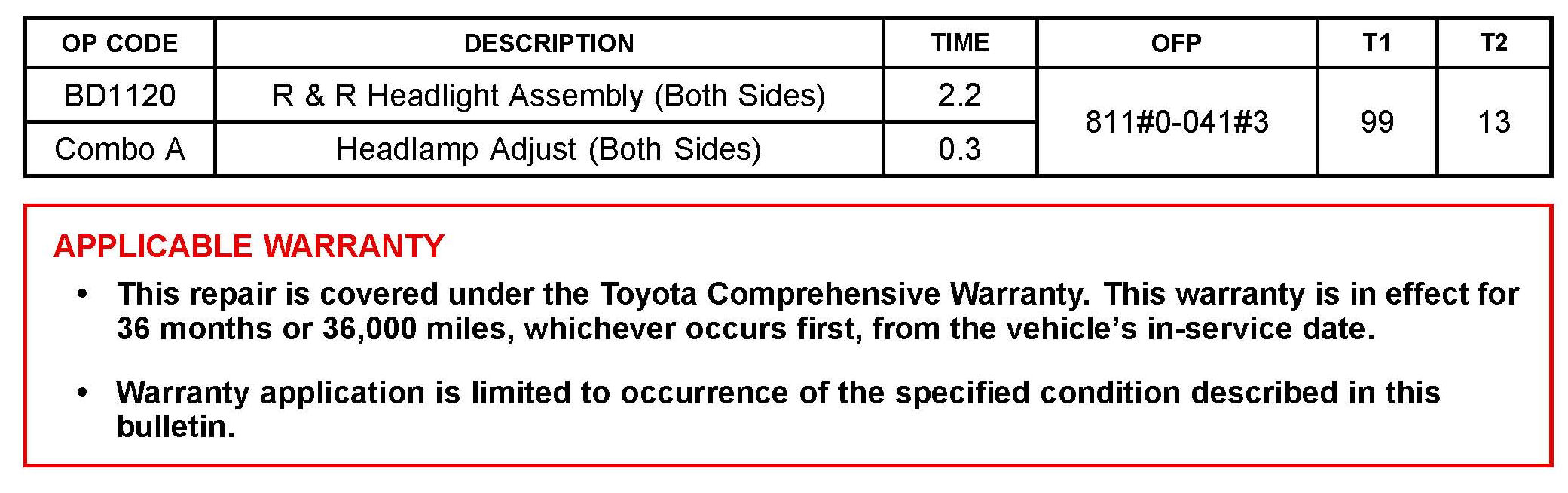

Warranty Information

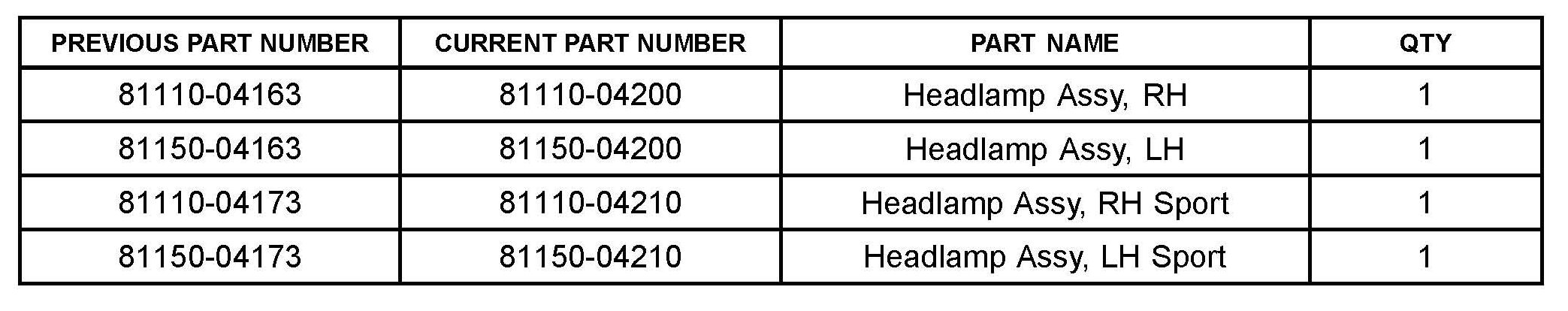

Parts Information
Repair Procedure
NOTE
If the vehicle is being repaired due to damage resulting from an accident, this TSB and part numbers listed do NOT apply. Follow normal parts order and repair procedures.

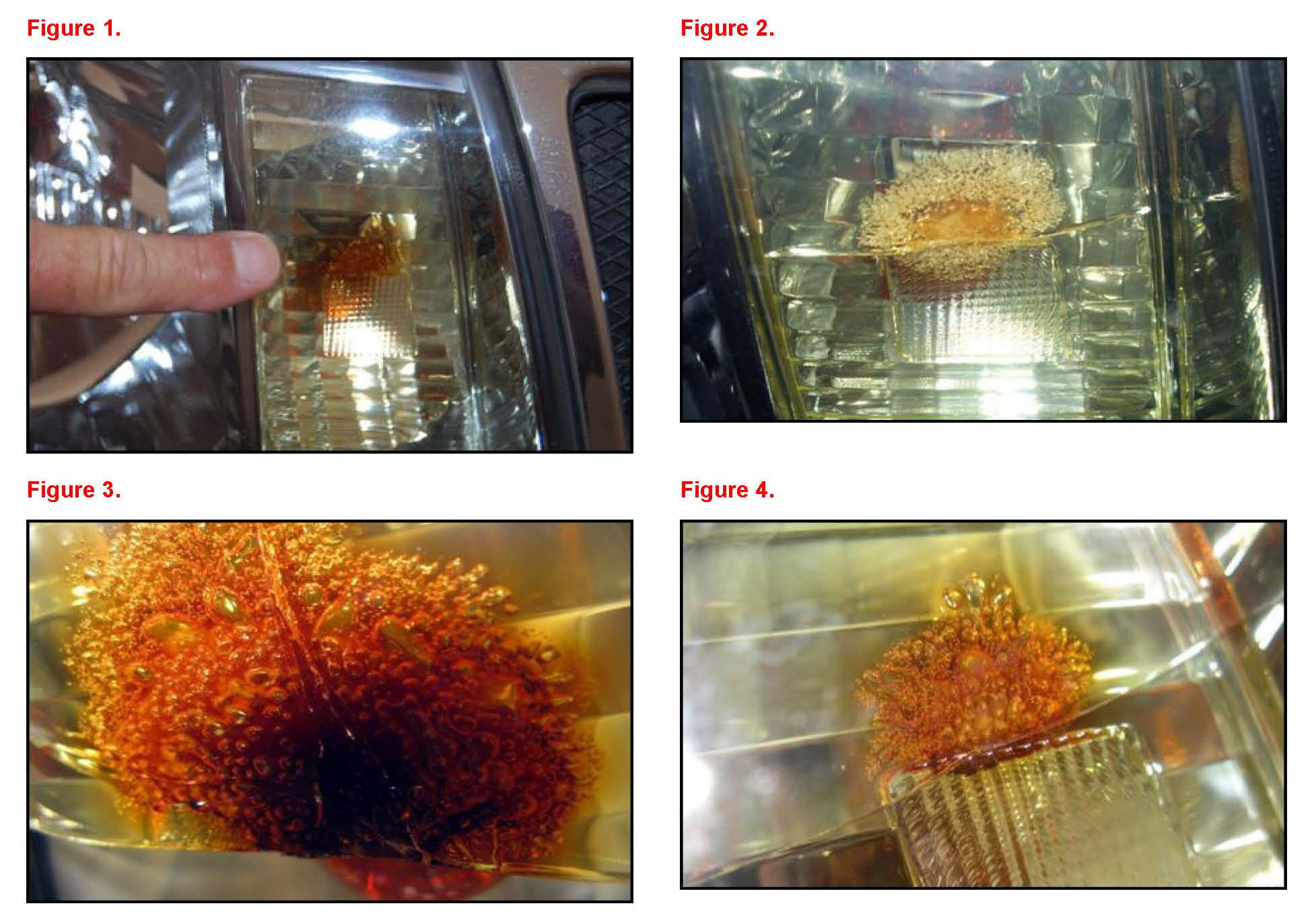

1. Determine if the daytime running lens portion of the headlamp assembly is discolored or has a cracked bubbled deformed or distorted appearance. Following are examples of inner DRL Turn Signal lenses requiring replacement:
2. Are the lenses discolored cracked bubbled or deformed?
YES - Go to step 3.
NO - This TSB does NOT apply.
NOTE
As the inner lens ages it will change from clear to yellow or orange color. If the lenses are a yellow-orange color, no repair is necessary.
3. Replace headlamps.
Refer to the Technical Information System (TIS) applicable model and model year Repair Manual:
^ 2005 / 2006 / 2007 / 2008 / 2009 / 2010 / 2011 Tacoma:
Vehicle Exterior - Lighting - "Headlight Assembly: Repair"
4. Confirm headlamp operation.
