Computers and Control Systems: Description and Operation

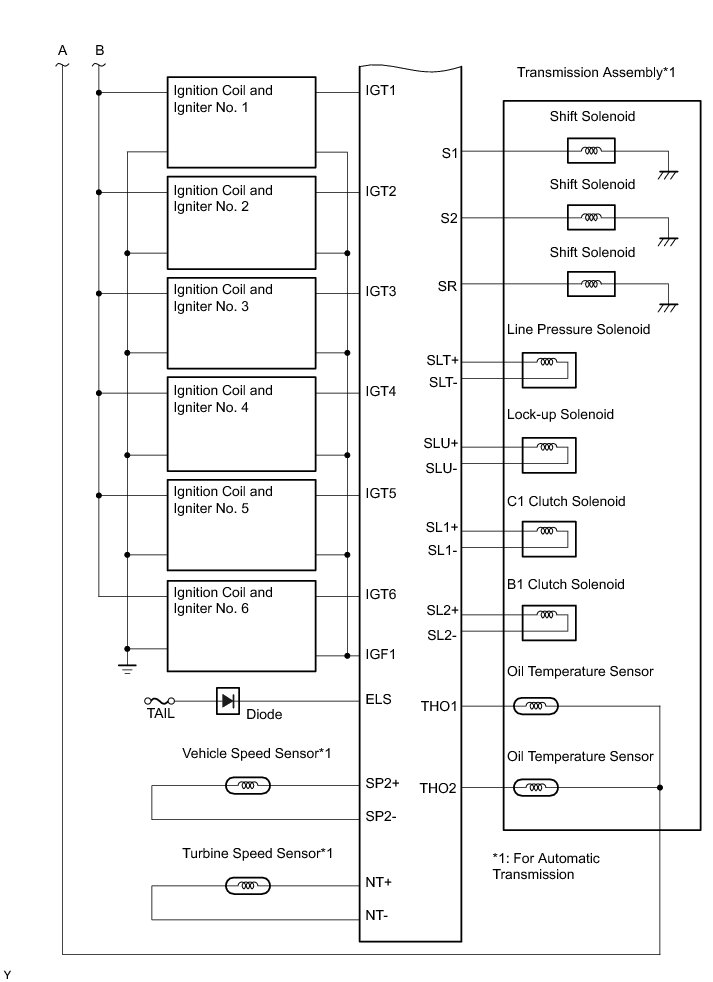

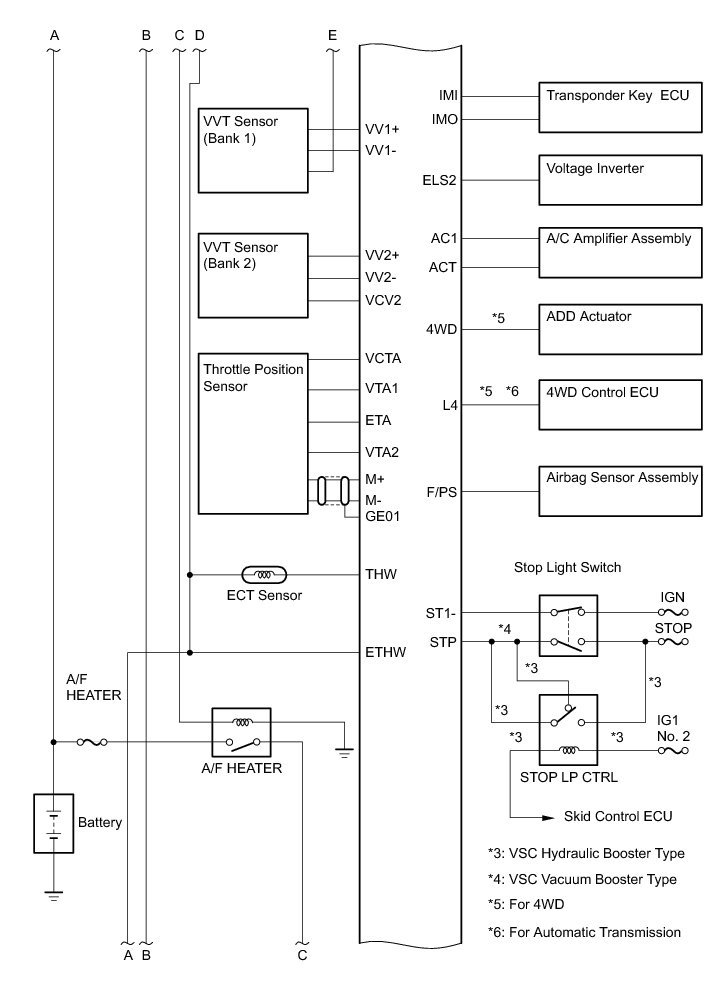

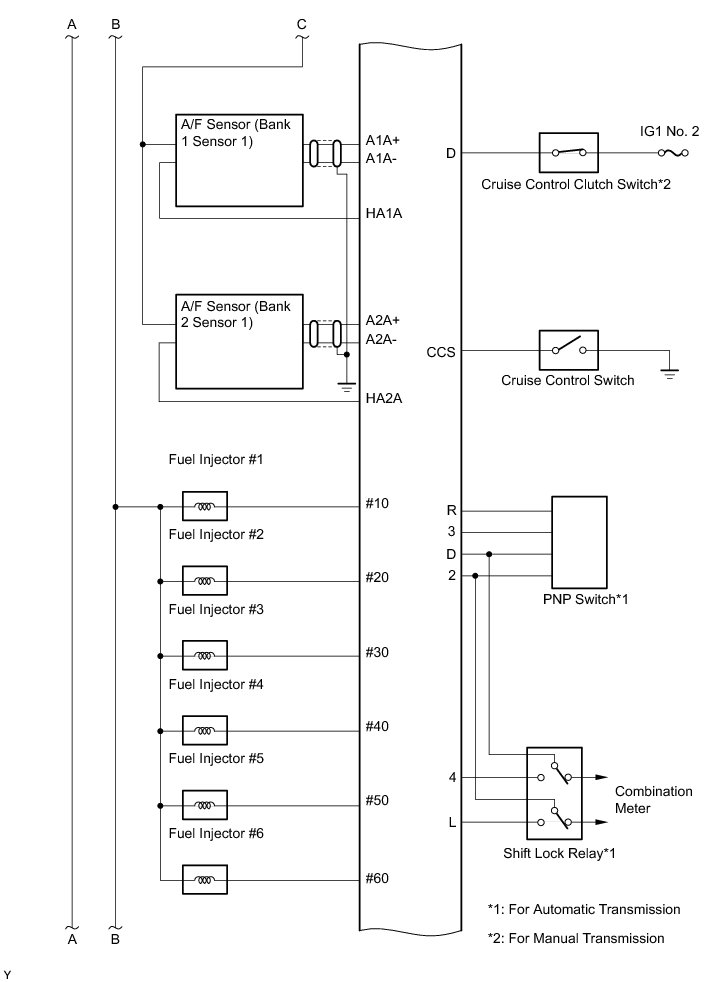

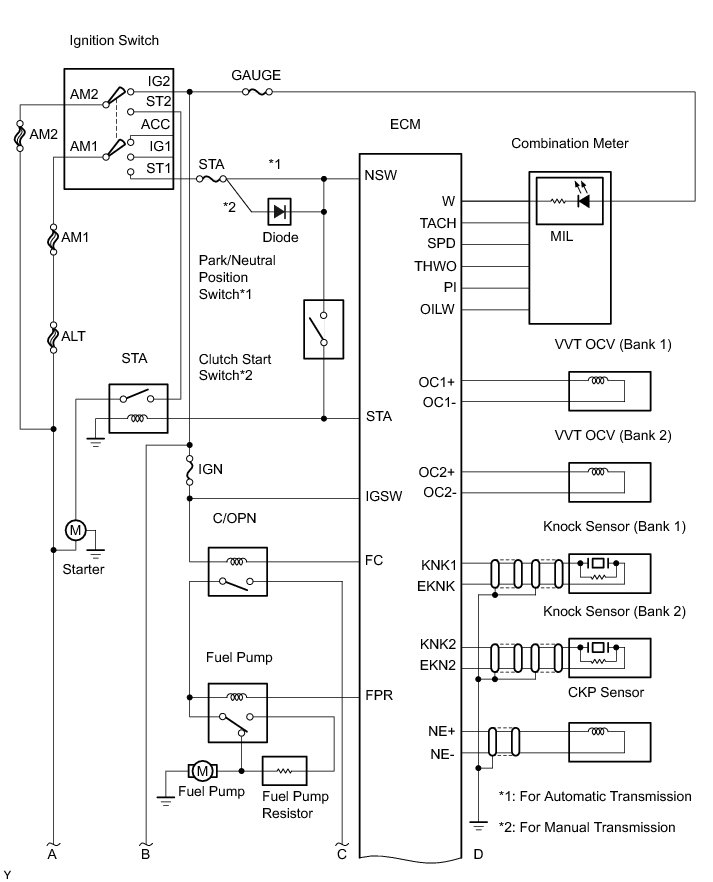

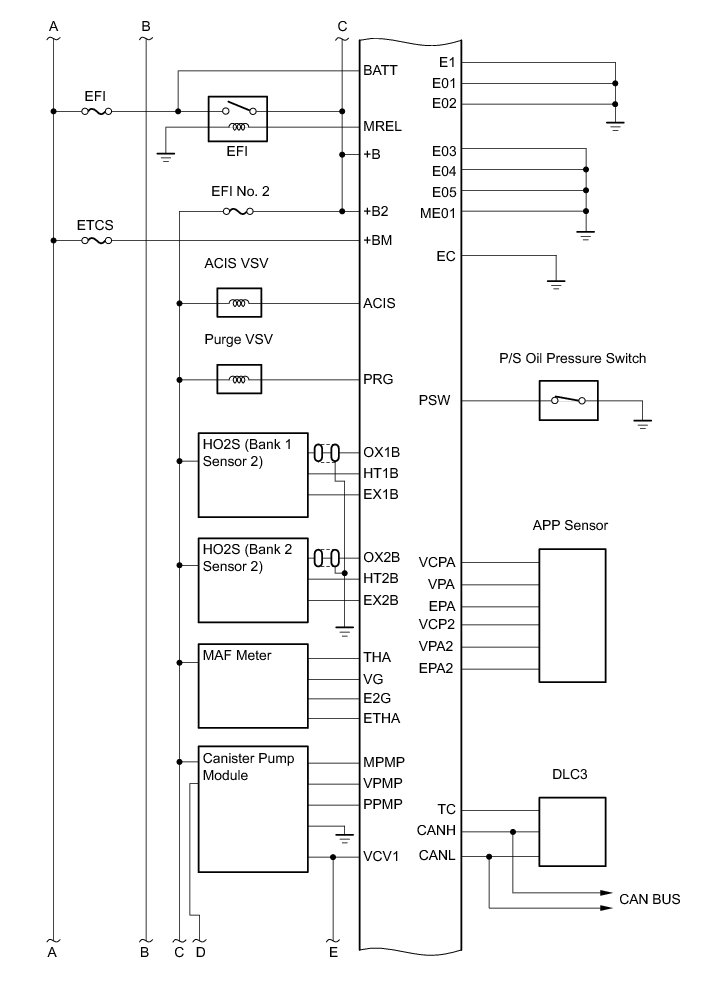

1GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: SYSTEM DIAGRAM
