Entertainment System Control Module: Locations

Instrument Panel (Floor Shift):

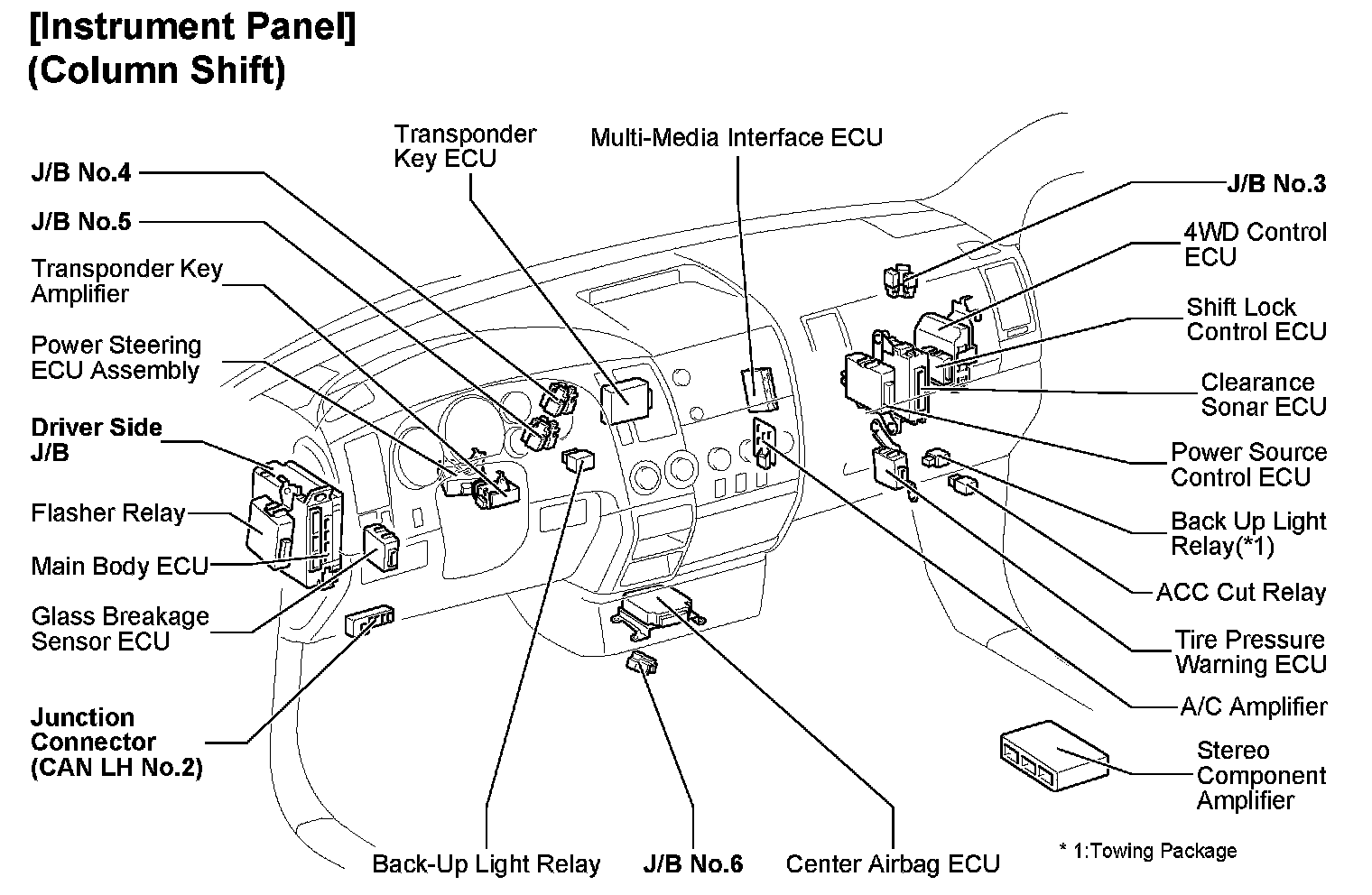

Instrument Panel (Column Shift):
