Fuse Block

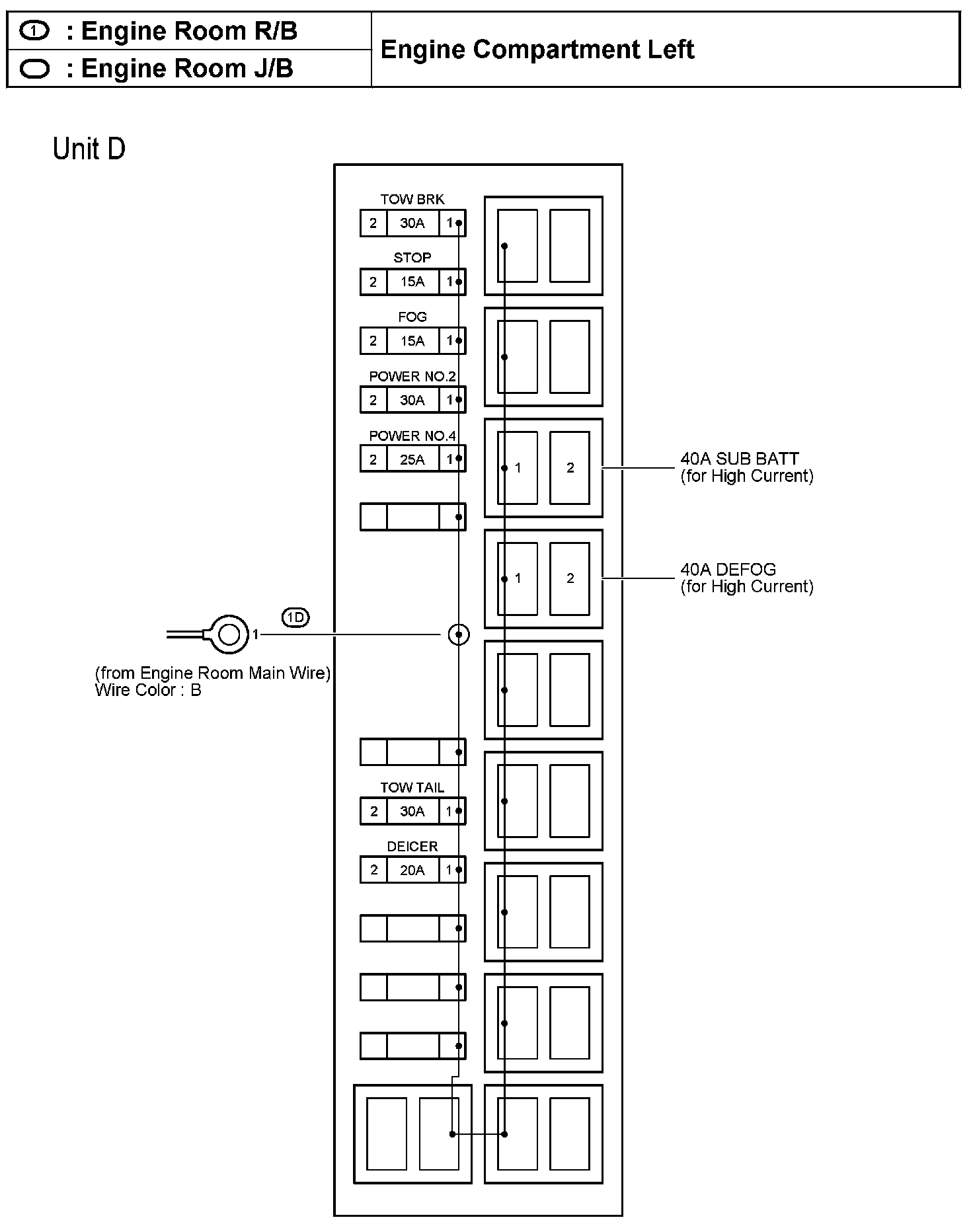

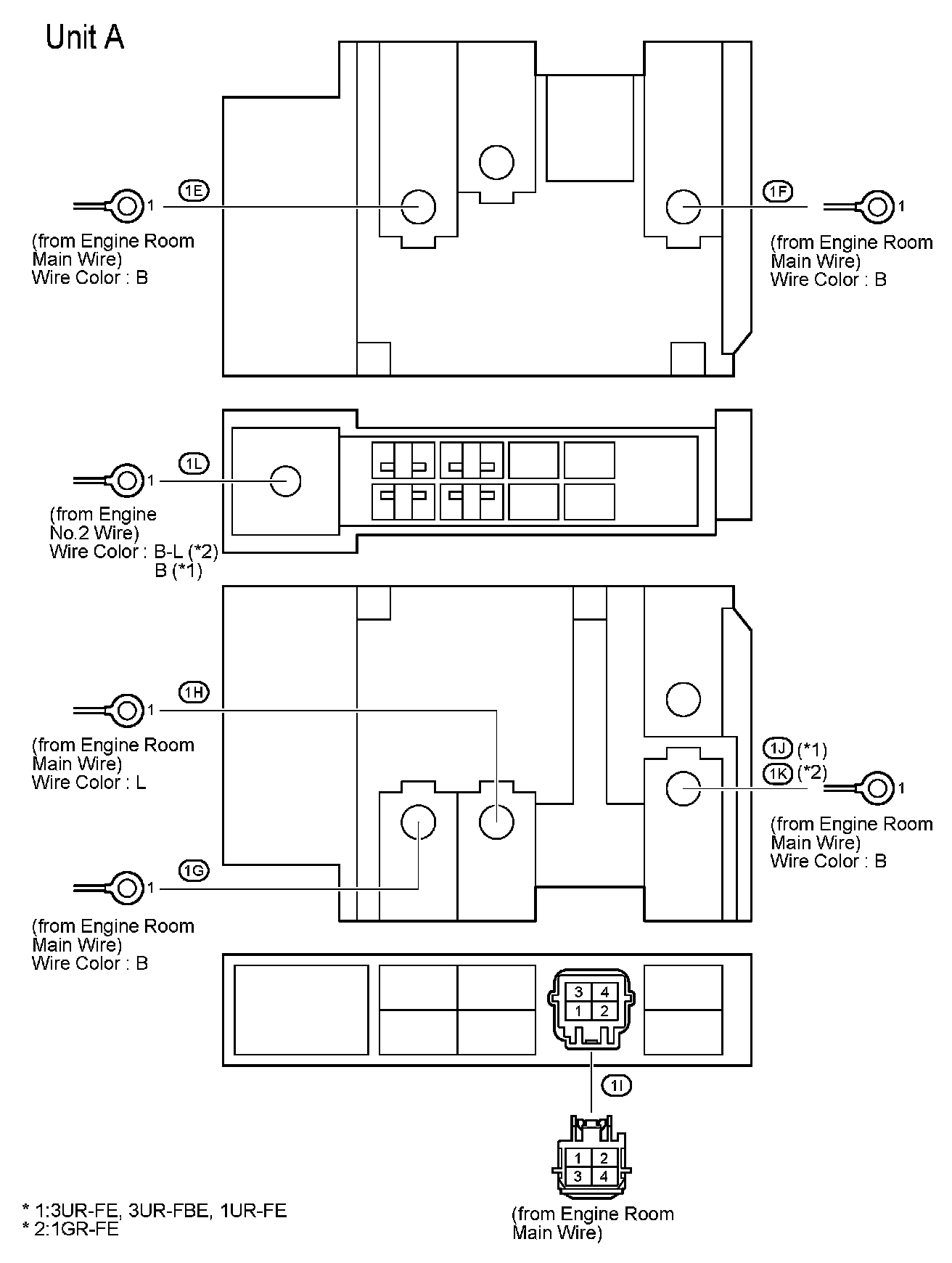

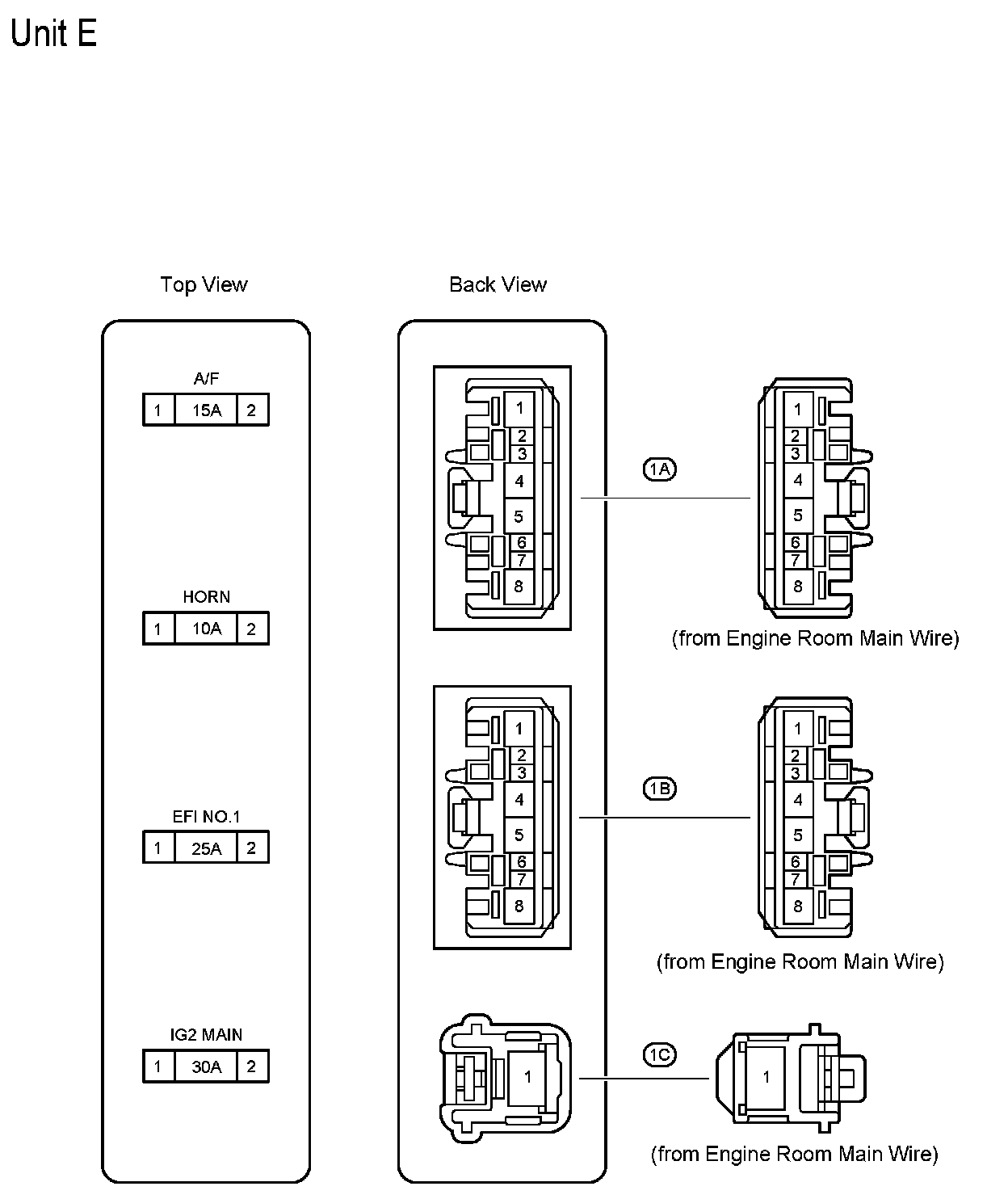

Engine Room R/B, J/B - Engine Compartment Left:

Engine Room R/B, J/B - Engine Compartment Left:

Engine Room R/B, J/B - Engine Compartment Left:

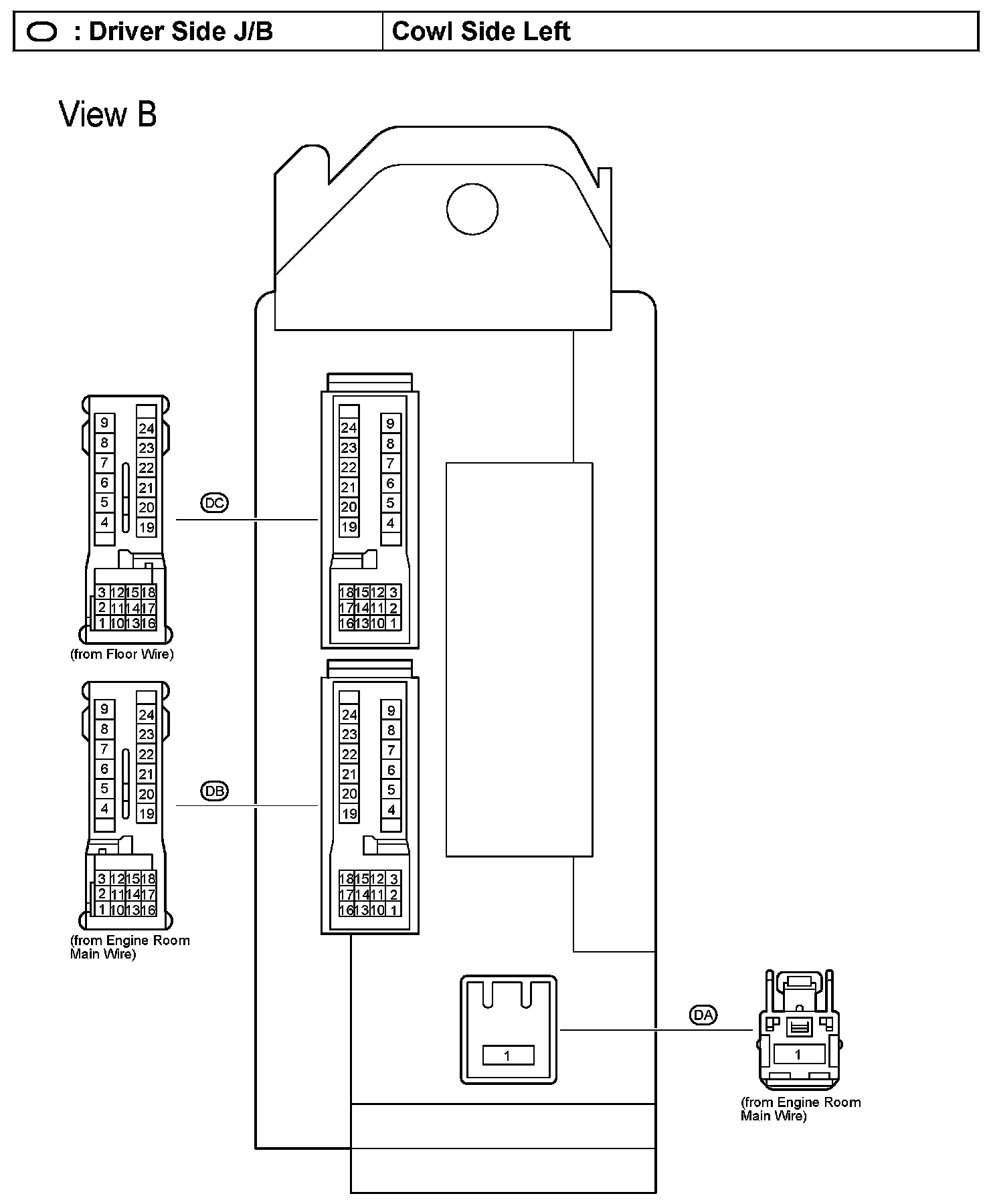

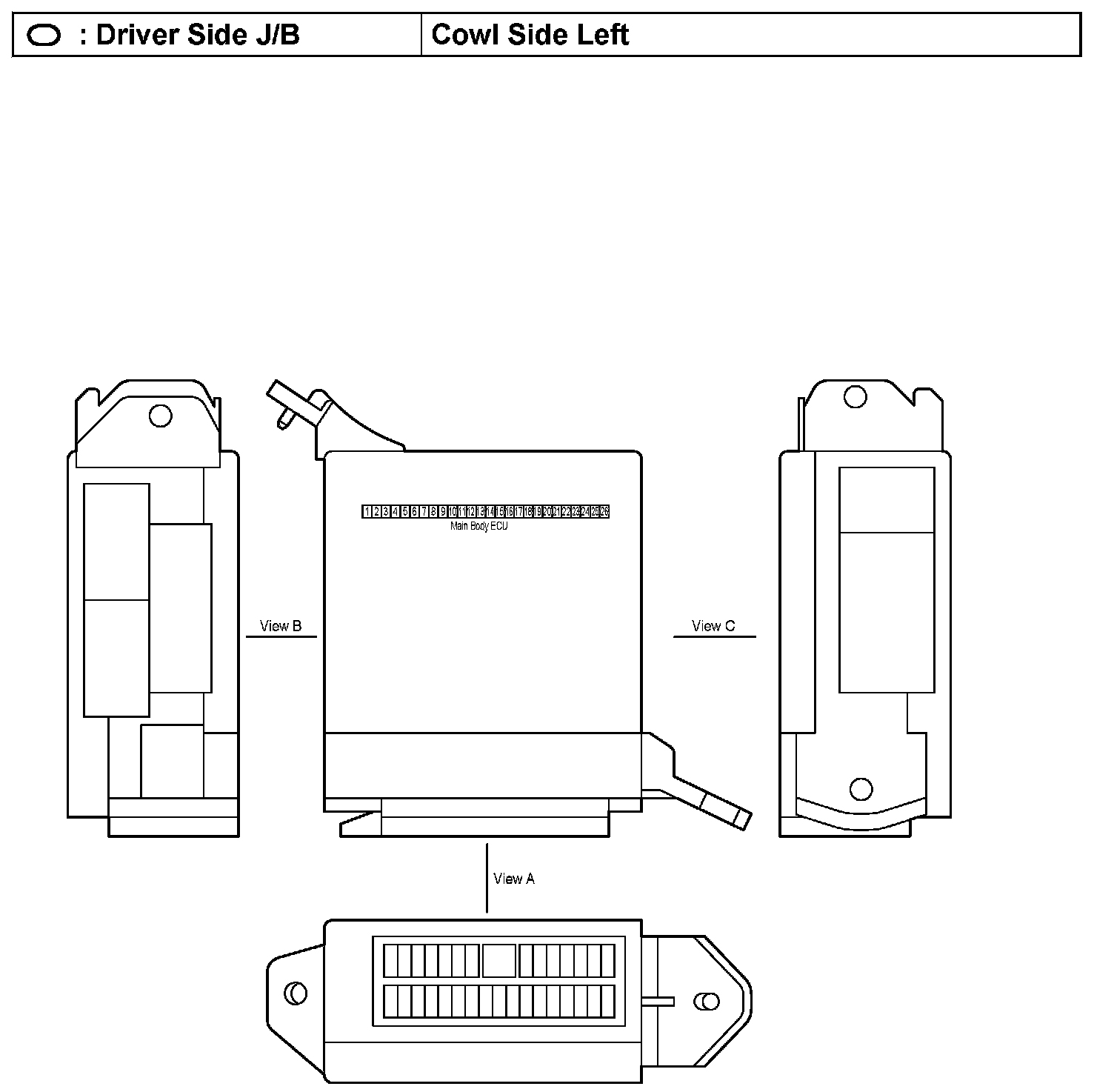

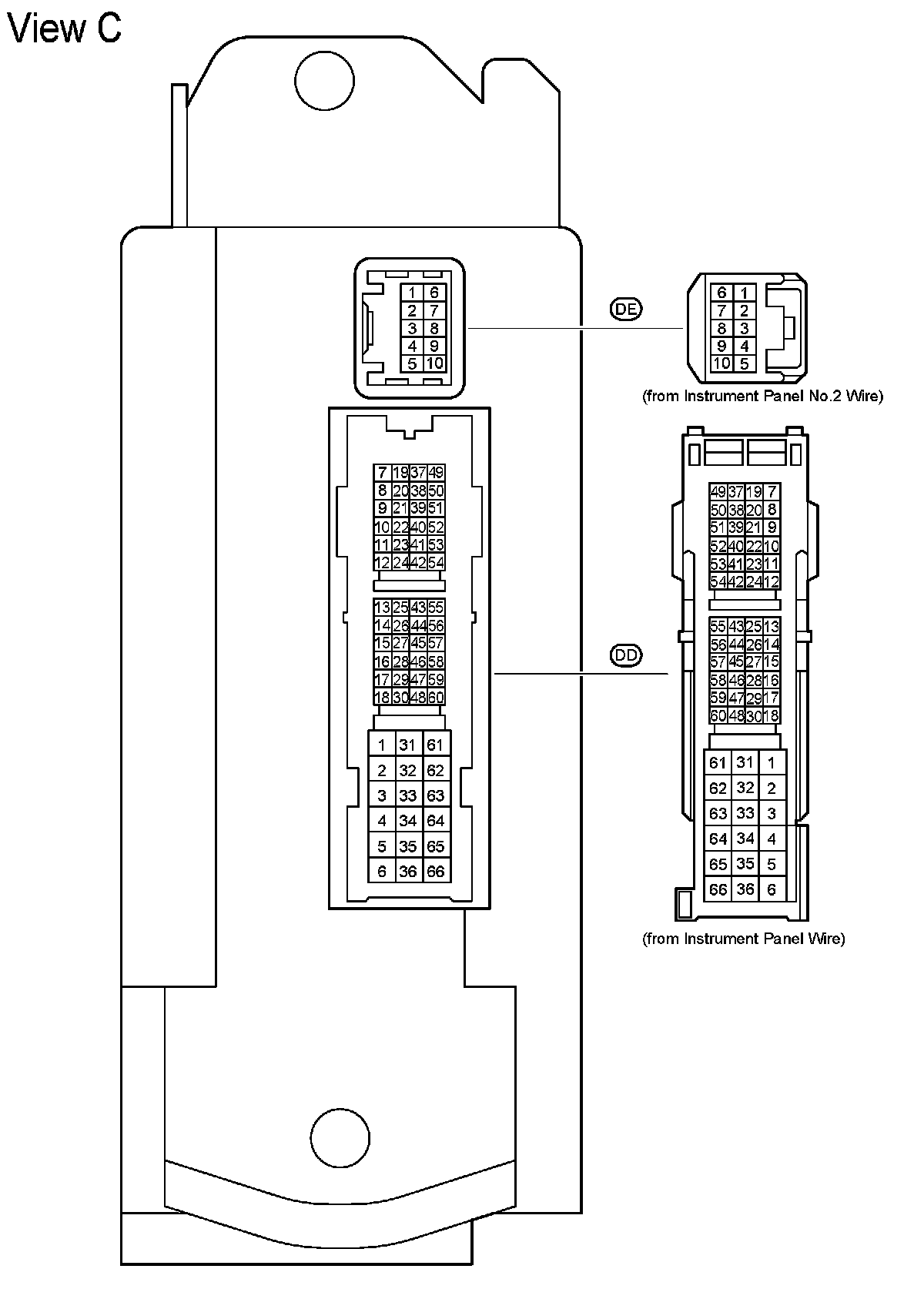

Driver Side J/B - Cowl Side Left:

Driver Side J/B - Cowl Side Left:

Driver Side J/B - Cowl Side Left:

J/B No.3 - Instrument Panel Right:

J/B No.4 - Instrument Panel Center:

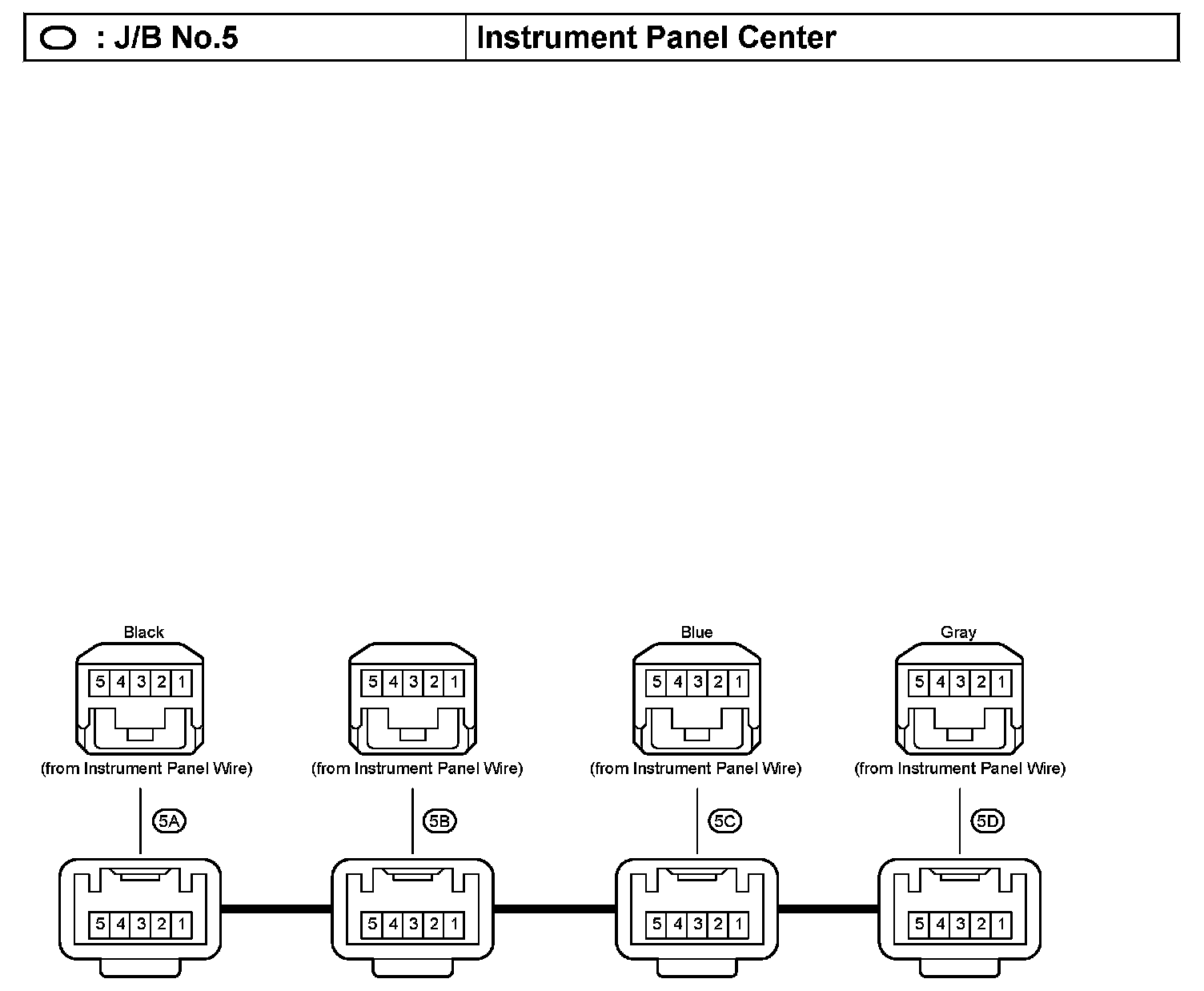

J/B No.5 - Instrument Panel Center:

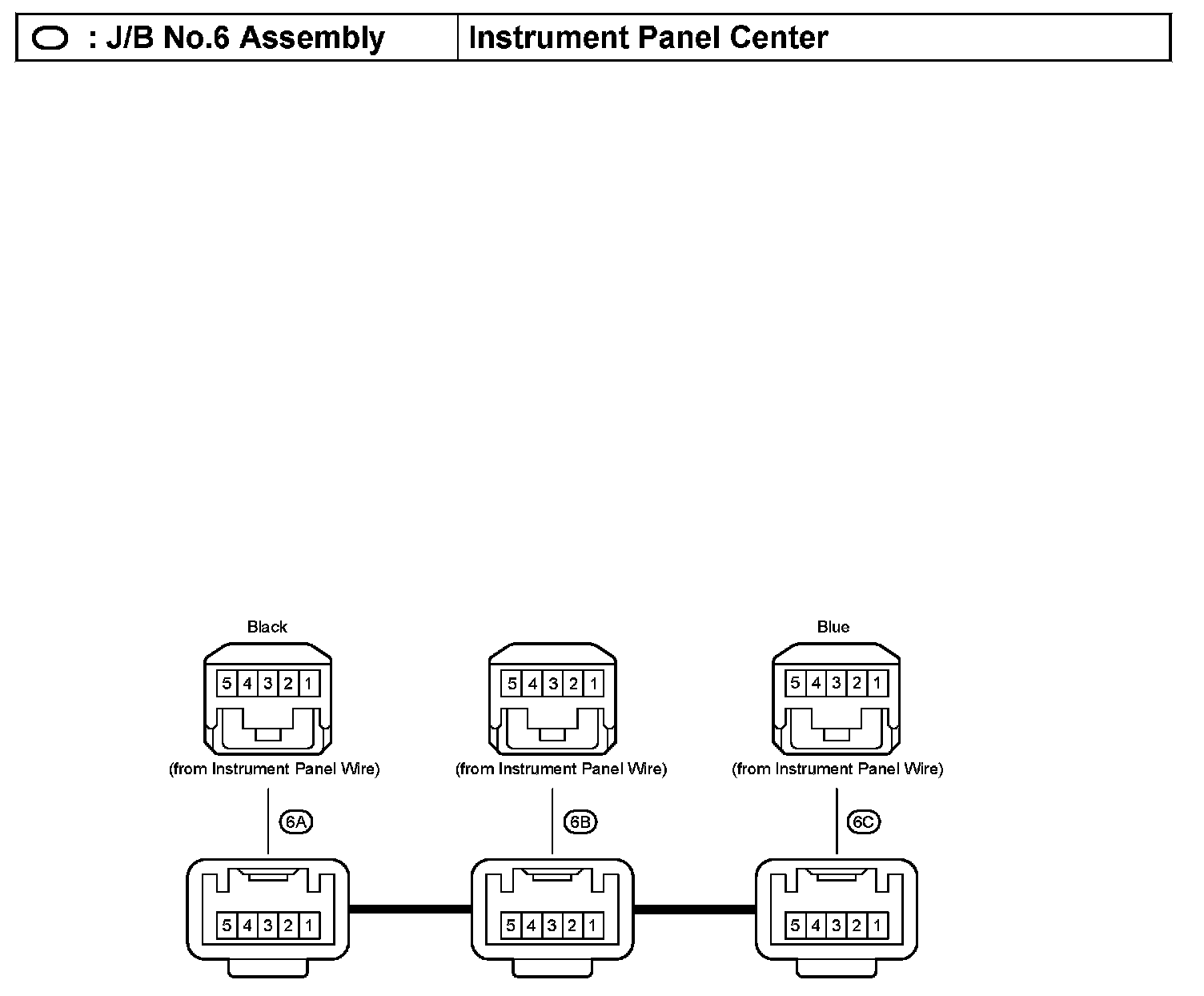

J/B No.6 Assembly - Instrument Panel Center:

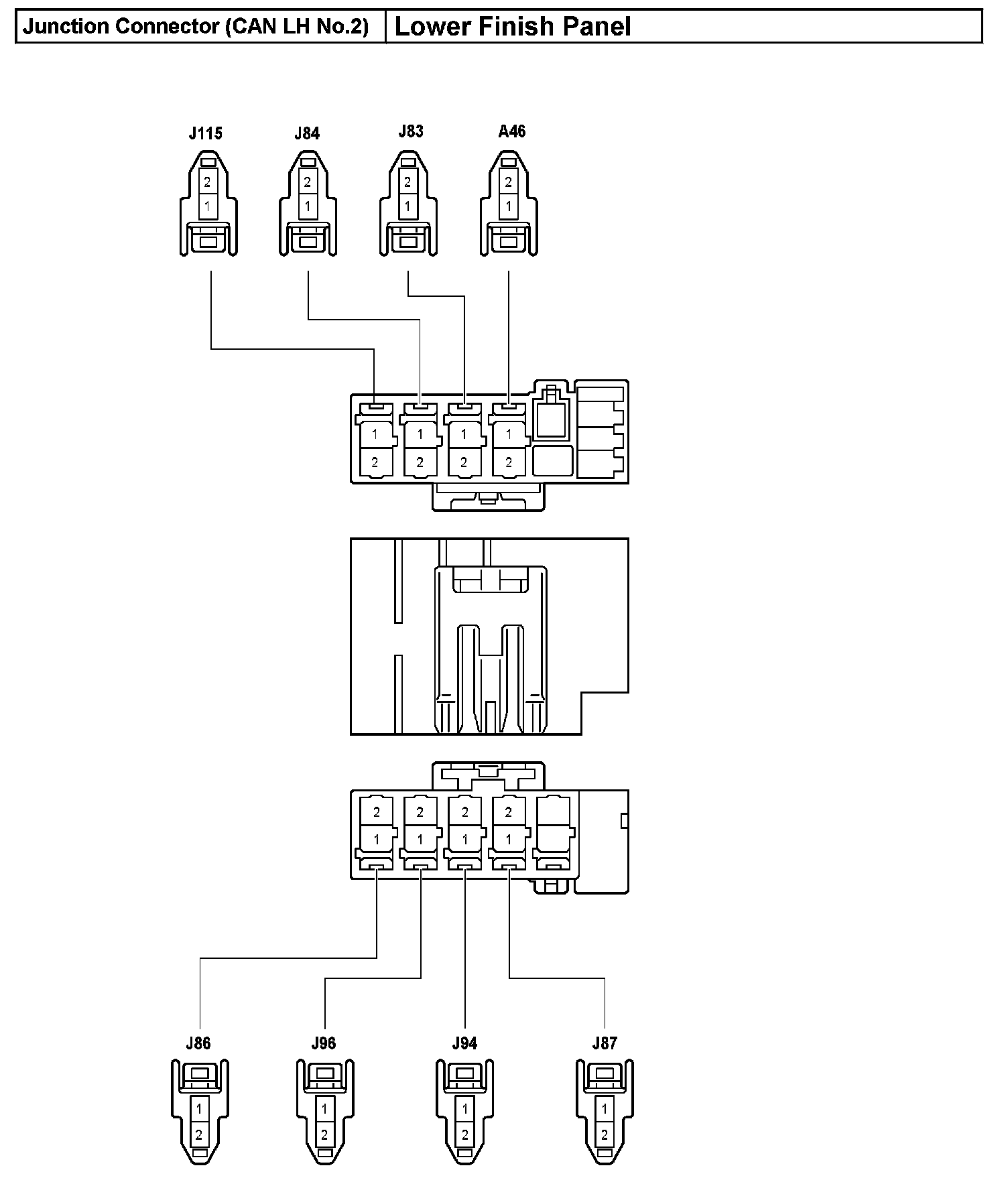

Junction Connector (CAN No.2) - Lower Finish Panel:
