Installation

1GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSTALLATION

1. INSTALL KNOCK SENSOR

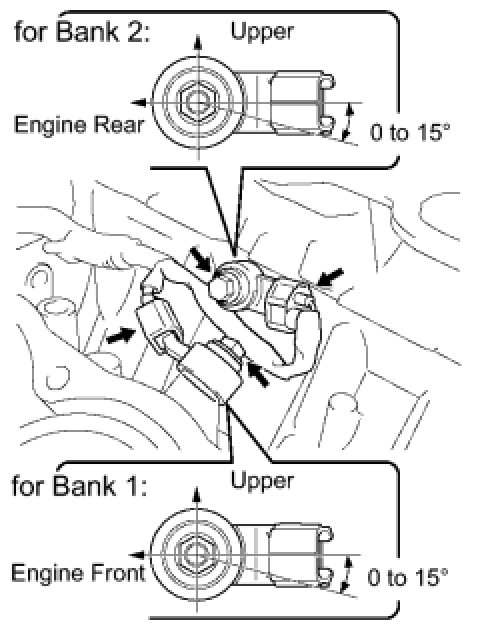

(a) Install the 2 sensors with the 2 bolts as shown in the illustration.





Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

(b) Connect the 2 sensor connectors.

2. INSTALL NO. 1 WATER OUTLET PIPE

(a) Install the water outlet pipe with the bolt and 2 nuts.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Install the 4 wire harness clamps.

3. INSTALL CYLINDER HEAD SUB-ASSEMBLY RH (for Bank 1)

(a) Install the cylinder head RH Installation.

4. INSTALL ENGINE ASSEMBLY

(a) Install the engine Installation.
