1GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: REMOVAL

1. REMOVE ENGINE ASSEMBLY

(a) Remove the engine Removal.

2. REMOVE CYLINDER HEAD SUB-ASSEMBLY RH (for Bank 1)

(a) Remove the cylinder head RH Removal.

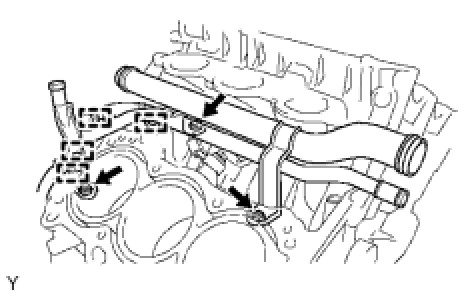

3. REMOVE NO. 1 WATER OUTLET PIPE

(a) Remove the 4 wire harness clamps.





(b) Remove the bolt, 2 nuts and water outlet pipe.

4. REMOVE KNOCK SENSOR

(a) Disconnect the 2 sensor connectors.





(b) Remove the 2 bolts and 2 sensors.
