SERVICE SPECIFICATIONS: 1GR-FE EMISSION CONTROL: SERVICE DATA

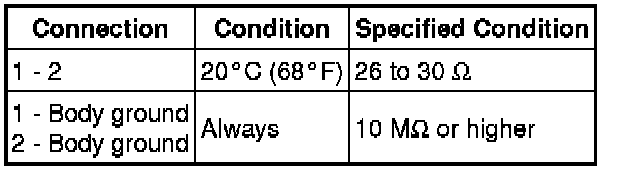

Air pump:

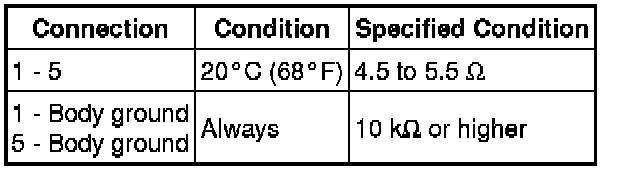

Air switching valve:
Purge valve:
