Intake Manifold

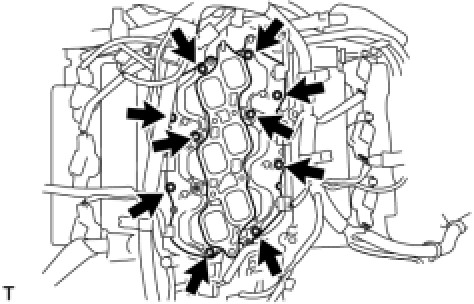

INTAKE MANIFOLD SUB-ASSEMBLY

Install and uniformly tighten the 10 bolts in several passes.






Torque 26 Nm (265 kgf-cm, 19 ft-lbf)

Intake Surge Tank

Install the intake air surge tank with the 4 bolts and 2 nuts.





Torque 28 Nm (286 kgf-cm, 21 ft-lbf)
