Problem Symptoms Table

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function): PROBLEM SYMPTOMS TABLE

HINT

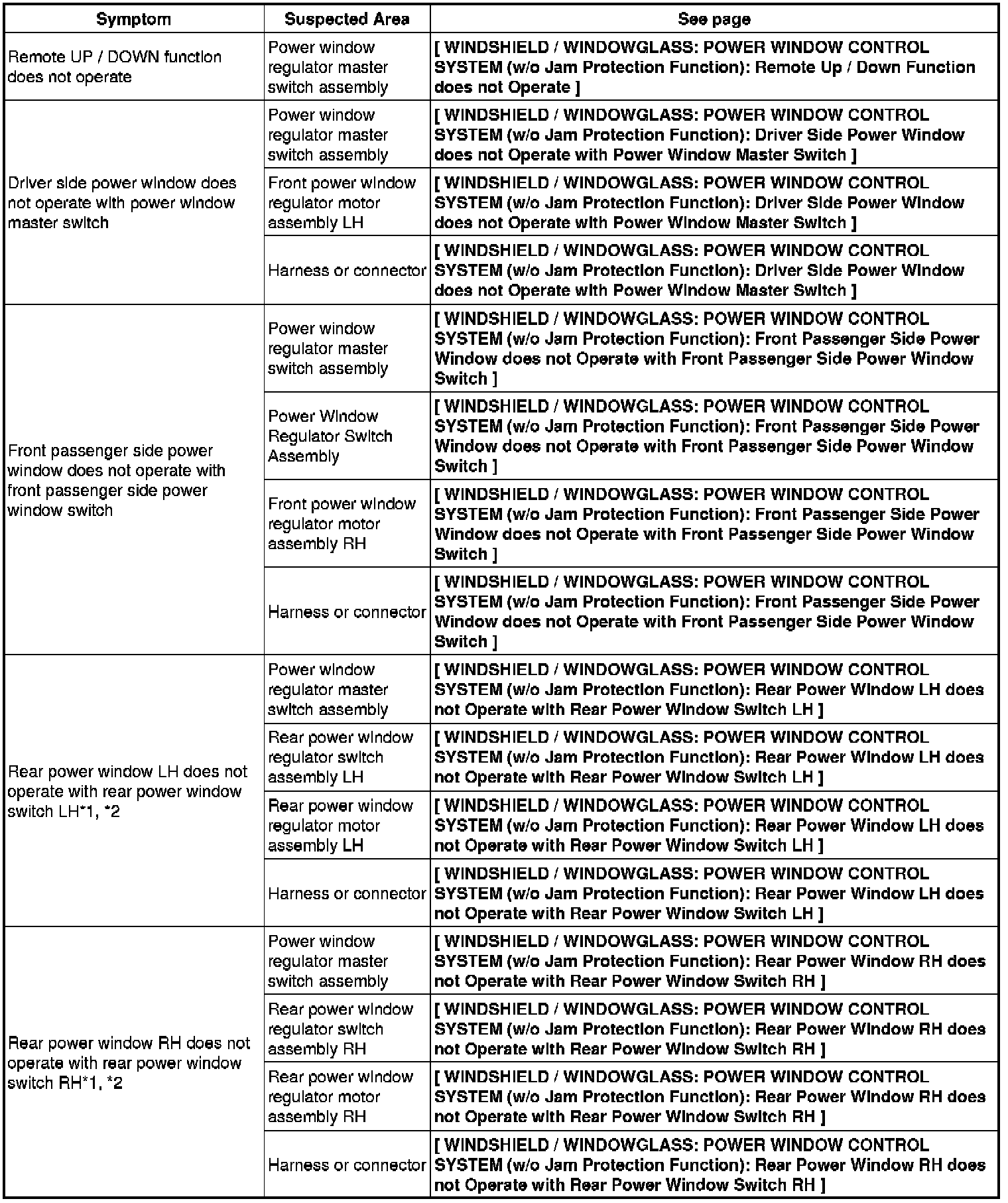

* Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
* Inspect the fuses and relays related to the system before inspecting the suspected areas below.










* *1: for Double Cab

* *2: for CrewMax





* *1: for CrewMax

* *2: for Double Cab, for Power Slide Type
