Windows

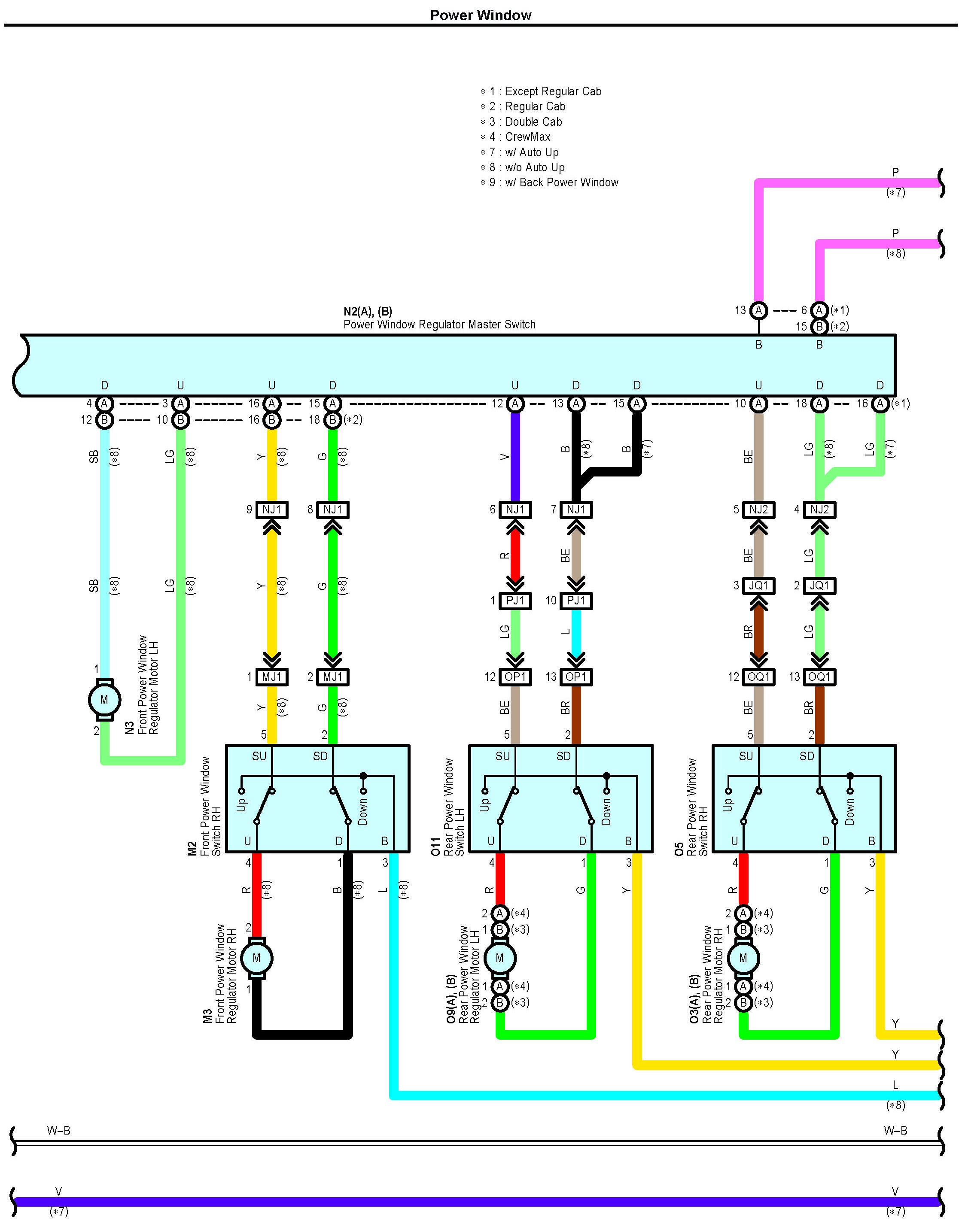

Power Window Part 1:

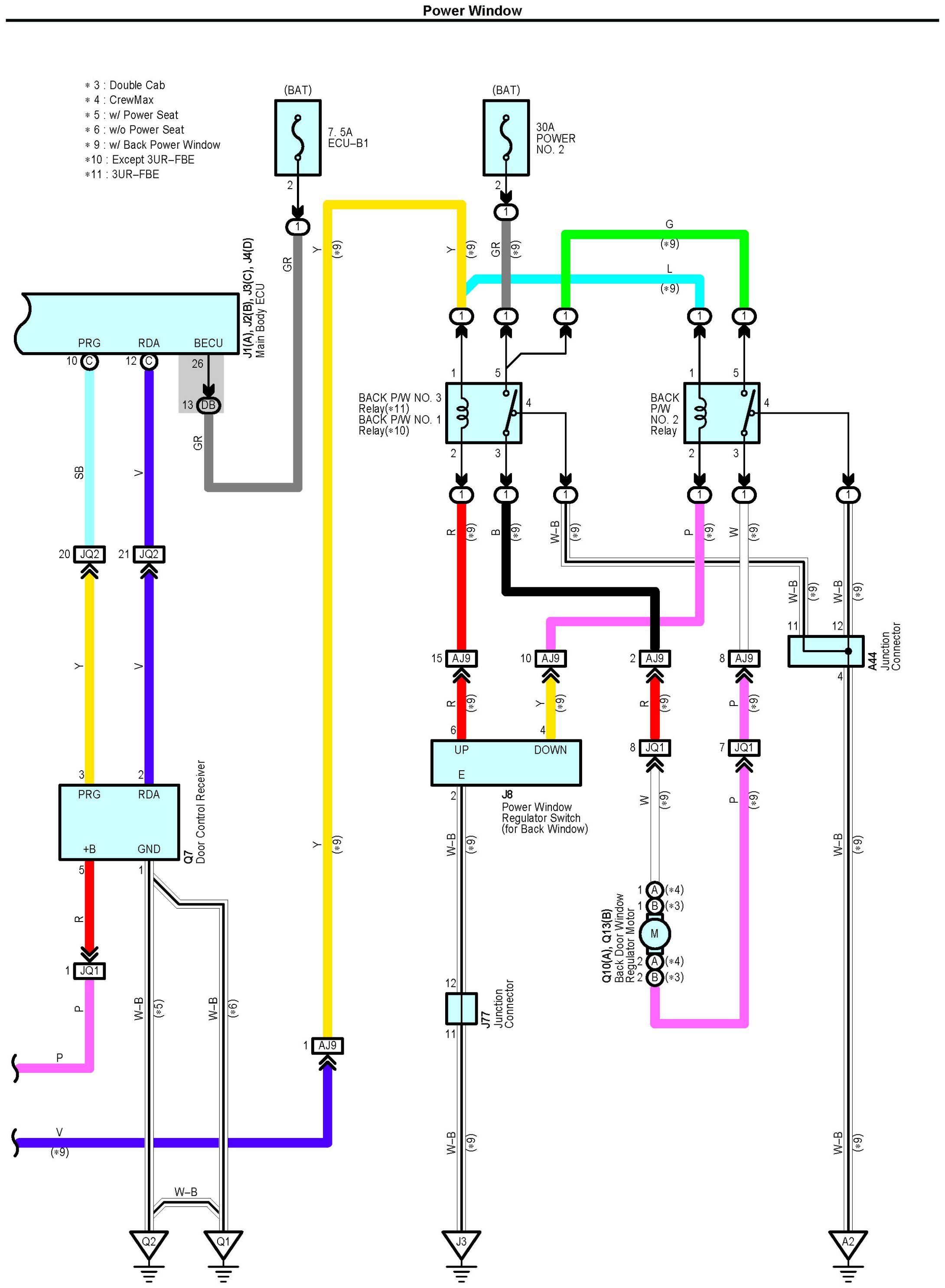

Power Window Part 2:

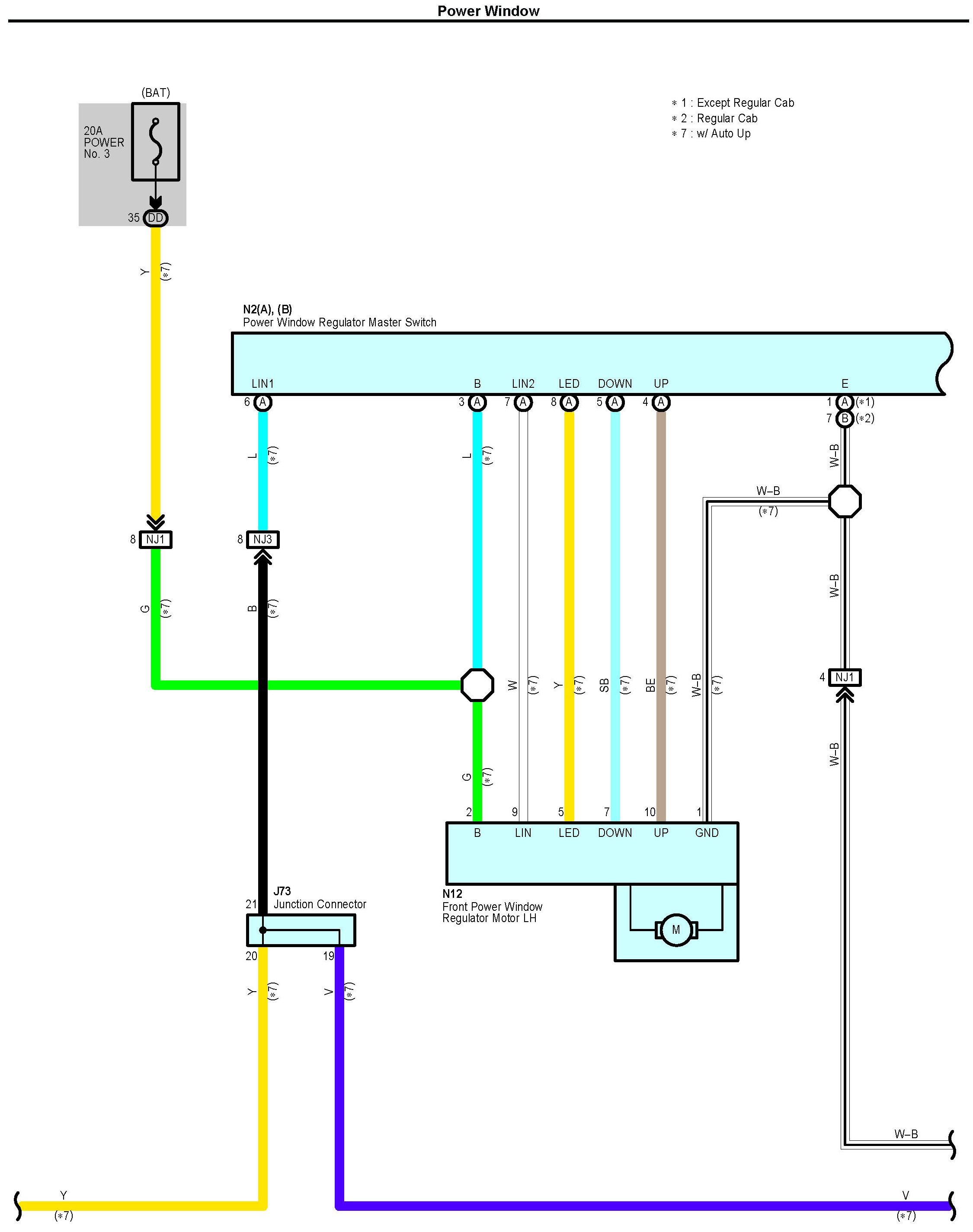

Power Window Part 3:

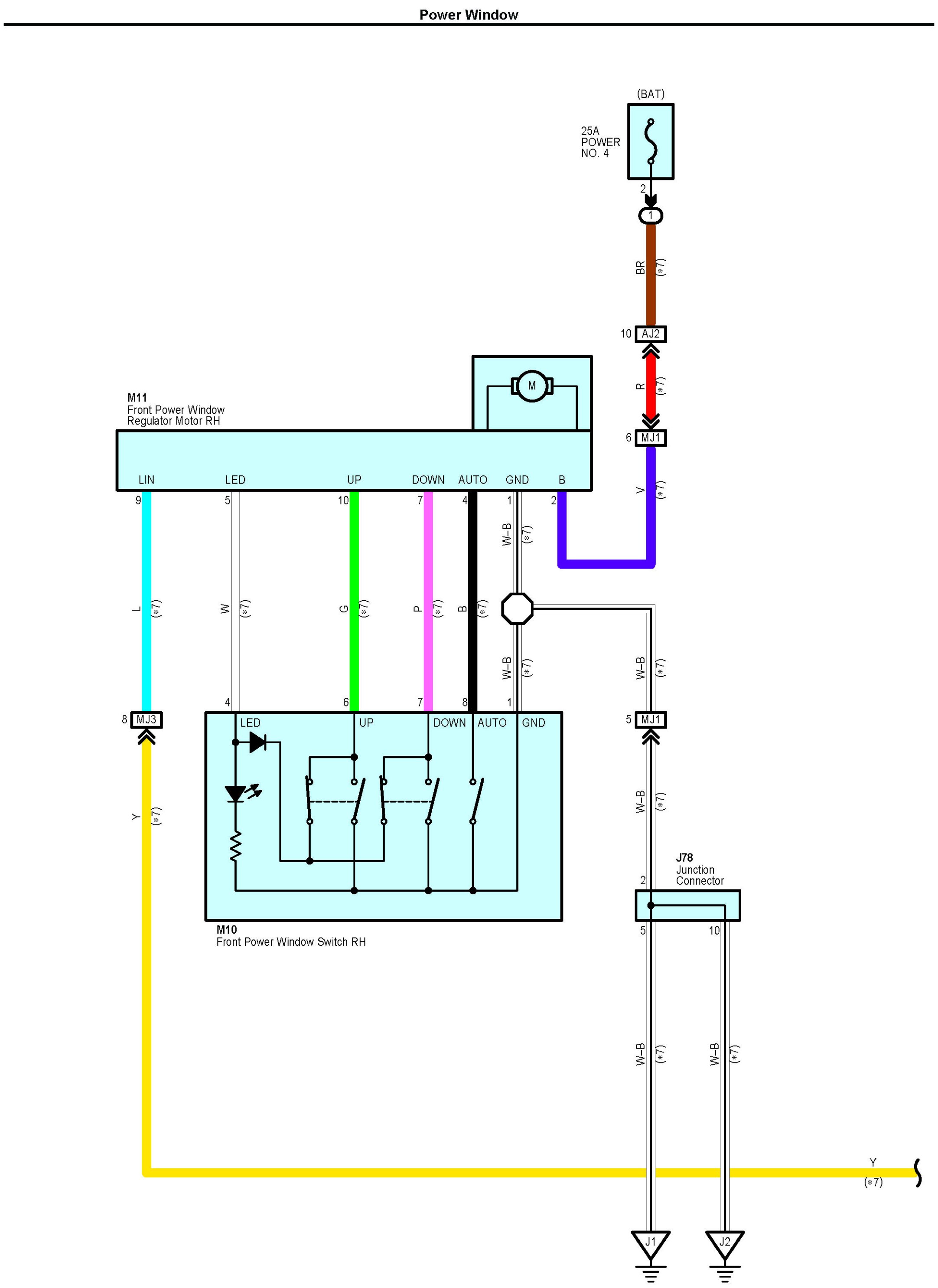

Power Window Part 4:




Power Window Part 5:

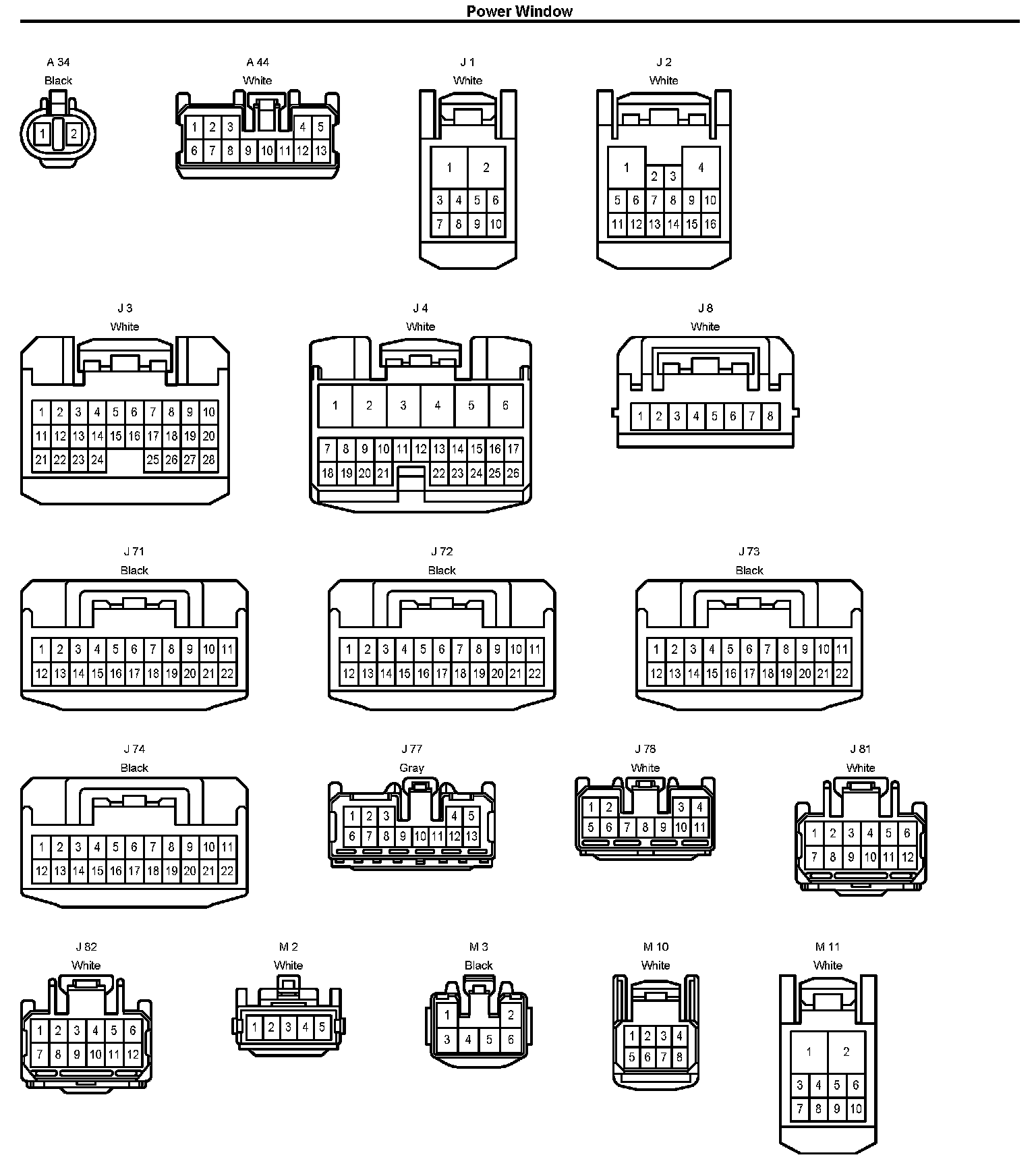

Connectors Part 1:

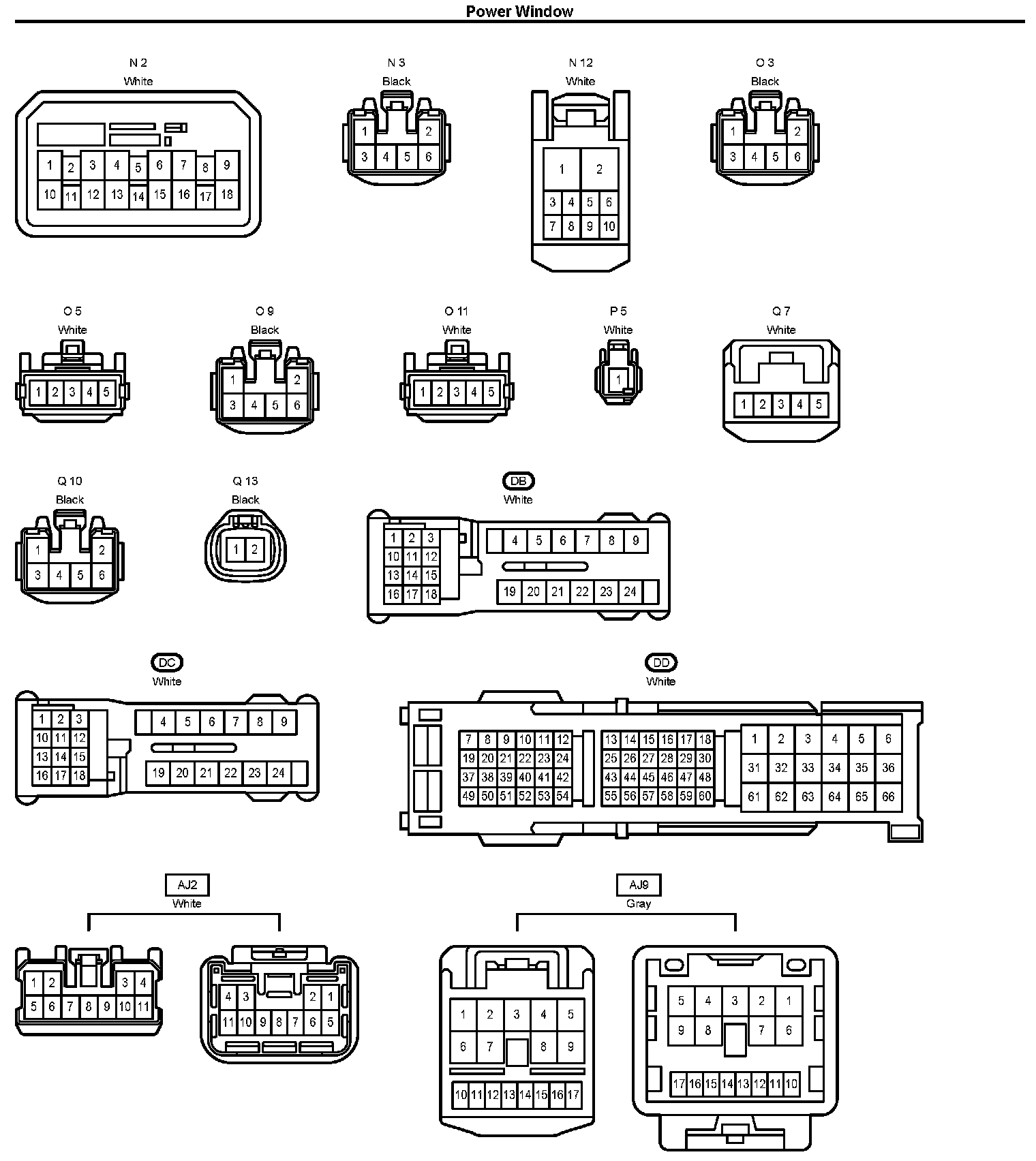

Connectors Part 2:

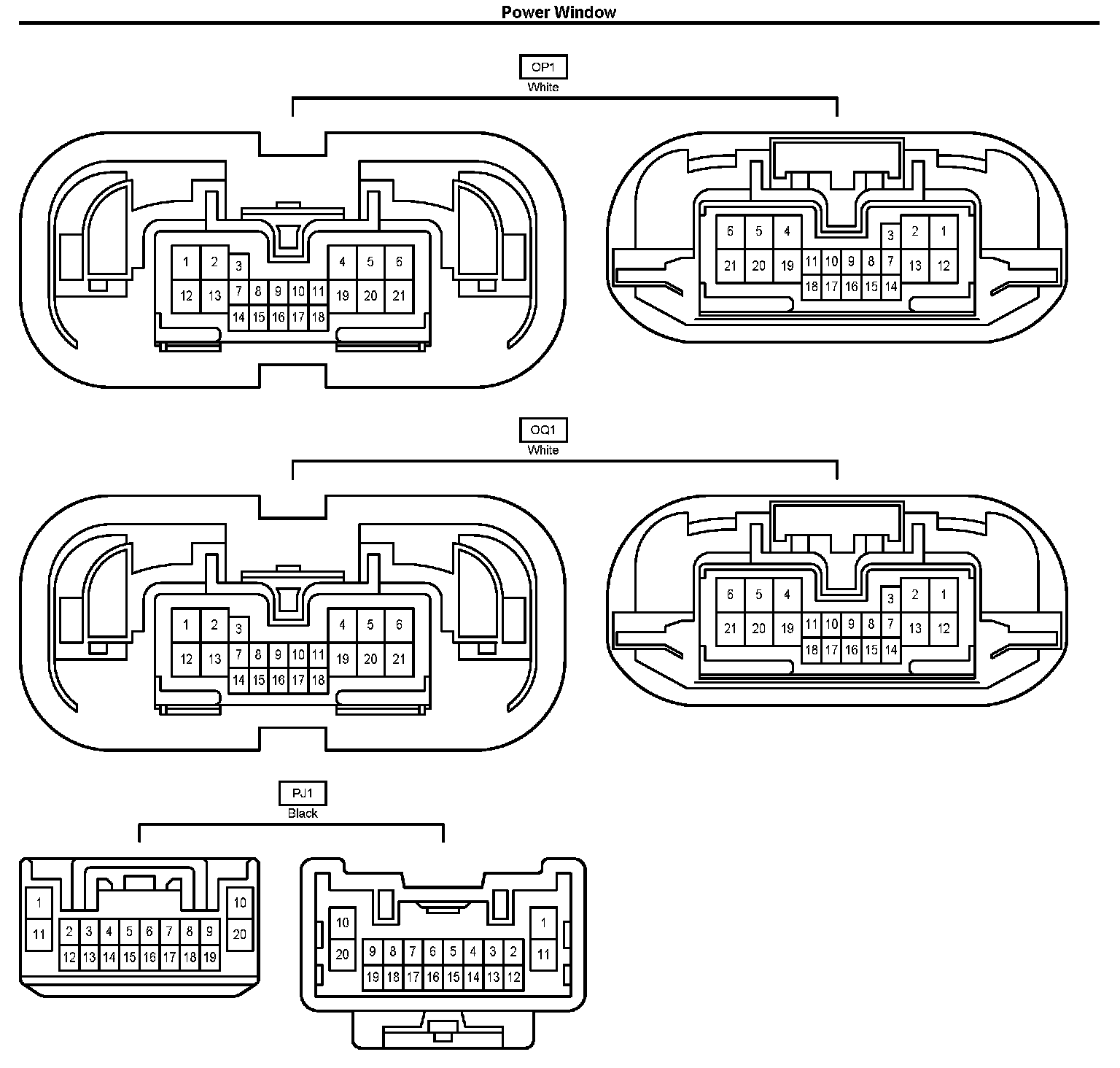

Connectors Part 3:




Connectors Part 4:






Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
