Relay
1AR-FE ENGINE CONTROL: RELAY: ON-VEHICLE INSPECTION 1.
INSPECT IG2 RELAY
(a)
Remove the IG2 relay from the relay block.
(b)

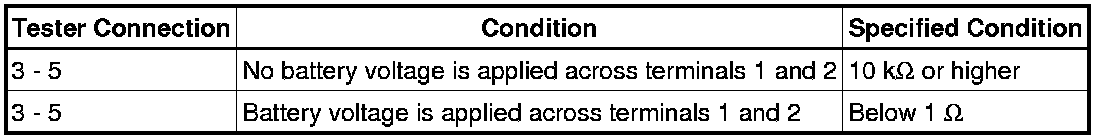

Measure the resistance according to the value(s) in the table below.
Standard Resistance: (c)
If the result is not as specified, replace the relay.
