Installation





U760F AUTOMATIC TRANSMISSION / TRANSAXLE: TCM: INSTALLATION

1. INSTALL TCM

(a) Install the TCM to the transaxle.

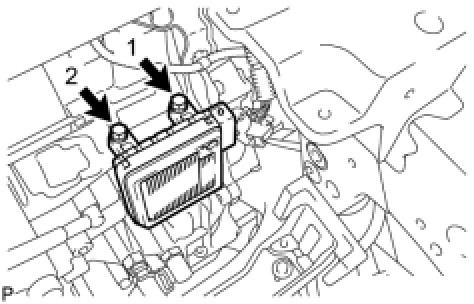

(b) Install and tighten the 2 bolts in the order shown in the illustration.





Torque : 11 Nm (115 kgf-cm, 8 ft-lbf)

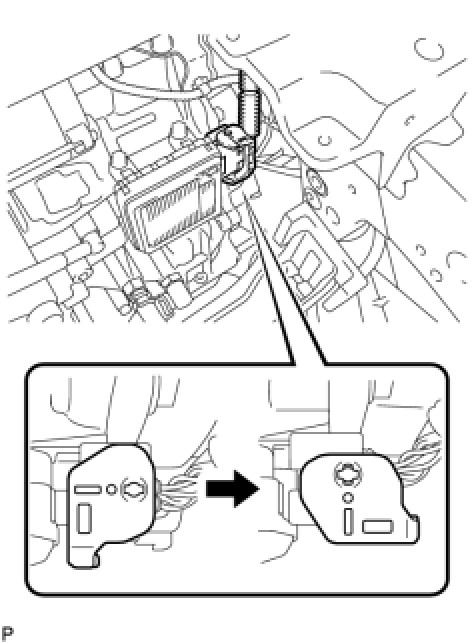

(c) Connect the connector to the TCM.





(d) Turn the lock lever and secure the connector with the lock lever.

2. INSTALL BATTERY Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

5. PERFORM TCM REGISTRATION

HINT
Registration.
