Installation





DOOR LOCK: TRANSMITTER BATTERY: INSTALLATION

1. INSTALL TRANSMITTER BATTERY

(a) Install the transmitter battery.

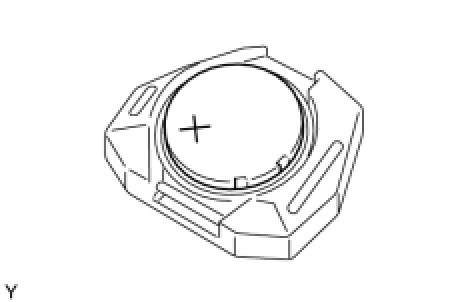

(1) Install a battery (lithium battery: CR2016) with the positive (+) side up, as shown in the illustration.

NOTICE:
* Make sure that the positive (+) side and the negative (-) side of the transmitter battery are correctly matched up with the transmitter terminals.
* Do not bend the transmitter battery electrode during insertion.
* Keep the transmitter cover interior free of dust and oil.

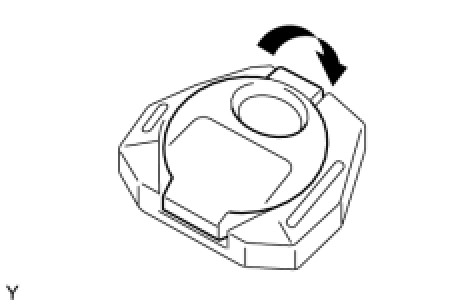

(2) Install the cover securely.





(3) Install the door control transmitter module into the transmitter housing case.





(4) Install the transmitter housing cover onto the transmitter housing case securely.





(5) After installation, press any of the transmitter switches. Check that the LED illuminates.
