Removal

DOOR LOCK: TRANSMITTER BATTERY: REMOVAL

1. REMOVE TRANSMITTER BATTERY

(a) Remove the transmitter battery.

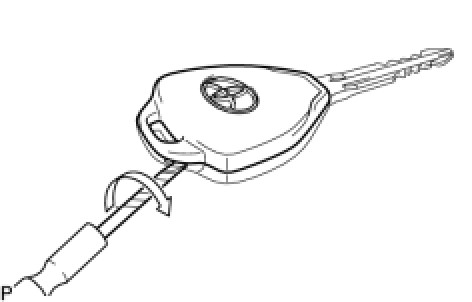

(1) Using a screwdriver with its tip wrapped in protective tape, pry apart the transmitter housing cover.

NOTICE:
Do not use excessive force when prying apart the housing cover.

(2) Remove the door control transmitter module from the transmitter housing case.

(3) Disengage the hook and remove the transmitter battery cover.

(4) Remove the battery (lithium battery: CR2016).

NOTICE:
* Do not push the terminals with your finger.
* Do not use excessive force when prying up the battery (lithium battery: CR2016) as this may damage the terminals.
* Do not touch the battery with wet hands. Water may cause rust.
* Do not touch or move any components inside the transmitter as this may interfere with its proper operation.
