Removal
DOOR LOCK: DOOR CONTROL TRANSMITTER: REMOVAL 1.
REMOVE DOOR CONTROL TRANSMITTER MODULE
(a)
Remove the door control transmitter module.
(1)

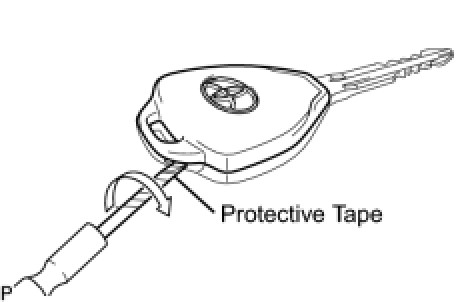

Using a screwdriver with its tip wrapped in protective tape, pry apart the transmitter housing cover.
NOTICE: Do not use excessive force when prying apart the housing cover. (2)

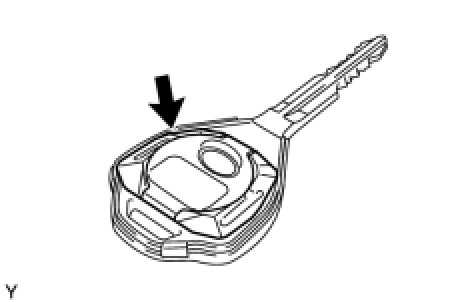

Remove the door control transmitter module from the transmitter housing case.
