Relay Box

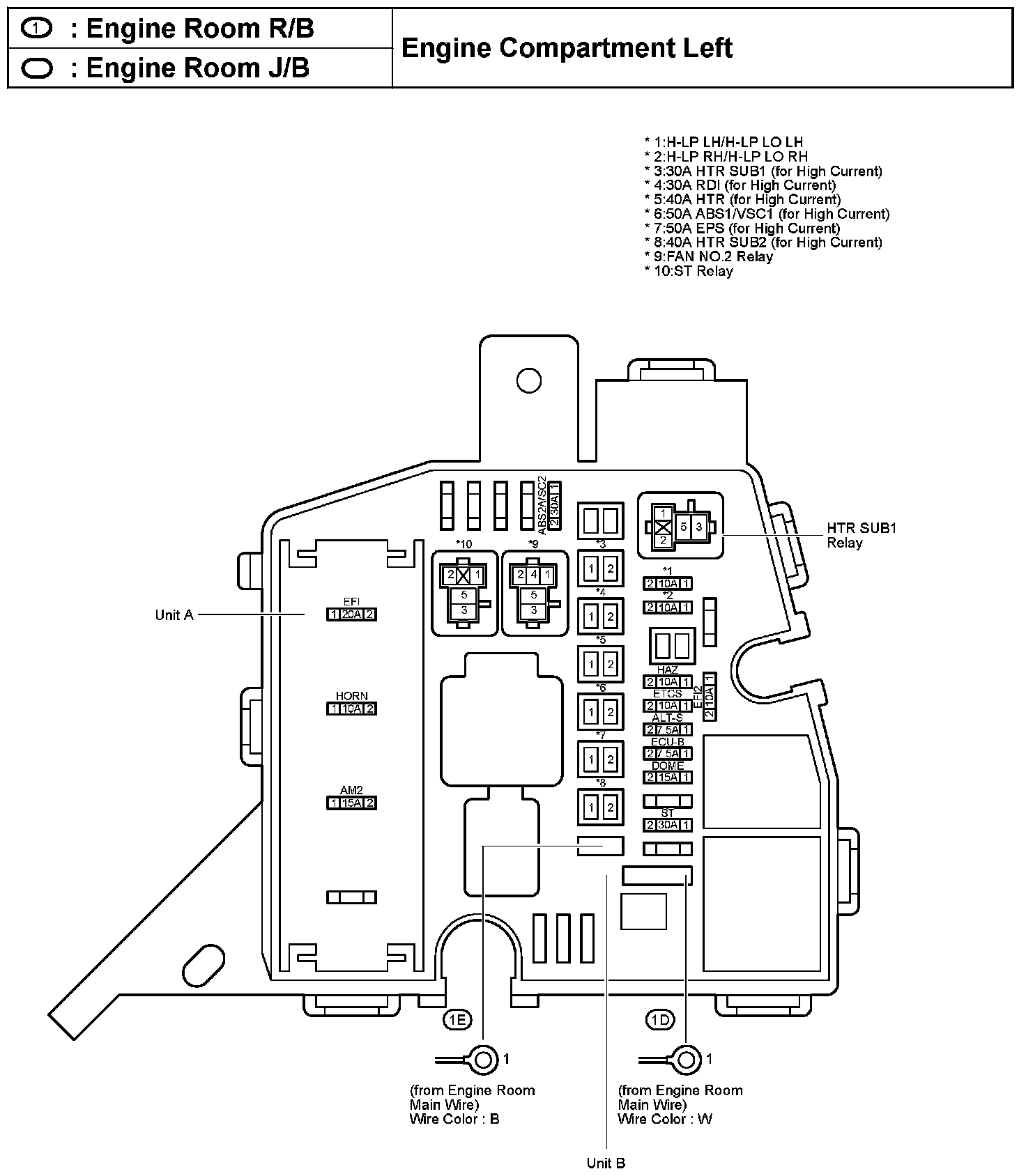

Engine Room R/B, J/B - Engine Compartment Left:

Engine Room R/B, J/B - Engine Compartment Left:

Instrument Panel J/B - Lower Finish Panel:

Instrument Panel J/B - Lower Finish Panel:

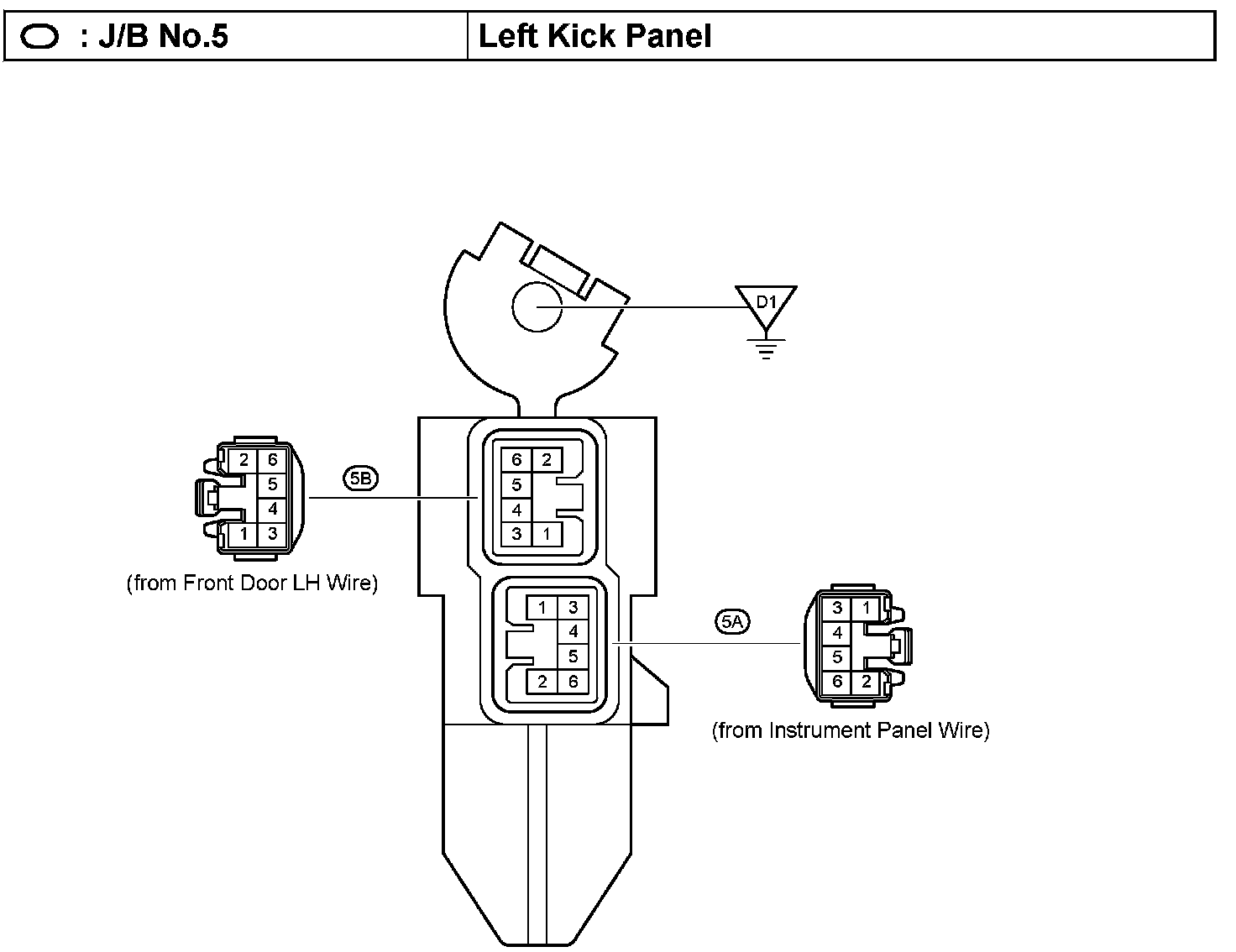

J/B No.5 - Left Kick Panel:

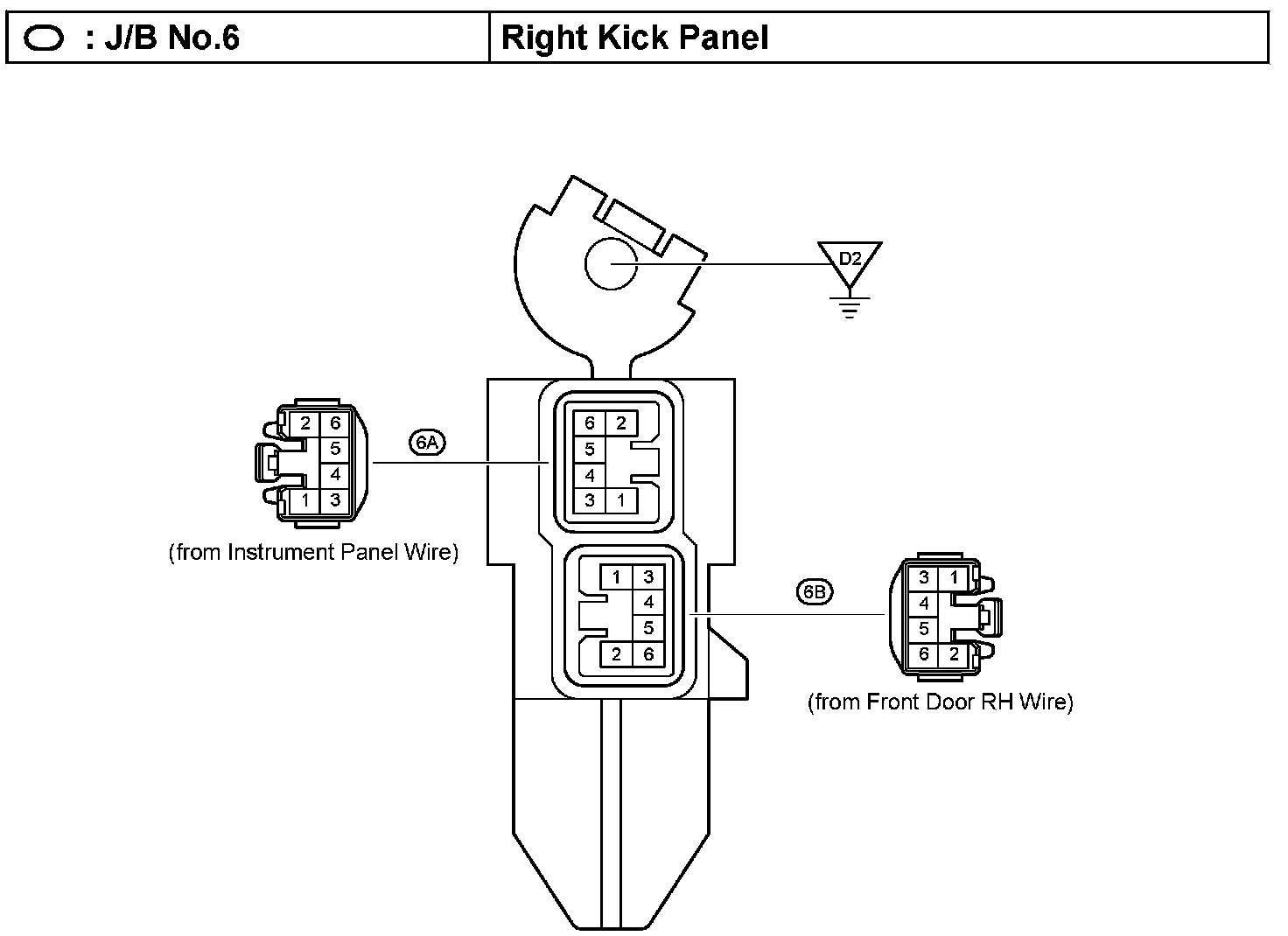

J/B No.6 - Right Kick Panel:

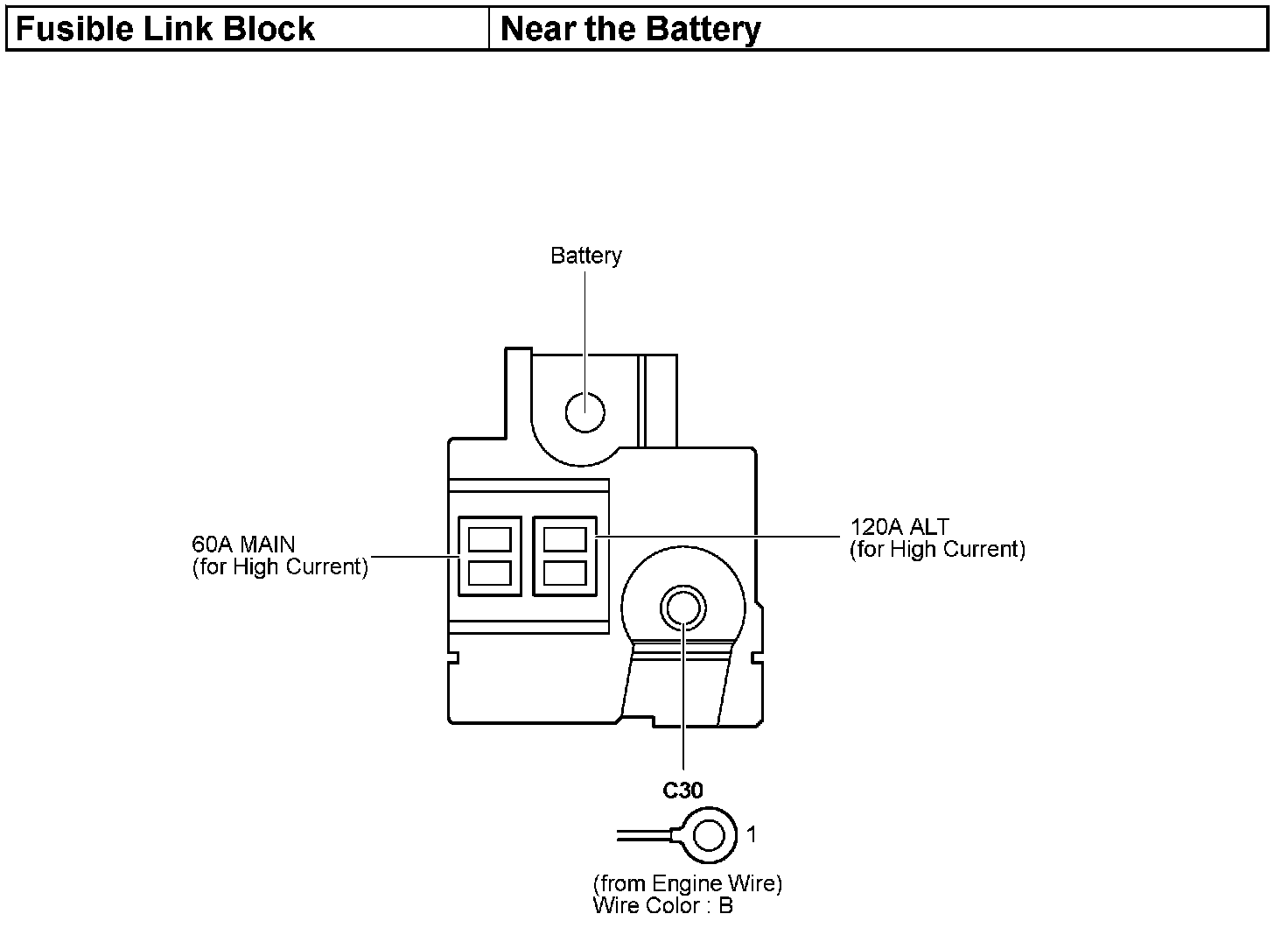

Fusible Link Block - Near The Battery:

Fusible Link Block - Near The Battery:

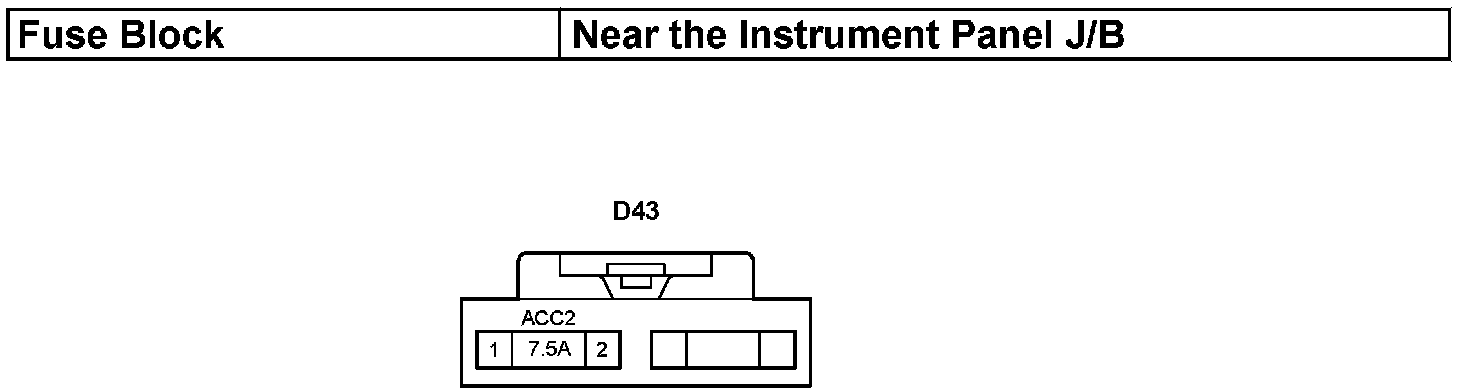

Fuse Block - Near The Instrument Panel J/B:
