Installation

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

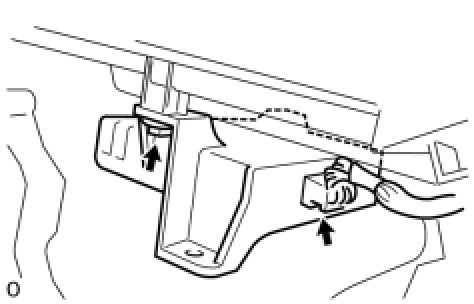

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY





(a) Connect the connector.

(b) Install the air conditioning amplifier with the screw.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
