Rear Wheel Alignment

SUSPENSION: REAR WHEEL ALIGNMENT: INSPECTION

1. INSPECT TIRES Inspection

2. MEASURE VEHICLE HEIGHT Service and Repair

3. INSPECT TOE-IN

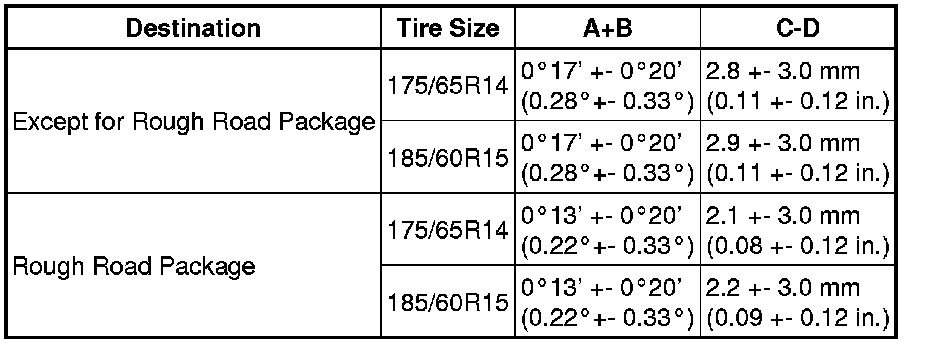

Toe-in:

Hatchback





Sedan





HINT
Only measure C-D when A+B can not be measured.

4. INSPECT CAMBER

(a) Install the camber-caster-kingpin gauge and position the rear wheel on the alignment tester.

(b) Inspect the camber.

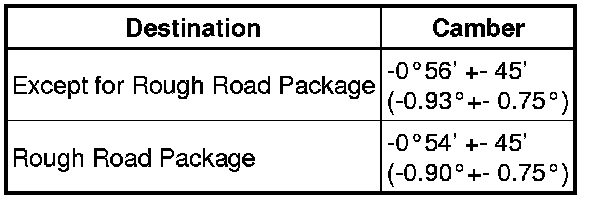

Camber:

Hatchback





Sedan





NOTICE:
The tolerance for the difference between the left and right wheels is 30' (0.5°) or less for both cambers.

(b) If the camber is not within the specified range, inspect the suspension parts and replace them if necessary.
