Replacement

1NZ-FE LUBRICATION: OIL FILTER: REPLACEMENT

CAUTION:
* Prolonged and repeated contact with engine oil will result in the removal of natural oils from the skin, leading to dryness, irritation and dermatitis. Used engine oil contains potentially harmful contaminants which may cause skin cancer.
* Take precautions when replacing engine oil to minimize the risk of your skin making contact with used engine oil. Wear protective clothing and gloves that cannot be penetrated by oil. Wash skin with soap and water, or use waterless hand cleaner, to remove any used engine oil completely. Do not use gasoline, thinner, or solvents.
* Dispose of used oil and used oil filters at designated disposal sites in order to preserve the environment.
1. DRAIN ENGINE OIL

(a) Remove the oil pan drain plug and drain the engine oil.

(b) Clean the oil pan drain plug and install it with a new gasket.

Torque : 38 Nm (382 kgf-cm, 28 ft-lbf)

2. REMOVE OIL FILTER SUB-ASSEMBLY

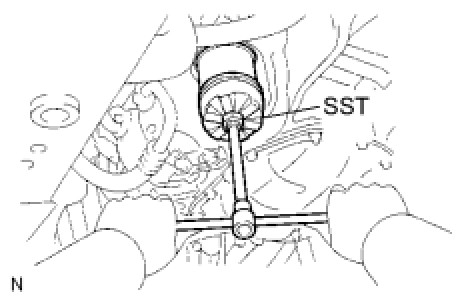

(a) Using SST, remove the oil filter.





SST : 09228-06501

3. INSTALL OIL FILTER SUB-ASSEMBLY

(a) Check and clean the oil filter installation surface.

(b) Apply clean engine oil to the gasket of a new oil filter.

(c) Gently screw the oil filter into place, then tighten it until the gasket comes into contact with the seat.





(d) Using SST, tighten the oil filter.

SST : 09228-06501

(1) Depending on the available workspace, choose from the following procedures.

If enough space is available, use a torque wrench to tighten the oil filter.

- Torque : 13 Nm (133 kgf-cm, 9.5 ft-lbf)

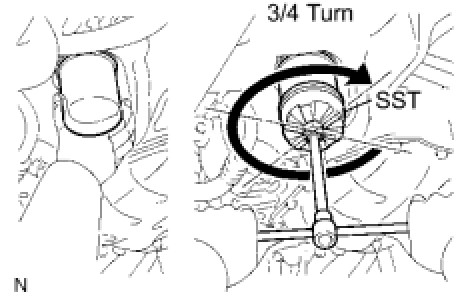

(1) If the available workspace is insufficient to use a torque wrench, tighten the oil filter a 3/4 turn by hand or use a common wrench.

4. ADD ENGINE OIL

(a) Fill with new engine oil.

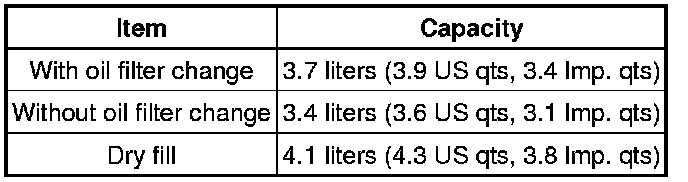

Oil capacity:





5. CHECK FOR ENGINE OIL LEAKS

6. CHECK ENGINE OIL LEVEL
