Removal

1NZ-FE ENGINE CONTROL SYSTEM: MASS AIR FLOW METER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE MASS AIR FLOW METER

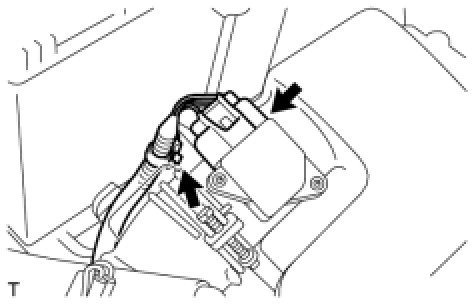

(a) Disconnect the wire harness clamp and mass air flow meter connector.

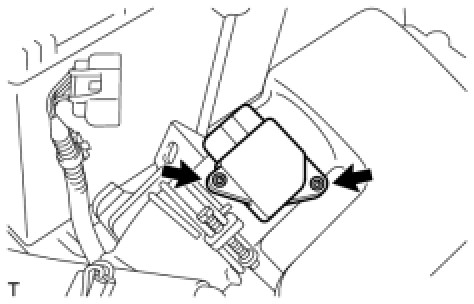

(b) Remove the 2 screws and the mass air flow meter.

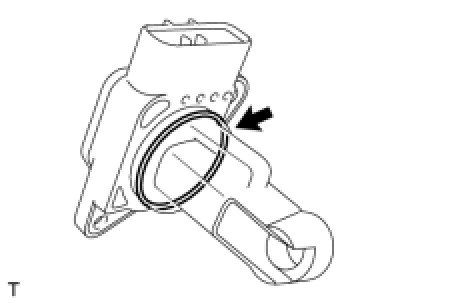

(c) Remove the O-ring from the mass air flow meter.
