Installation

1NZ-FE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CAMSHAFT POSITION SENSOR





(a) Apply a light coat of engine oil to the O-ring on the camshaft position sensor.

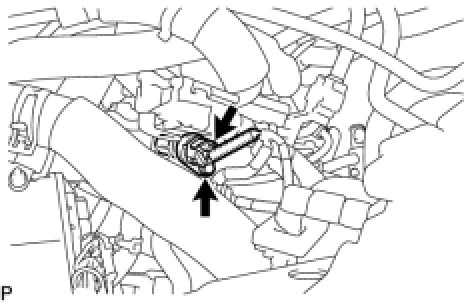

(b) Install the camshaft position sensor with the bolt.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

NOTICE:
Do not twist the O-ring.

(c) Connect the camshaft position sensor connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

3. CHECK FOR ENGINE OIL LEAKAGE
