Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2010
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Service and Repair
>>
Components
Components

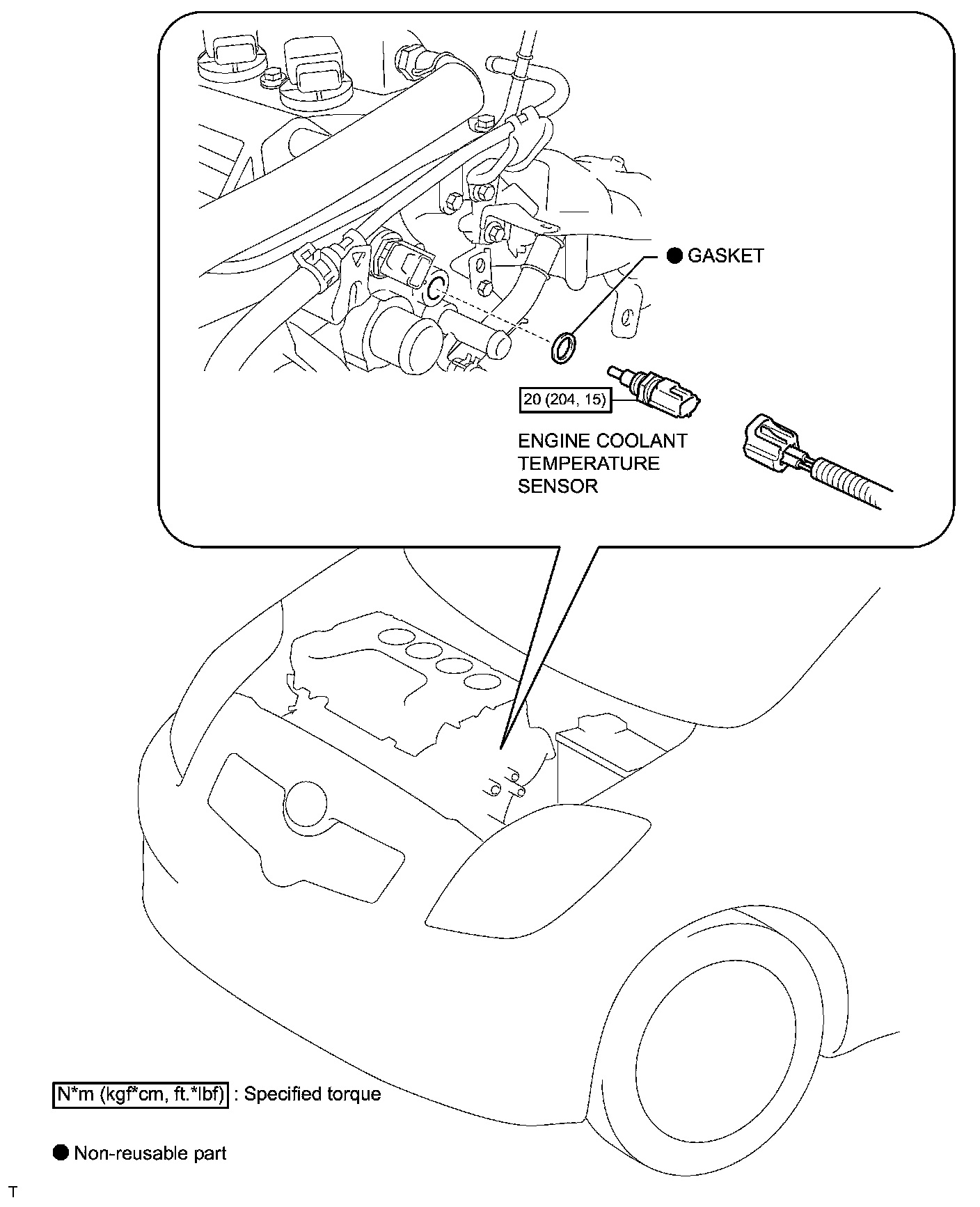

1NZ-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: COMPONENTS
