Main Relay (Computer/Fuel System): Testing and Inspection

1NZ-FE ENGINE CONTROL SYSTEM: INTEGRATION RELAY: INSPECTION

1. INSPECT INTEGRATION NO.1 RELAY

(a) Inspect the EFI fuse.

(1) Disconnect the fuse.

Text in Illustration:

(2) Measure the resistance of the fuse.

Standard Resistance:

(b) Inspect the EFI relay.

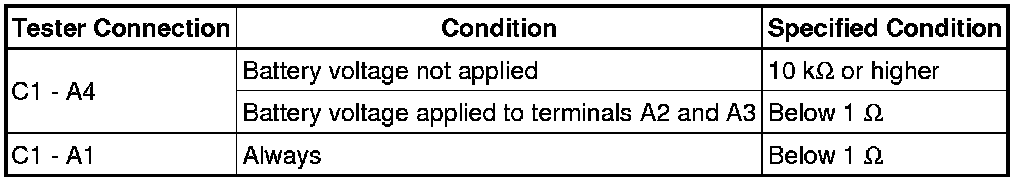

(1) Measure the resistance according to the value(s) in the table below.

Text in Illustration:

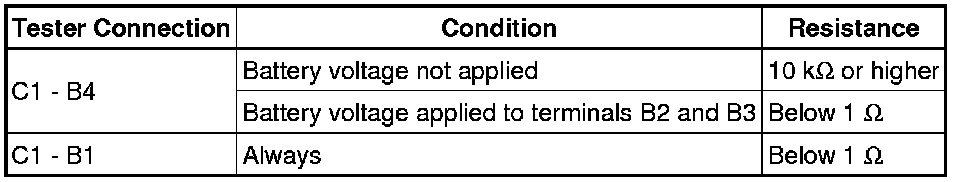

Standard Resistance:

NOTICE:
While using the battery for the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

(1) If the result is not as specified, replace the integration relay.

(c) Inspect the FAN NO.1 relay.

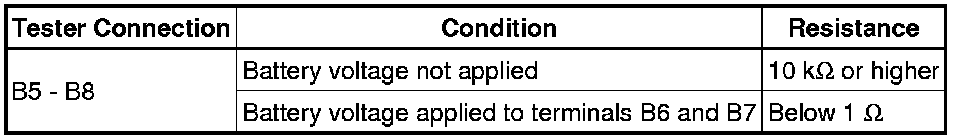

(1) Measure the resistance according to the value(s) in the table below.
