Specifications
>>
Electrical Specifications
Electrical Specifications

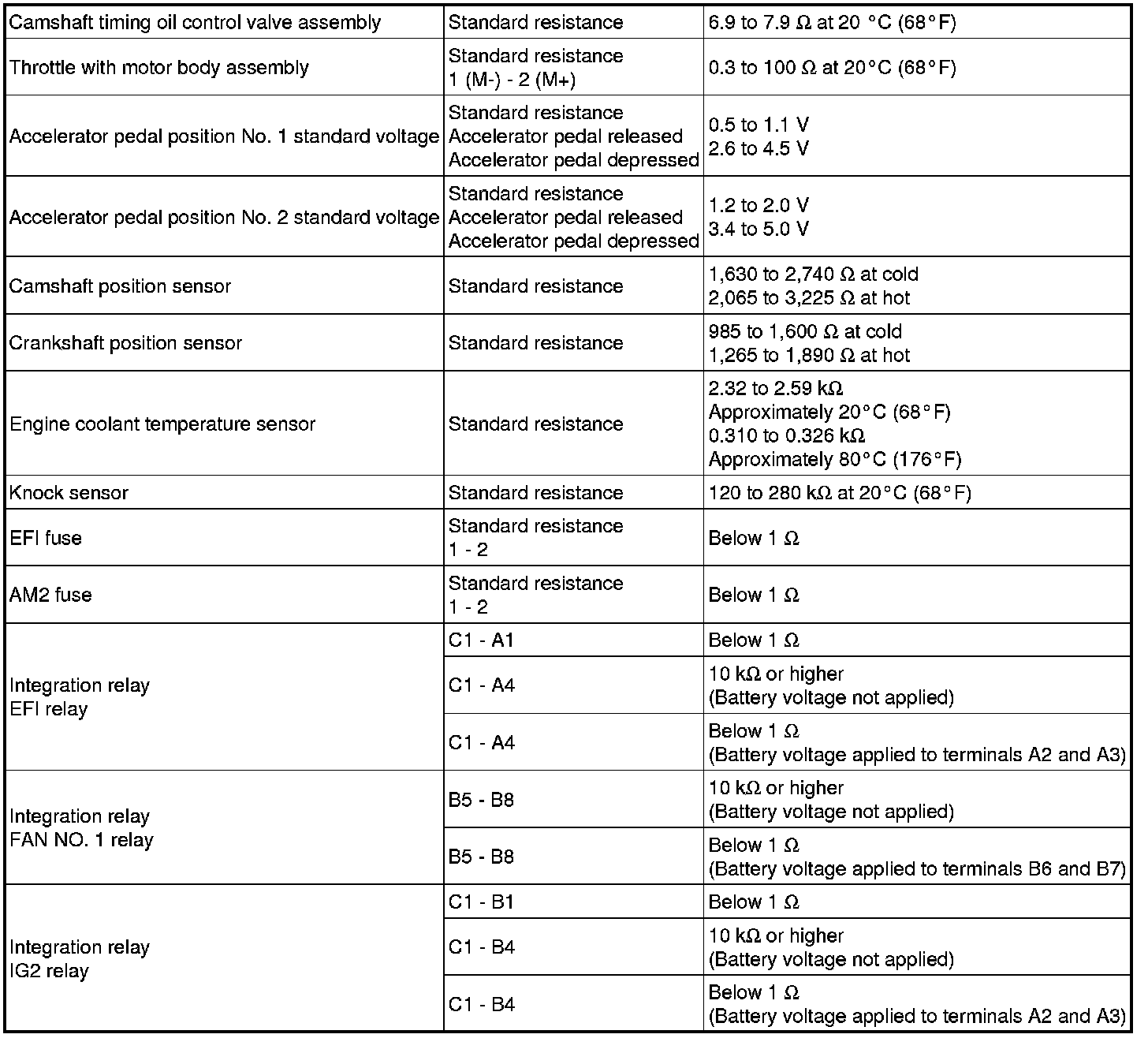

SERVICE SPECIFICATIONS: 1NZ-FE ENGINE CONTROL SYSTEM: SERVICE DATA
