1NZ-FE IGNITION: IGNITION COIL AND SPARK PLUG: REMOVAL 1.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2.
REMOVE CYLINDER HEAD COVER NO. 2
(a)

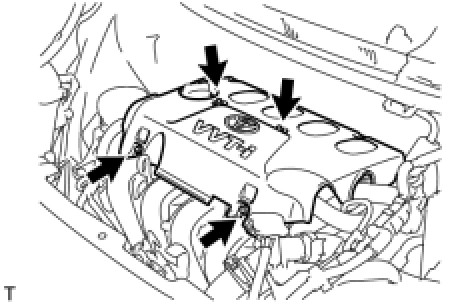

Remove the 4 nuts and cylinder head cover No. 2.
3.
REMOVE IGNITION COIL NO. 1
(a)
Disconnect the 4 ignition coil connectors.
(b)
Remove the 4 bolts and 4 ignition coils.
4.
REMOVE
SPARK PLUG (a)
Using a 14 mm
spark plug wrench, remove the 4 spark plugs.
