Instrument Panel

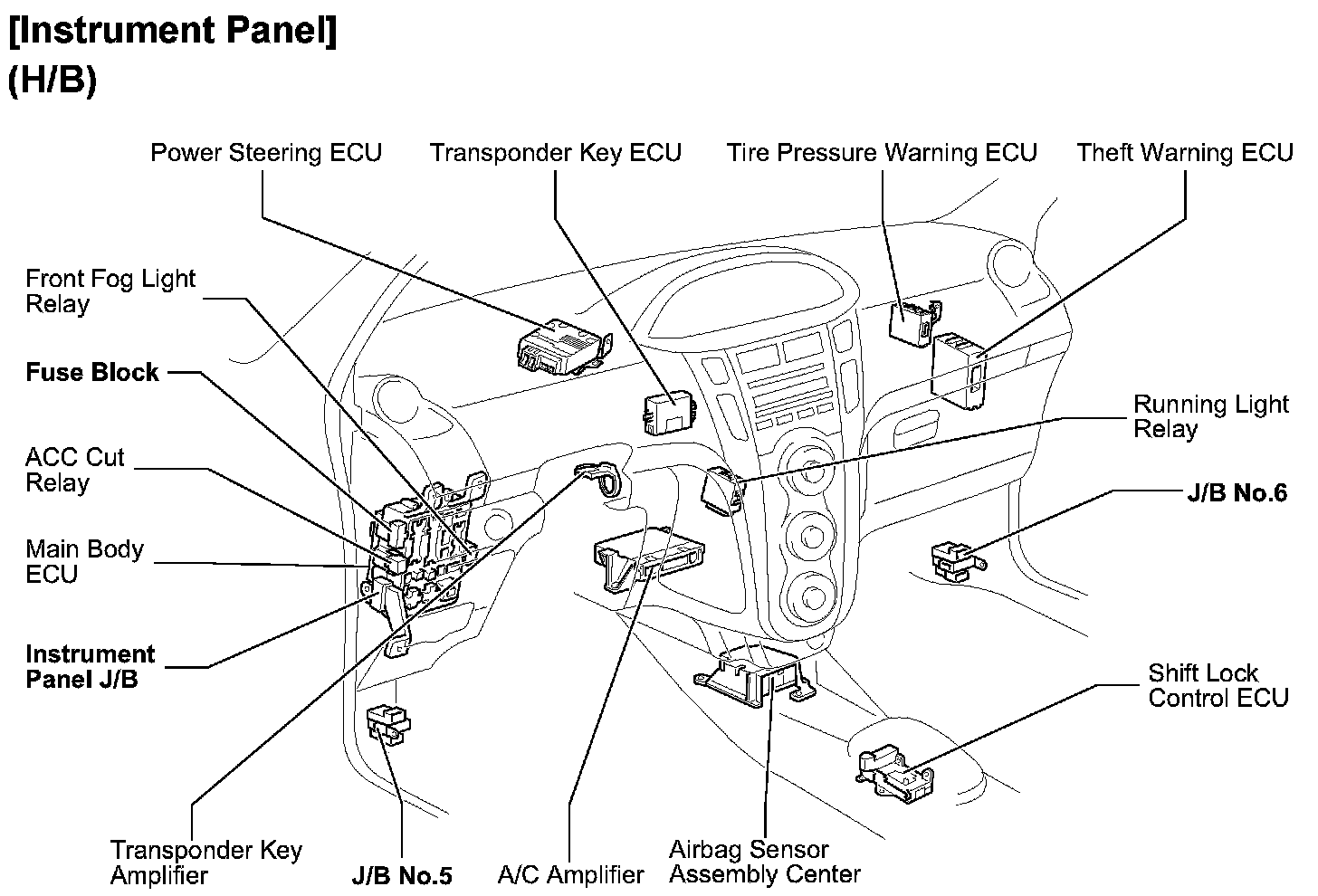

Instrument Panel (H/B):

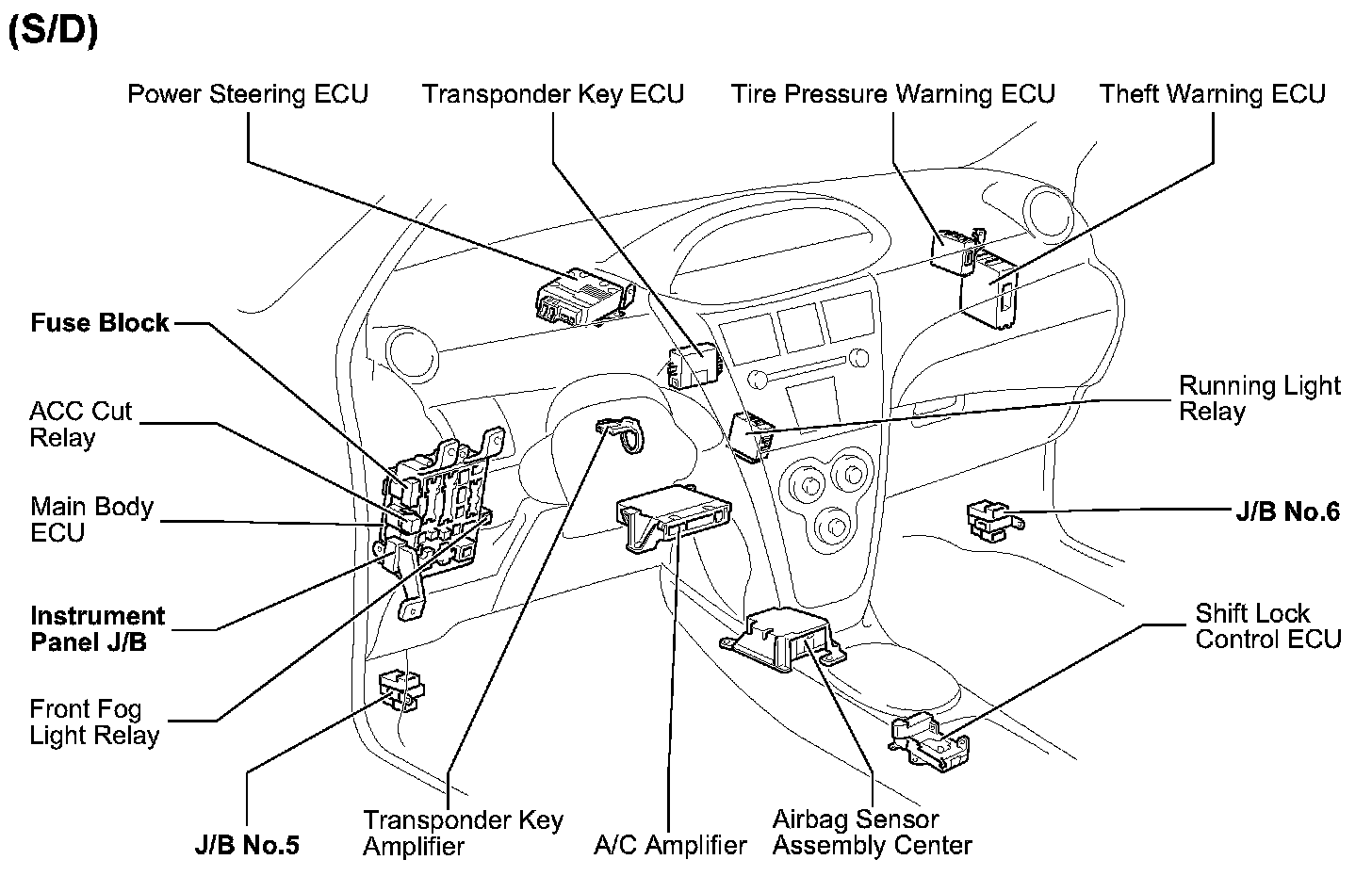

Instrument Panel (S/D):

Instrument Panel J/B - Lower Finish Panel:
