Service Data

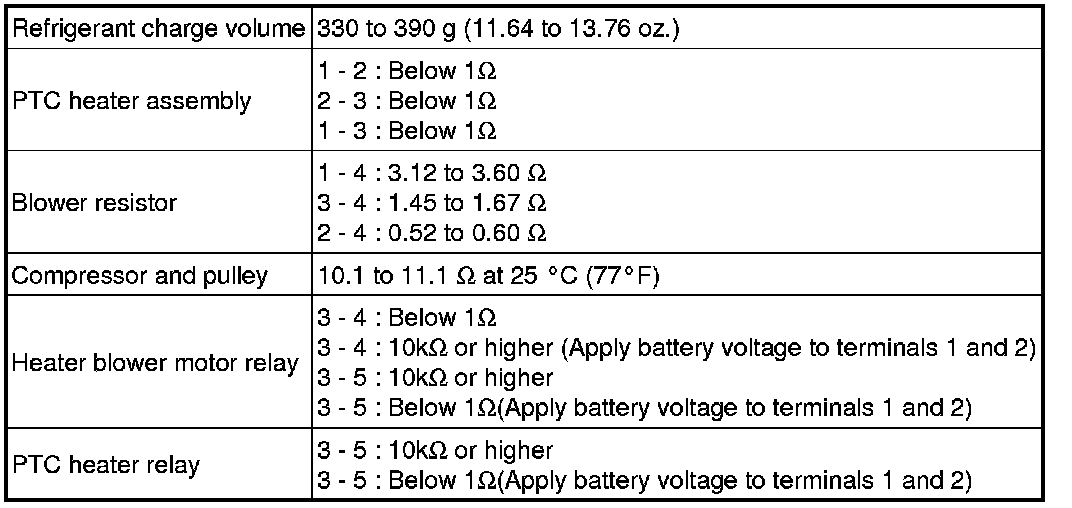

SERVICE SPECIFICATIONS: AIR CONDITIONING: SERVICE DATA

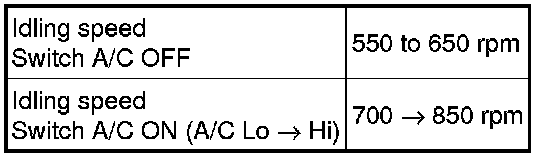

for Manual transaxle:

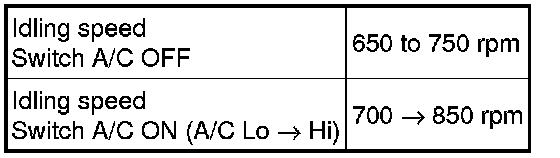

for Automatic transaxle:
