Alignment
Alignment
SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

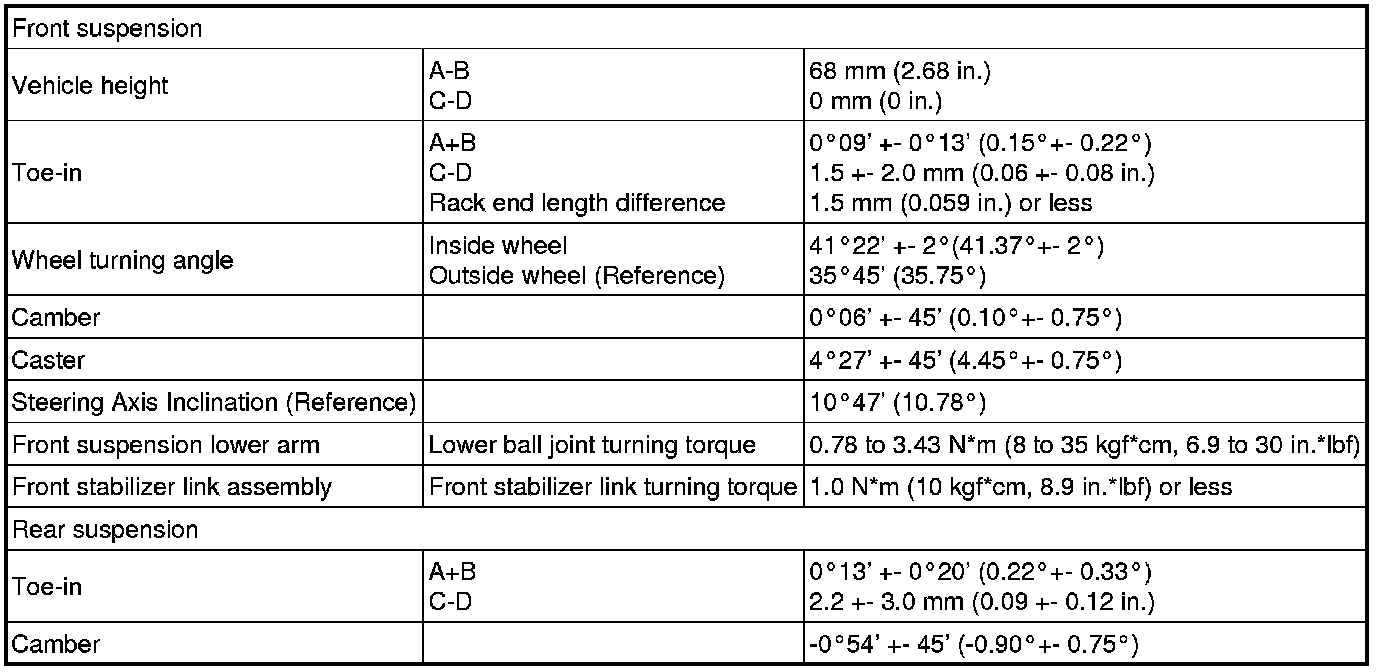

Hatchback (Except Rough Road Package):

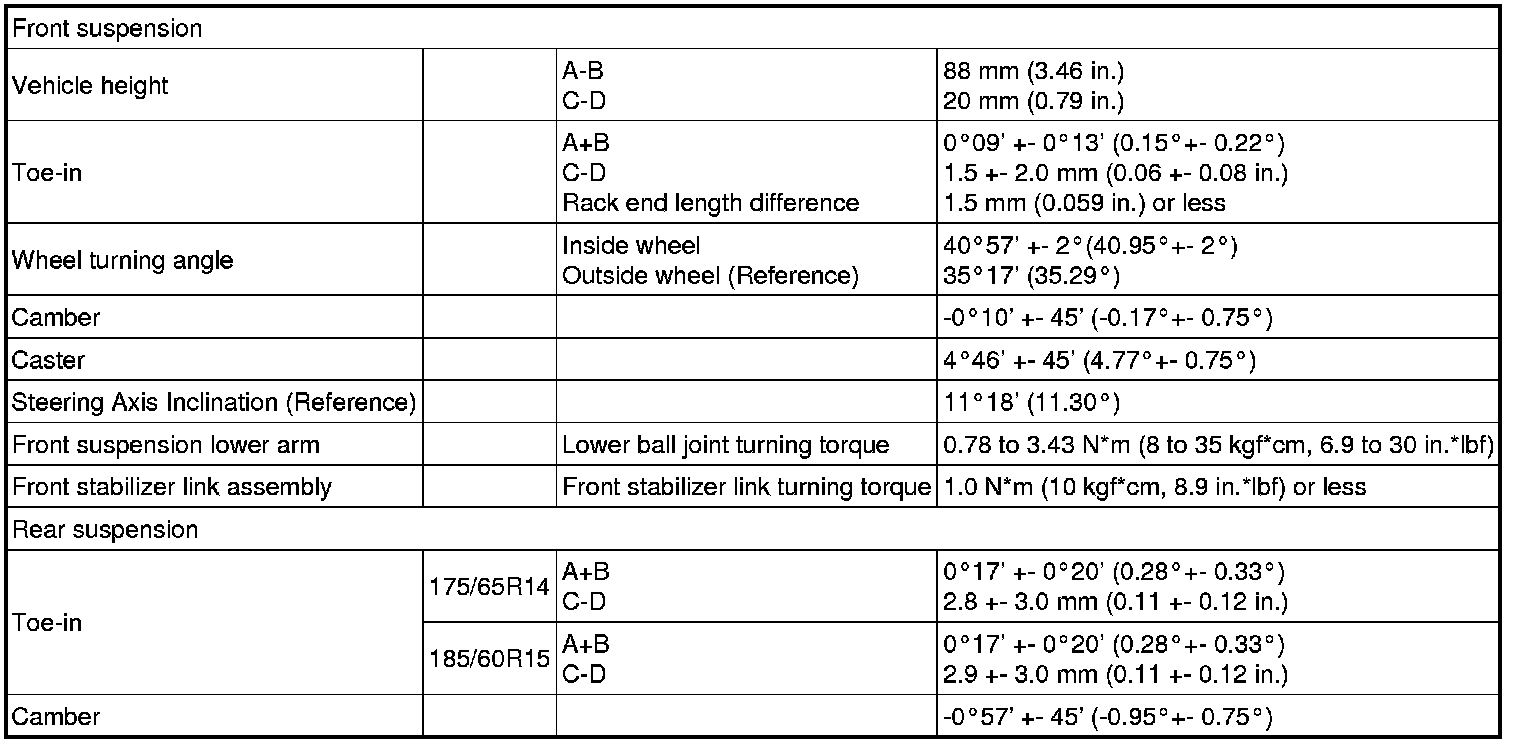

Hatchback (Rough Road Package):

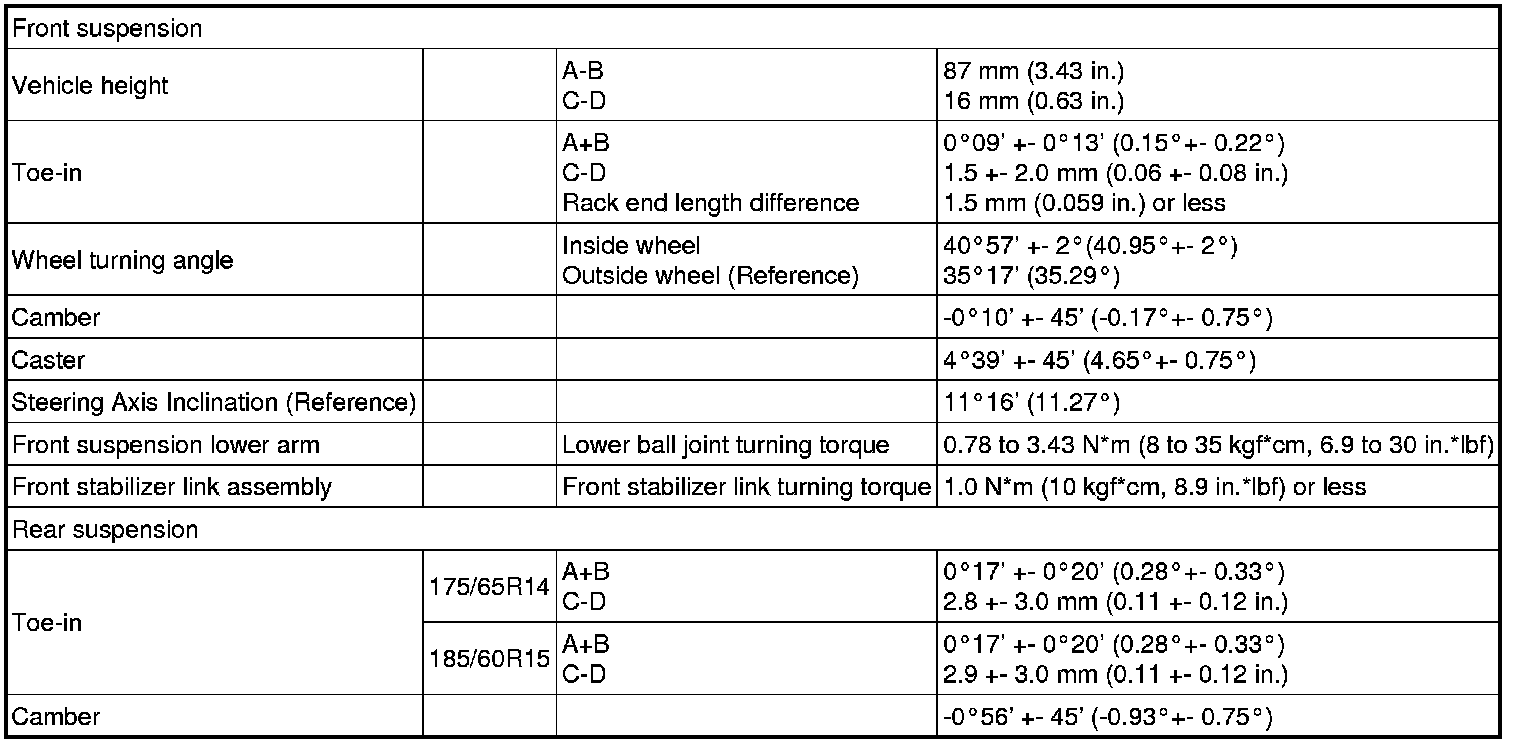

Sedan (Except Rough Road Package):
Sedan (Rough Road Package):
