Spark Plug
Spark Plug

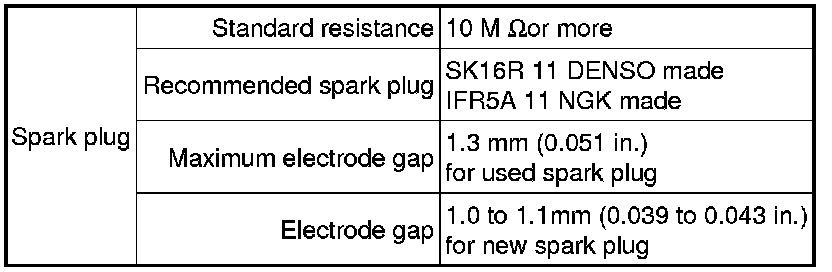

SPARK PLUG
Gap
Torque
Using a 14 mm
spark plug
wrench, install the 4 spark plugs.
Torque
18 N.m (184 kgf.cm, 13 ft.lbf)
