Repair and Diagnosis: Testing and Inspection
INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS
HINT
The following can be customized.
NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

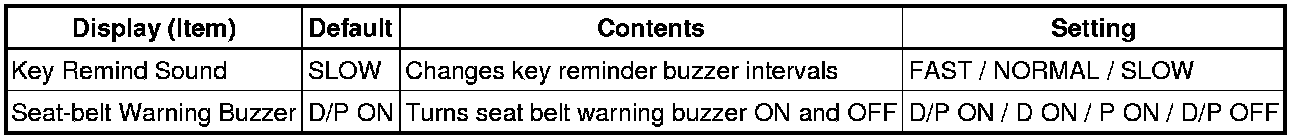

1. SEAT BELT WARNING SYSTEM
Combination Meter Assembly:

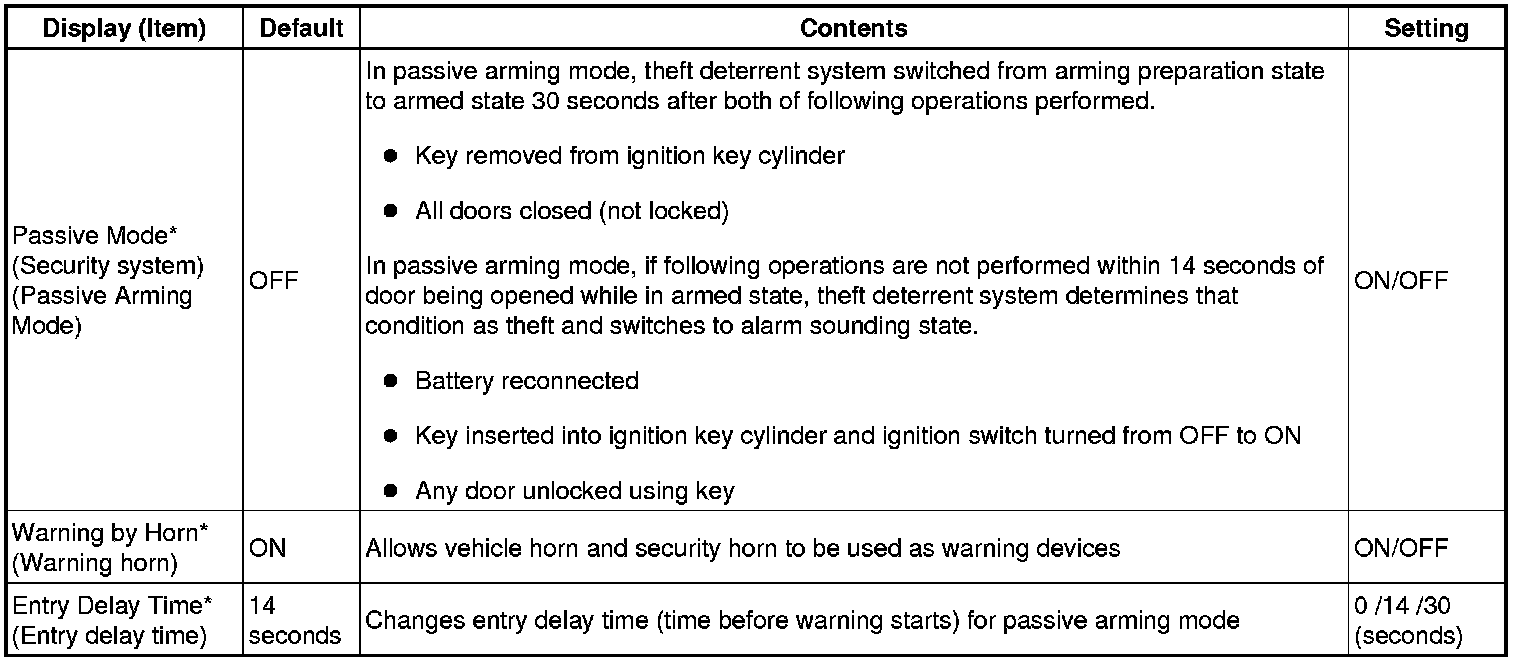

2. THEFT DETERRENT SYSTEM
Theft Deterrent System:
*: Sedan
3. LIGHTING SYSTEM
Main Body (Main Body ECU):
HINT
Sensitivity adjustments are difficult to confirm. Check by driving the customer's vehicle.

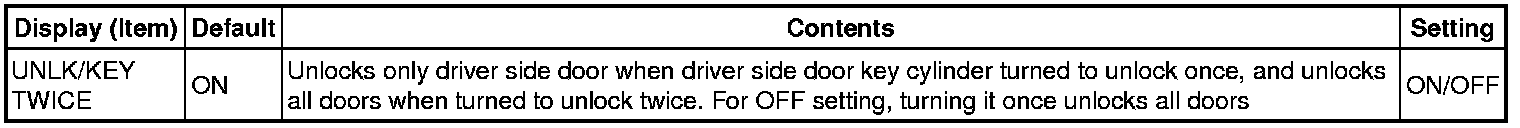

4. POWER DOOR LOCK CONTROL SYSTEM
Main Body:

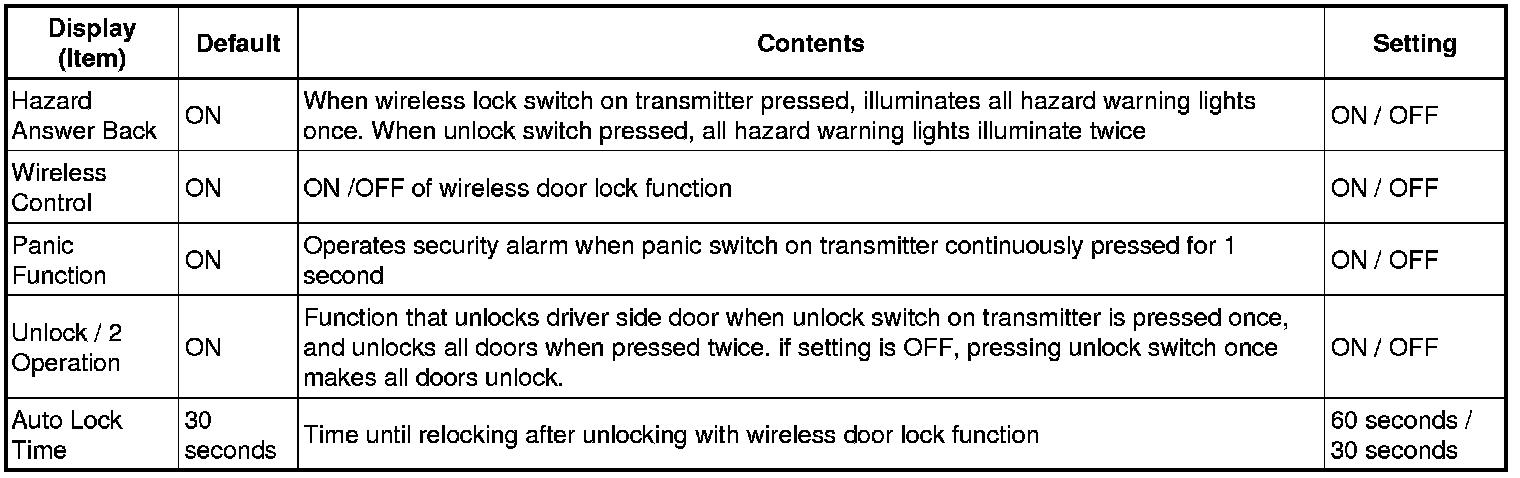

5. WIRELESS DOOR LOCK CONTROL SYSTEM
Main Body:
6. METER / GAUGE SYSTEM
Warning:
