Removal

2TR-FE ENGINE CONTROL: CAMSHAFT POSITION SENSOR: REMOVAL

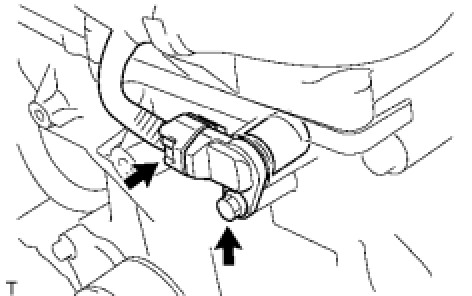

1. REMOVE CAMSHAFT POSITION SENSOR





(a) Disconnect the camshaft position sensor connector.

(b) Remove the bolt and camshaft position sensor.
