System Specifications





SPECIFICATIONS: AUDIO / VIDEO: SERVICE DATA

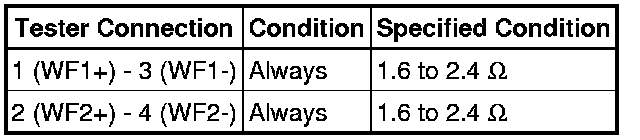

Luggage Speaker






Front Door Speaker






Rear Door Speaker






Back Door Speaker

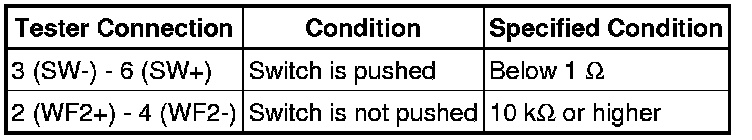

Woofer Speaker Switch
